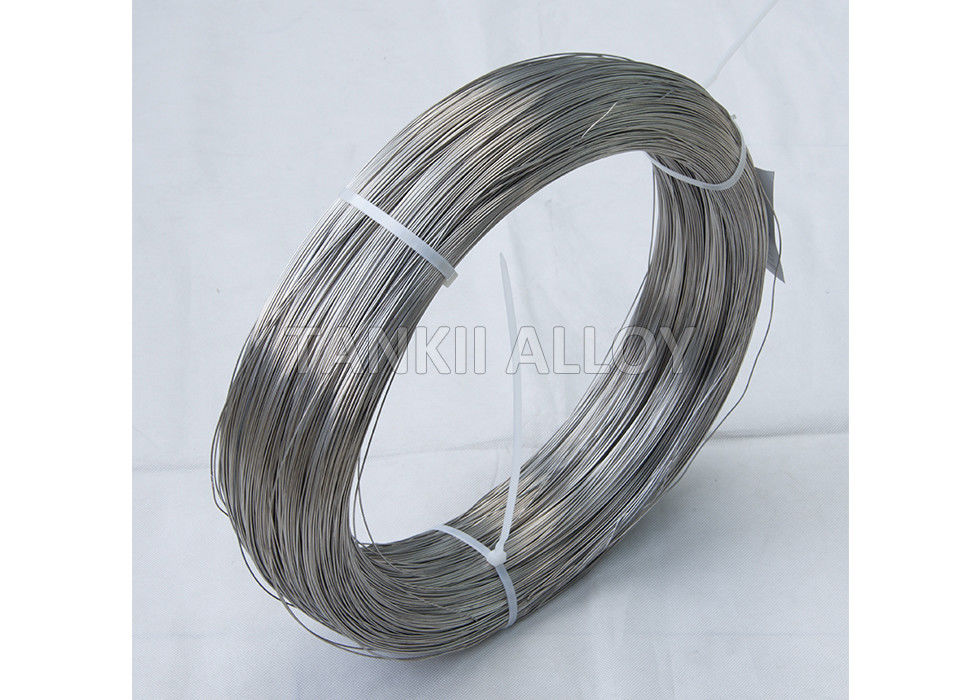

Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001

Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001
Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001 Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001 Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001 Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001

Large Image :  Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: Chromel Alumel
Payment & Shipping Terms:
Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001

Description
Material: Chromel Alumel Surface: Oxidized
Diameter: 1.29mm Wire Type: Solid Wire
Wire Class: IEC 60584 Class I Leading Time: 5~20 Days As Per The Order Qty
High Light:

thermocouple lead wire

,

high temperature thermocouple wire



IEC Standard Class One 1.29mm KP KN Thermocouple Wire With Oxidized Surface



Quick Description



A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.


Tankii Brand NiCr-NiSi (Type K) thermocouple finds the widest use in all basemetal thermocouple, at temperature above 500 °C.

Tankii Brand Type K thermocouple has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:

(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.




IEC Standard Class One 1.29mm KP KN Thermocouple Wire With Oxidized Surface



Characteristics:

Tankii Brand thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.



Our products conform to the standards of IEC584 -1and IEC-2.


Thermocouple strips, thermocouple connectors are available.

IEC Standard Class One 1.29mm KP KN Thermocouple Wire With Oxidized Surface

Application Range of thermocouple wire:

1. Aerospace and Composites
2. Aluminum industry
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel industry
10. Utilities Power Generation

IEC Standard Class One 1.29mm KP KN Thermocouple Wire With Oxidized Surface
Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001 0

Tankii Brand Thermocouple Type and Temperature Range

Thermocouple type and index



Measurement Range

Type



Index





PtRh30-PtRh6

B 600~1700



PtRh13-Pt

R 0~1600



PtRh10-Pt

S 0~1600



NiCr-NiSi

K -200~1300



NiCr-CuNi (constantan)

E -200~900



Fe-CuNi (constantan)

J -40~750



Cu-CuNi (constantan)

T -200~350



NiCrSi-NiSi

N -200~1300


The allowable grade and Tolerance are obtained at 0℃

Thermocouple

Type

Grade

Temperature range

Allowable Tolerance /℃
Type B 600~1700 ±0.25% t
600~800 ±4
800~1700 ±0.5%t
Type R(S) 0~1100 ±1
1100~1600 ±[1+(t-1100) ×0.3%]
0~600 ±1.5
600~1600 ±0.25% t
Type K and Type N -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type E -40~1100 ±1.5℃ or ±0.4%t
-40~1300 ±2.5℃ or ±0.75%t
-200~40 ±2.5℃ or ±1.5%t
Type J -40~750 ±1.5℃ or ±0.4%t
-40~750 ±2.5℃ or ±0.75%t
Type T -40~350 ±0.5℃ or ±0.4%t
-40~350 ±1.0℃ or ±0.75%t
-200~40 ±1.0℃ or ±1.5%t







 Tankii Delivery and Packing of thermocouple wire:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 20 days, as the order quantity of thermocouple wire.

3. Delivery: By express, air, sea as per thermocouple wire qty

Class One 1.29mm KP KN Thermocouple Wire Solid Wire IEC Standard ISO9001 1


Welcome to call me or email to me for more information on thermocouple wire.
