Product Details:
|
| Grade: | 6J13 | Density: | 8.4g/cm3 |
|---|---|---|---|
| Elongation: | >15% | Resistivity At 20C: | 44μΩ/cm |
| Key Word: | Manganin Strip | ||
| High Light: | precision tubing,kovar alloy |
||
Characteristics of manganin products:
1. A very small temperature coefficient of resistance,
2. Low identical electromotive force,
3. With the special excellent resistance stability.
Application range of manganin products:
In the electrical and instrument measuring technology as well as the benchmark unit with a resistor is widely used.
Manganese copper alloy has good welding performance and machining performance, can form the fine silk, rolling piece,
foil, but poor corrosion resistance and oxidation resistance.
Strip specification range
Thickness: 0.01-7 (mm) width: 5-300 (mm)

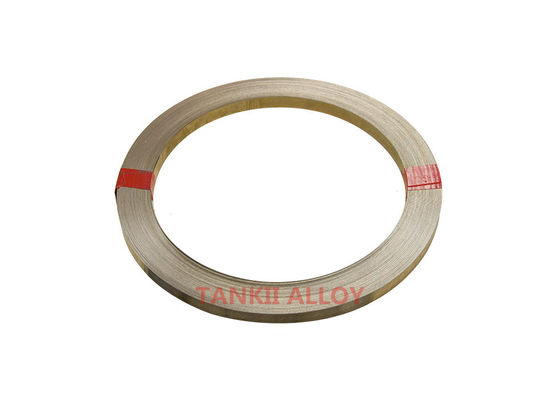

0.3mm*10mm Manganin Strip With Bright Surface Used For Ammeter Shunts
2. Main chemical composition :
| Alloy type | Cu | Mn | Ni |
| 6J8 | rest | 8-10 | / |
| 6J12 | rest | 11-13 | 2-3 |
| 6J13 | rest | 11-13 | 2-5 |
3. Related parements of Manganin material:
| Item | 6J8 | 6J12 | 6J13 |
| Resistivity | 0.35±0.05 | 0.47±0.03 | 0.44±0.04 |
| TCRx10-6/°c | -5~+10 | -10~+20 | 0~40 |
| EMF V S Cu(0-100°c)uv/°c | ≤2 | ≤1 | ≤2 |
| Density(g/cm3) | 8.7 | 8.4 | 8.4 |
| Melting point (°c) | 960 | 960 | 960 |
| Tensile strength(MPa) | 490--539 | 490--539 | 490--539 |
| Elongation(%) | 10-30 | 10-30 | 10-30 |
| Service temperature(°c) | 10-80 | 5-45 | 10-80 |
4. Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
3. Products and services
5. Why pick us?
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
Please contact us if there is any inquiry on manganin products.
