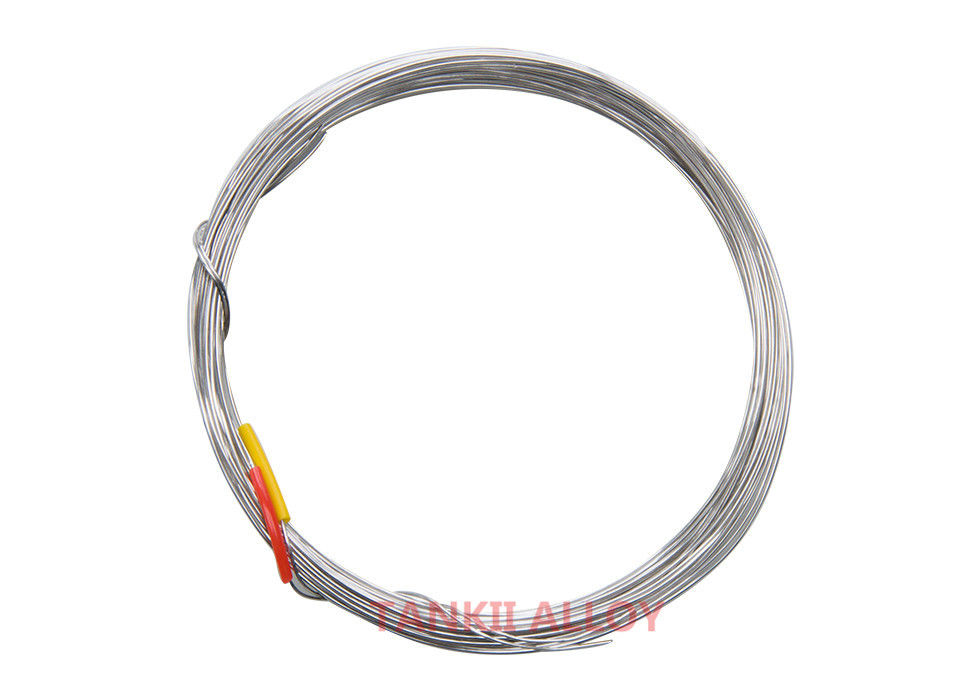

S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm

S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm
S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm

Large Image :  S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: B / R / S
Payment & Shipping Terms:
Minimum Order Quantity: 5 Meters
Price: Negotiation
Packaging Details: As the order quantity and customer requirement.
Delivery Time: 5 days
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm

Description
Material: Pt-Rh Surface: Bright
Diameter: 0.1mm-5.0mm Grade: I/II
Item: PT And PT90+RH10 Couple Wire Dia 0.25mm Used For S Type Thermocouple
High Light:

high temperature thermocouple wire

,

thermocouple lead wire

PT And PT90+RH10 Couple Wire Dia 0.25mm Used for S type Thermocouple



Characteristics:

●Excellent thermoelectricity, excellent linear relationship between thermoelectrical potential and the temperature.

●Excellent thermoelectrical stability, high accuracy.

Platinum Rhodium Alloy S Type B Type R Type Thermocouple Wire 0.1mm 0.35mm 0.5mm With First Class



Quick Description



What is thermocouple wire?

Thermocouple wire allows temperatures to be measured electronically.



A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.



The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.



Our products conform to the standards of IEC584 -1and IEC-2.

Please contact me if there is inquiry on thermocouple wire or cable.



Characteristics:

●Excellent thermoelectricity, excellent linear relationship between thermoelectrical potential and the temperature.

●Excellent thermoelectrical stability, high accuracy.

Application Range:

1. Heating – Gas burners for ovens
2. Cooling – Freezers
3. Engine protection – Temperatures and surface temperatures
4. High temperature control – Iron casting

Thermocouple Types and Temperature Range


Thermocouple type and index



Measurement Range

Type



Index





PtRh30-PtRh6

B 600~1700



PtRh13-Pt

R 0~1600



PtRh10-Pt

S 0~1600



NiCr-NiSi

K -200~1300



NiCr-CuNi (constantan)

E -200~900



Fe-CuNi (constantan)

J -40~750



Cu-CuNi (constantan)

T -200~350



NiCrSi-NiSi

N -200~1300


 Delivery and Packing:

1. Packaging Details : 500m/1000m per roll with plastic film wrapped and carton package.

2. Leading time : 5 - 7days, as the order quantity.

3. Delivery: By sea or air

Application:
S Type Thermocouple Bare Wire PT And PT90+RH10 Couple Wire Dia 0.25mm 0
