Product Details
Place of Origin: SHANGHAI
Brand Name: Tankii
Certification: SGS,ROHS
Model Number: C17200 QBe2
Payment & Shipping Terms
Minimum Order Quantity: 50
Price: usd + 24.7 + kg
Packaging Details: Wooden case
Delivery Time: 10-15 day
Payment Terms: L/C, T/T
Supply Ability: 50 + Ton + Month
Density: |
8.36 G/cm3 |
Elastic Modulus: |
13.4 Kg/mm2 (103) |
Thermal Expansion Coefficient: |
17 X 10-6 |
Melting Range: |
870-980 °C |
Density: |
8.36 G/cm3 |
Elastic Modulus: |
13.4 Kg/mm2 (103) |
Thermal Expansion Coefficient: |
17 X 10-6 |
Melting Range: |
870-980 °C |

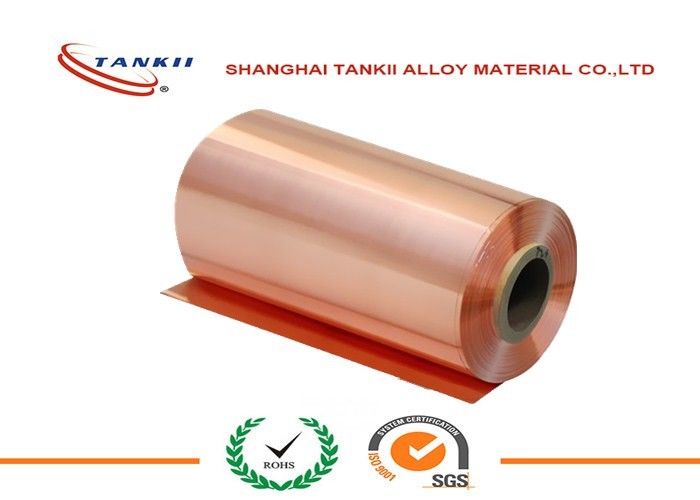

C17200 TM06 Aging hardening treatment Beryllium Copper Strip,0.1*250mm 340HV hardness Beryllium Copper Strip QBe2
copper beryllium manufacturer
Unusual wear resistance
High property levels
High yield strength
High hardness values
C17200/ C17500 copper beryllium manufacturer
Beryllium Copper Chemical Composition
ASTM | Cu | Ni | Co | Be |
C17200 | Balance | 1 | 1 | 1.80-2.10 |
C17000 | Balance | 1 | 1 | 1.60-1.85 |
C17300 | Balance | 1 | 1 | 1.85-2.10 |
ASTM | Cu | Ni | Co | Be |
C17500 | Balance | - | 2.4-2.7 | 0.4-0.7 |
C17510 | Balance | 1.4-2.2 | 0.3 | 0.2-0.6 |
beryllium copper C17200
Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition
Element | Component |
Be | 1.85-2.10% |
Co+Ni | 0.20% Min |
Co+Ni+Fe | 0.60% Max. |
Cu | Balance |
Typical Physical Properties
Density (g/cm3) | 8.36 |
Density before age hardening (g/cm3 | 8.25 |
Elastic Modulus (kg/mm2 (103)) | 13.40 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)) | 0.25 |
Melting Range (°C) | 870-980 |
Mechanical property (Before Hardening treatment) :
status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity ( IACS%) |
Elongation (%) |
H | 70-85 | 210-240 | 22 | 2-8 |
1/2H | 60-71 | 160-210 | 22 | 5-25 |
0 | 42-55 | 90-160 | 22 | 35-70 |
After Hardening treatment
Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity (IACS%) |
Elongation (%) |
1070-1210 | 330-390 | ≥17 | ≥4 |
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Our product are in the form of wire, ribbon, strip, coil.
Round wire
Ribbon (flat wire)
Strip / foil
Stranded wire
Sheet / plate
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
PRODUCT APPLICATION
Applications
Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,
worm gear etc.
Shanghai Tankii Alloy Material Co., Ltd.specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Magnin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.
We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system.
We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed.They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
