NPCS Pure Copper Sheet For Power Battery Welding Belt

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: SGS

Model Number: Nickel plated copper strip

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Sea worthy package

Delivery Time: 5~20 days as per order qty

Payment Terms: T/T, Western Union

Supply Ability: 1000T/year

Get Best Price
Contact Now
Specifications
Highlight:

NPCS Pure Copper Sheet

,

SGS Nickel Copper Strip

,

Anti Corrosion Nickel Copper Strip

Shape:
Coil
Application:
Industrial
Material:
Brass,Copper
Surface:
Matt Light
Package:
Sea Worthy Package
Item:
NPCS Wholesales Nickel Plated Copper Strip Used For Power Battery Welding Belt
Color:
Silvery
Shape:
Coil
Application:
Industrial
Material:
Brass,Copper
Surface:
Matt Light
Package:
Sea Worthy Package
Item:
NPCS Wholesales Nickel Plated Copper Strip Used For Power Battery Welding Belt
Color:
Silvery
Description
NPCS Pure Copper Sheet For Power Battery Welding Belt

NPCS Wholesales Nickel Plated Copper Strip Used For Power Battery Welding Belt



Description:

This series of products with good electrical and thermal conductivity, ductility, deep impact and corrosion resistance,

it can be used in electrical appliances, construction, chemical industry, sealing gaskets, transformers, water heaters etc.





What's the meaning of Nickel plating?

 The process of electroplating a layer of nickel on a metal or some nonmetal by electrolysis or chemistry.



What's the grade of the copper strip used for nickel plating ?

Material Type: T2, H62, H65, H85.

Specification: thickness (0.1mm-3mm) width (2mm-200mm).





What's the Advantages of nickel-plated copper strip?



1, Good welding function

2, Anti-electromagnetic stirring

3, Cheap price

4, With higher chemical fluctuation, in sulfuric acid, nitric acid, in the dilute solution of hydrochloric acid is simply not dissolved.





What's the Application scope of nickel-plated copper strip?

1. Electronic connector,

2. Lead frame,

3. Relay spring plate,

4. Switch contact plate,

5. Precision electronic connector,

6. Terminal,

7. High-power battery connector,

8. Button battery cathode material,

9. Electronic material,

10. Connection between lithium battery anode

11. PCB board and other industries.



Cu%99.90 C11000 Cu ETP

T2 Chemical Content, %

Cu Bi Sb As Fe Ni Pb S Zn ROHS Directive
Cd Pb Hg Cr
99.90 0.001 0.002 0.002 0.005 - 0.005 0.005 - ND ND ND ND



Physical Properties of copper strip

Melting Point - Liquidus 1083ºC
Melting Point - Solidus 1065ºC
Density 8.91 gm/cm3@ 20 ºC
Specific Gravity 8.91
Electrical Resistivity 1.71 microhm-cm @ 20 ºC
Electrical Conductivity** 0.591 MegaSiemens/cm @ 20 ºC
Thermal Conductivity 391.1 W/m ·oK at 20 C
Coefficient of Thermal Expansion 16.9 ·10-6perºC(20-100 ºC)
Coefficient of Thermal Expansion 17.3 ·10-6perºC(20-200 ºC)
Coefficient of Thermal Expansion 17.6·10-6perºC(20-300 ºC)
Specific Heat Capacity 393.5 J/kg ·oK at 293 K
Modulus of Elasticity in Tension 117000 Mpa
Modulus of Rigidity 44130 Mpa



Material
Nickel Plated Copper Strip
Dimension
Customized
Package
According the customers requirement,
Advantage
The ease of machining and low electric resistance of this material make it best suited for such products as battery terminals.
Product high stability
material quality is stability and reliability.
Functions
This product is mainly used in manufacturing nickel-cadmium battery, nickel-hydrogen battery, lithium cell, assembled battery, as
well as industries of electric tool and special lights.

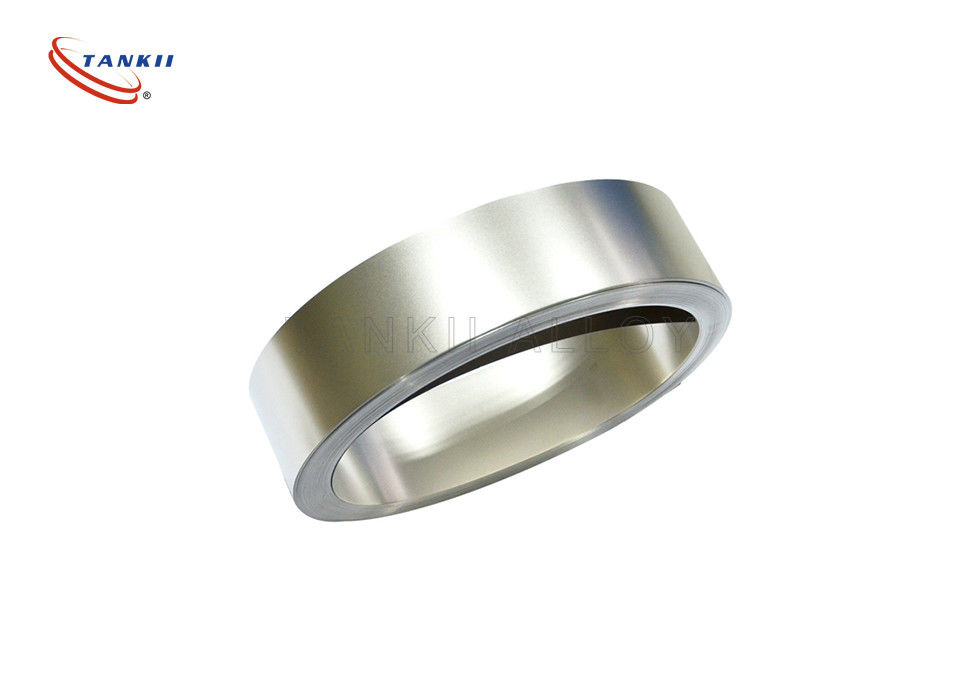

Nickel plated copper strip: with good surface

NPCS Pure Copper Sheet For Power Battery Welding Belt 0



Package: Carton box, wooden case
