Product Details
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS ISo
Model Number: C101
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: negotiable
Packaging Details: Wooden Case
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons per month
Color: |
Red |
Material: |
Copper Strip / Tape |
Surface: |
Bright |
WIdth: |
610mm |
Thickness: |
0.01-2.5mm, |
Length: |
3000mm |
Color: |
Red |
Material: |
Copper Strip / Tape |
Surface: |
Bright |
WIdth: |
610mm |
Thickness: |
0.01-2.5mm, |
Length: |
3000mm |

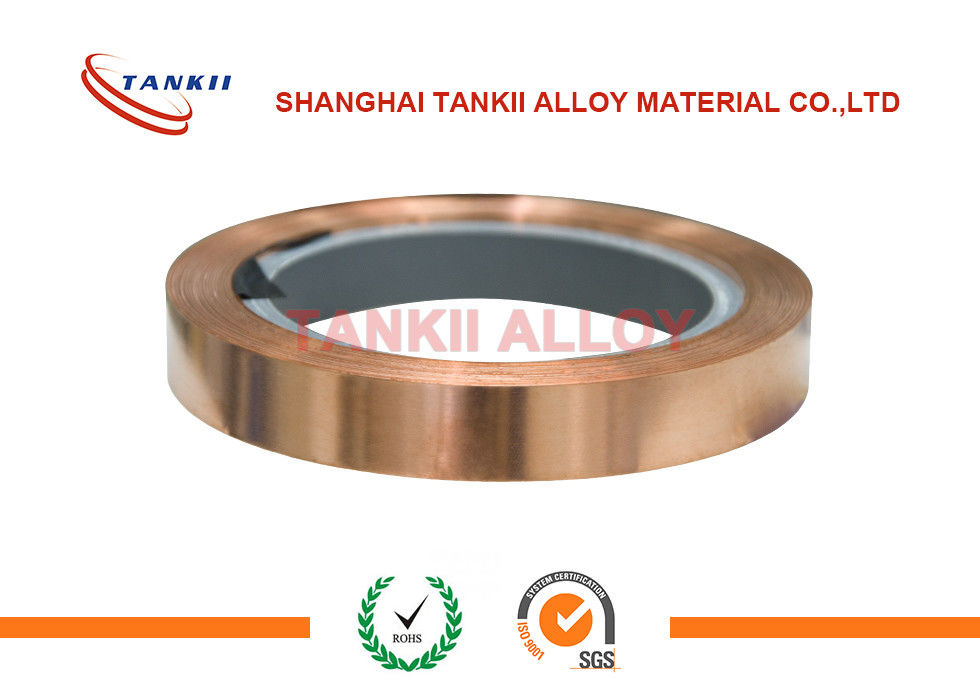

Etp copper strips for distribution transformers winding
Cu%99.90 C11000 Cu ETP
Min thickness:0.001mm
little order can accept
Specification of red copper strip we supply:
Strip: thick:0.15-3.0mm width:610mm
Plate:thick:0.5-3mm width:610mm Length:2500mm
With the assistance of our advanced technology, we offer quality range of Copper Strips and Plate. Manufactured using finest grade of raw material our array is widely used in numerous industries for excellent finish, corrosion resistance and durability. We even custom design these strips and flats as per client specific requirement.
GB | ISO | ASTM | JIS |
TU1 | Cu-OF | C10200 | C1020 |
TU2 | Cu-OF | C10300 | C1020 |
T2 | Cu-RTP | C11000 | C1100 |
TP1 | Cu-DLP | C12000 | C1201 |
TP2 | Cu-DHP | C12200 | C1220 |
GB | Composition | ||
Cu | P | Other | |
TU1 | 99.97 | 0.002 | balance |
TU2 | 99.95 | 0.002 | balance |
T2 | 99.9 | － | balance |
TP1 | 99.9 | 0.004-0.012 | balance |
TP2 | 99.9 | 0.015-0.040 | balance |
ASTM | Composition | ||
Cu | P | Other | |
C10200 | 99.95 | － | balance |
C10300 | 99.95 | 0.001-0.005 | balance |
C11000 | 99.9 | － | balance |
C12000 | 99.9 | 0.004-0.012 | balance |
C12200 | 99.9 | 0.015-0.040 | balance |
Mechanical properties of the strip | |||||||
Grade (China) | Grade (Japan) | Temper | Thickness/mm | Tensile Strength Rm/(N/mm2) | Elongation Al 1.3/% | Hardness HV | |
Copper strip | M | more than 0.2 | more than 195 | more than 30 | less than 70 | ||
T2 T3 | C1100 | Y4 | 215-275 | more than 25 | 60-90 | ||
TU1 TU2 | C1020 | Y2 | 245-345 | more than 8 | 80-110 | ||
TP1 TP2 | C1201 C1220 | Y | 295-380 | more than 3 | 90-120 | ||
T | more than 350 | more than 110 | |||||
