1j85 Ni80Mo5 permalloy foil Precision Distance Sleeve Soft Magnetic Alloy E11c

Product Details

Place of Origin: shanghai

Brand Name: tankii

Certification: ISO

Model Number: Ni80Mo5

Payment & Shipping Terms

Minimum Order Quantity: 50

Price: USD + 22.7 + KG

Packaging Details: wooden case

Delivery Time: 15 day

Payment Terms: L/C, D/P, T/T

Supply Ability: 50 + Tons + Month

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Shop Sign:
1j85
Resistance:
0.56
Density:
8.75
Chemical Composition:
Ni80Mo5
Use:
Distance Sleeve,chip
Curie Point:
400
Shop Sign:
1j85
Resistance:
0.56
Density:
8.75
Chemical Composition:
Ni80Mo5
Use:
Distance Sleeve,chip
Curie Point:
400
Description

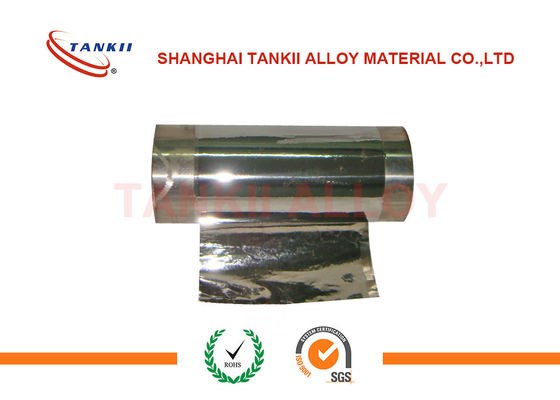

1j85 Ni80Mo5 permalloy foil Precision Distance Sleeve Soft Magnetic Alloy E11c

1j85 Ni80Mo5 permalloy foil Precision Distance Sleeve Soft Magnetic Alloy E11c



1. Description

Soft Magnetic Alloy is one kind of alloy with high permeability and low coercivity in weak magnetic field. This kind of alloy is widely used in radio electronics industry, precision instruments, remote control and automatic control system, generally, it is mainly used in energy conversion and information processing.

Chemical Content(%)


Mn

Ni

Cr

C

Si

P

S

Fe

Mo

0.35

80.3

0.02

0.01

0.18

0.005

0.003

Bal

4.95





Mechanical Properties




Density

8.6 g/cm3

Thermal Expansion Coefficient (20~100ºC)

12.4*10-6 /ºC

Curie Point

450ºC

Volume Resistivity (20ºC)

56μΩ.cm

Thermal Conductivity

18.7W/m. ºC

InitialMagnetic Permeability

Min.60mH/m

MaximumMagneticPermeability

Min.280mH/m

CoerciveForce

Max.2.0A/m

SaturationMagneticFluxDensity

0.7T

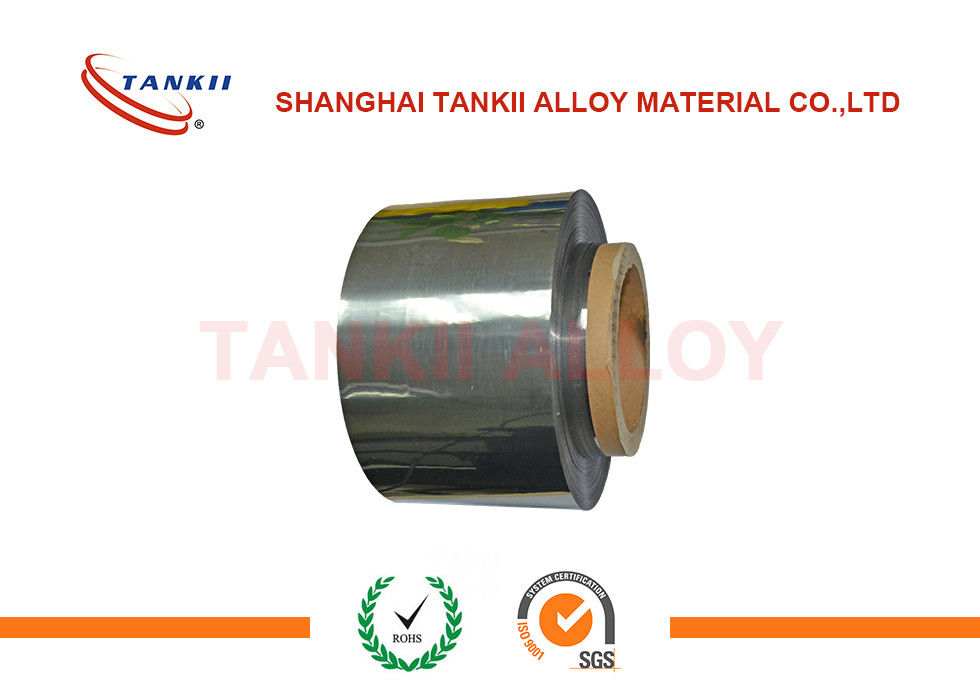

1j85 Ni80Mo5 permalloy foil Precision Distance Sleeve Soft Magnetic Alloy E11c 0


2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
