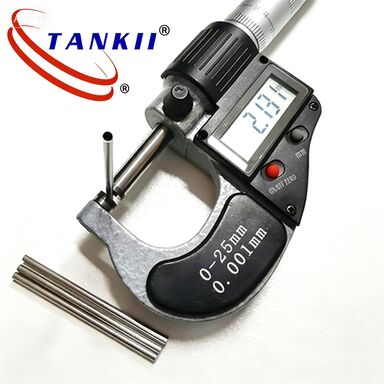

Platinum Iridium Alloy Tube with High Corrosion Resistance and 0.2mm Min. OD for Biocompatible Medical Applications

Name: Platinum Iridium Alloy Tube with High Corrosion Resistance and 0.2mm Min. OD for Biocompatible Medical Applications
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: PT90IR10
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: PT90IR10

Payment & Shipping Terms

Minimum Order Quantity: 200 Pcs

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Platinum Iridium alloy medical wire, PtIr10 surgical tubing, Capillarity pipe precision alloy


Material:	Platinum Iridium Tube	OD:	0.2mm Min.
WT:	0.01mm Min.	Shape:	PtIr Pipe
Sample:	Accepted Small Order	Trademark:	TANKII
HS Code:	7115909000

Material:	Platinum Iridium Tube
OD:	0.2mm Min.
WT:	0.01mm Min.
Shape:	PtIr Pipe
Sample:	Accepted Small Order
Trademark:	TANKII
HS Code:	7115909000

Description

Platinum Iridium Alloy Tube with High Corrosion Resistance and 0.2mm Min. OD for Biocompatible Medical Applications

Platinum Iridium alloy is a high -temperature metal. it consists of two metals: platinum and Iridium, which has excellent performance such as high strength, high corrosion resistance and high melting point. Widely used in the aerospace industry, medical equipment and other fields. The shadow ring is a marker ring used for X -ray development marks in the remote working area during interventional therapy, which belongs to disposable medical materials;High melting point, corrosion resistance, good cold processing performance, high accuracy; In line with human biocompatibility,stable transmission information, can be implanted; Product specifications:OD:0.3-5.0mm,wall thickness:0.015-0.2mm,support non-standard customization.Materials: Pt90lr10.

OD
mm

W.T. /mm

≥0.015

≥0.02

≥0.05

≥0.10

≥0.20

≥0.30

≥0.40

≥0.50

≥0.60

≥0.70

≥0.80

≥0.90

≥1.00

≥1.5

≥0.3

≥0.5

≥1.0

≥1.5

≥2.0

≥3.0

≥4.0

≥5.0

≥6.0

≥7.0

≥8.0

≥9.0

≥10.0

≥15.0

≥20.0

Material	Melting point (ºC)	Density (G/cm3)	Vickers hardnes Soft	Vickers hardnes Hard	Tensile force (MPa)	Resistivity (uΩ.cm)20ºC
Platinum (99.99%)	1772	21.45	40	100	147	10.8
Pt-Rh5%	1830	20.7	70	160	225	17.5
Pt-Rh10%	1860	19.8	90	190	274	19.2
Pt-Rh20%	1905	18.8	100	220	480	20.8
Platinum-Ir (99.99%)	2410	22.42
Pure Platinum-Pt (99.99%)	1772	21.45
Pt-Ir5%	1790	21.49	90	140	174	19
Pt-lr10%	1800	21.53	130	230	382	24.5
Pt-Ir20%	1840	21.81	200	300	539	32
Pt-lr25%	1840	21.7	200	300	238	33
Pt-Ir30%	1860	22.15	210	300	242	32.5
Pt-Ni10%	1580	18.8	150	320	441	32
Pt-Ni20%	1450	16.73	220	400	588	34.1
Pt-w%	1850	21.3	200	360	588	62
Applications: Gas sensors. Various sensors, medical components. Electric and heating probes, etc.
