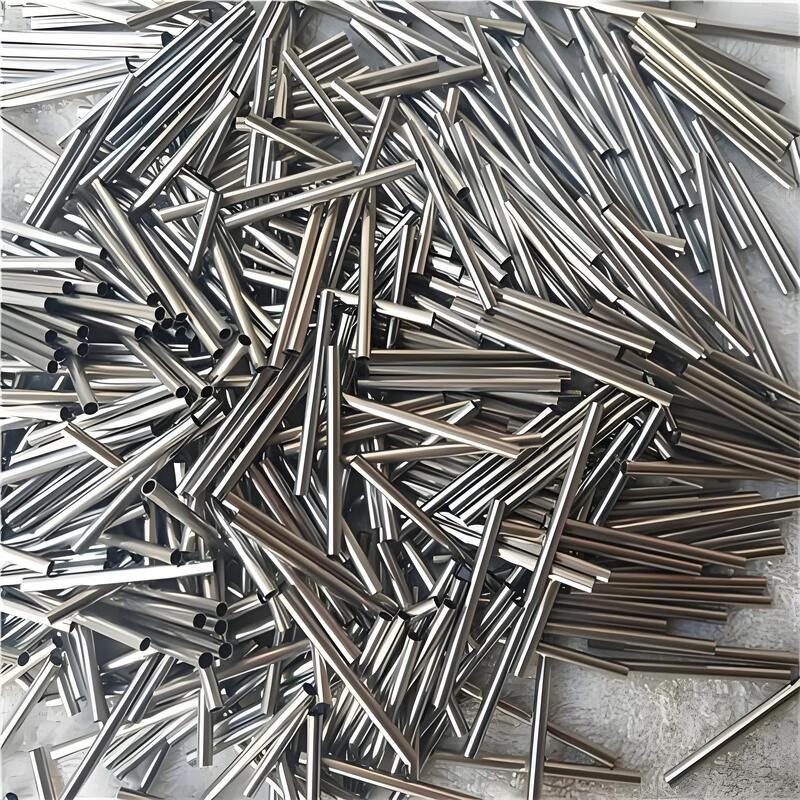

Invar 36 Tube 20mm OD Bright Surface High Dimensional Stability FeNi36 Alloy Precision Tubing

Name: Invar 36 Tube 20mm OD Bright Surface High Dimensional Stability FeNi36 Alloy Precision Tubing
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: FeNi36
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: FeNi36

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Invar 36 alloy tube 20mm, Iron Nickel alloy pipe 4j36, Invar 36 tube with warranty


Model NO.:	Invar	OD:	0.2mm Min.
WT:	0.015mm	Length:	0.2mm Min.
Shape:	Coil Pipe; Capillary Pipe;Seamless Pipe	Surface:	Bright
Sample:	Accpted Small Order

Model NO.:	Invar
OD:	0.2mm Min.
WT:	0.015mm
Length:	0.2mm Min.
Shape:	Coil Pipe; Capillary Pipe;Seamless Pipe
Surface:	Bright
Sample:	Accpted Small Order

Description

Invar 36 Tube 20mm OD Bright Surface High Dimensional Stability FeNi36 Alloy Precision Tubing

4J36 (Invar) is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.

4J36 use oxyacetylene welding, electric arc welding, welding and other welding methods. Since the coefficient of expansion and chemical composition of the alloy is related should be avoided due to welding causes a change in the alloy composition, it is preferable to use Argon arc welding welding filler metals preferably contains 0.5% to 1.5% titanium, in order to reduce weld porosity and crack.

Normal composition%

Ni	35~37.0	Fe	Bal.	Co	-	Si	≤0.3
Mo	-	Cu	-	Cr	-	Mn	0.2~0.6
C	≤0.05	P	≤0.02	S	≤0.02

Coefficient of expansion

θ/ºC	α1/10-6ºC-1	θ/ºC	α1/10-6ºC-1
20~-60	1.8	20~250	3.6
20~-40	1.8	20~300	5.2
20~-20	1.6	20~350	6.5
20~-0	1.6	20~400	7.8
20~50	1.1	20~450	8.9
20~100	1.4	20~500	9.7
20~150	1.9	20~550	10.4
20~200	2.5	20~600	11.0

Typical Physical properties

Density (g/cm3)	8.1
Electrical resistivity at 20ºC(OMmm2/m)	0.78
Temperature factor of resistivity(20ºC~200ºC)X10-6/ºC	3.7~3.9
*Thermal conductivity, λ/ W/(mºC)**	11
Curie point Tc/ ºC	230
Elastic Modulus, E/ Gpa	144

DATASHEET FOR:STEEL GRADES:SPECIAL ALLOY:4J42

Chemical composition(mass fraction)(wt.%) of the 4J42

C(%)		Si(%)	Mn(%)	P(%)	S(%)	Ni(%)	Co(%)	Al(%)	Fe(%)
0.05		≤0.30	≤0.80	0.020	0.020	41.5-42.5	≤0.1	≤0.1	Bal

Mechanical properties / Mechanische Eigenschaften / Caracteristiques mecaniques of grade4J42

MECHANICAL PROPERTIES

Yield Rp0.2(MPa)	Tensile Rm(MPa)	Impact KV/Ku (J)	Elongation A (%)	Reduction in cross section on fracture Z (%)	As-Heat-Treated Condition	Brinell hardness (HBW)
232 (≥)	934 (≥)	22	23	14	Solution and Aging, Annealing, Ausaging, Q+T,etc	111

PHYSICAL PROPERTIES

Temper (°C)	Modulus of elasticity (GPa)	Mean coefficient of thermal expansion 10-6/(°C) between 20(°C) and	Thermal conductivity (W/m·°C)	Specific thermal capacity (J/kg·°C)	Specific electrical resistivity (Ω mm²/m)	Density (kg/dm³)	Poisson's coefficient, ν
11	-	-			0.14	-
364	336	-	43.3	311		-
748	-	22	43.2			211	141

Invar 36 Tube 20mm OD Bright Surface High Dimensional Stability FeNi36 Alloy Precision Tubing 0
