Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: KP KN
Payment & Shipping Terms
Minimum Order Quantity: 10kg per leg
Price: Negotiation
Packaging Details: Standard exoprt package in carton box or wooden box
Delivery Time: 5-7 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
Chromel Alumel |
Surface: |
Bright |
Diameter: |
Above 0.1mm |
Strands: |
Solid |
Wire Type: |
Solid Wire |
Insulation: |
Available |
Wire Class: |
I , II, III |
Leading Time: |
5 To 7 Days After Getting The Payment |
Material: |
Chromel Alumel |
Surface: |
Bright |
Diameter: |
Above 0.1mm |
Strands: |
Solid |
Wire Type: |
Solid Wire |
Insulation: |
Available |
Wire Class: |
I , II, III |
Leading Time: |
5 To 7 Days After Getting The Payment |

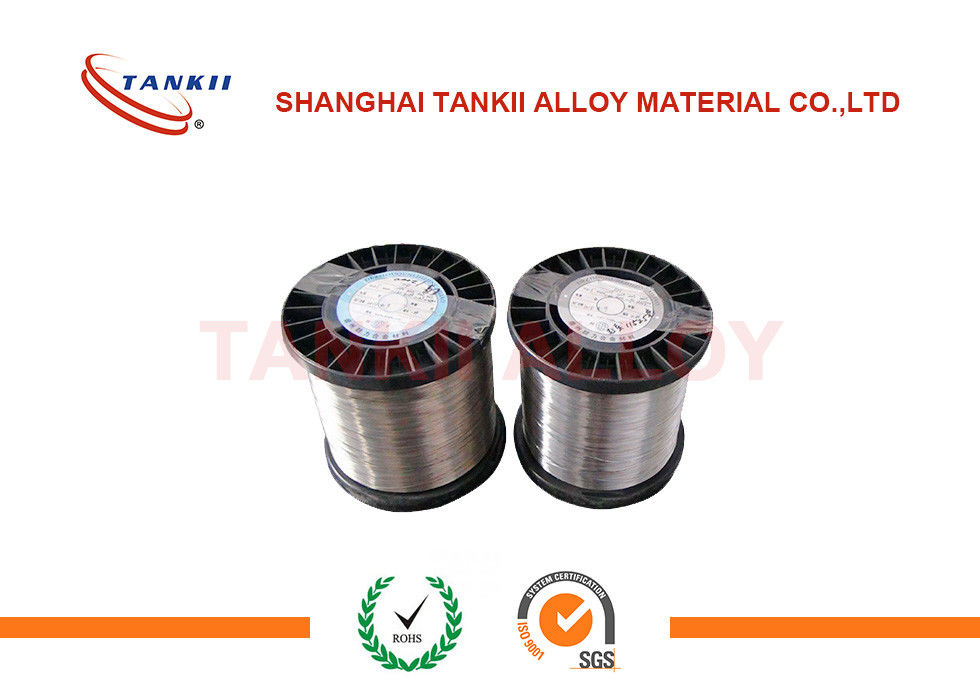

K Type Thermocouple wire 0.5mm with bright color used for 3d printer / air and gas thermocouple
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
