Product Details:
|
| Material: | Chromel Alumel | Surface: | Bright / Oxidized |
|---|---|---|---|
| Diameter: | 0.1mm-8.0mm | Grade: | I/II/III |
| Item: | Mineral Insulated Thermocouple Wire MI Cable Single / Double Lead 3.0mm Armoured Thermocouple Wire | ||
| High Light: | high temperature thermocouple wire,thermocouple lead wire |
||

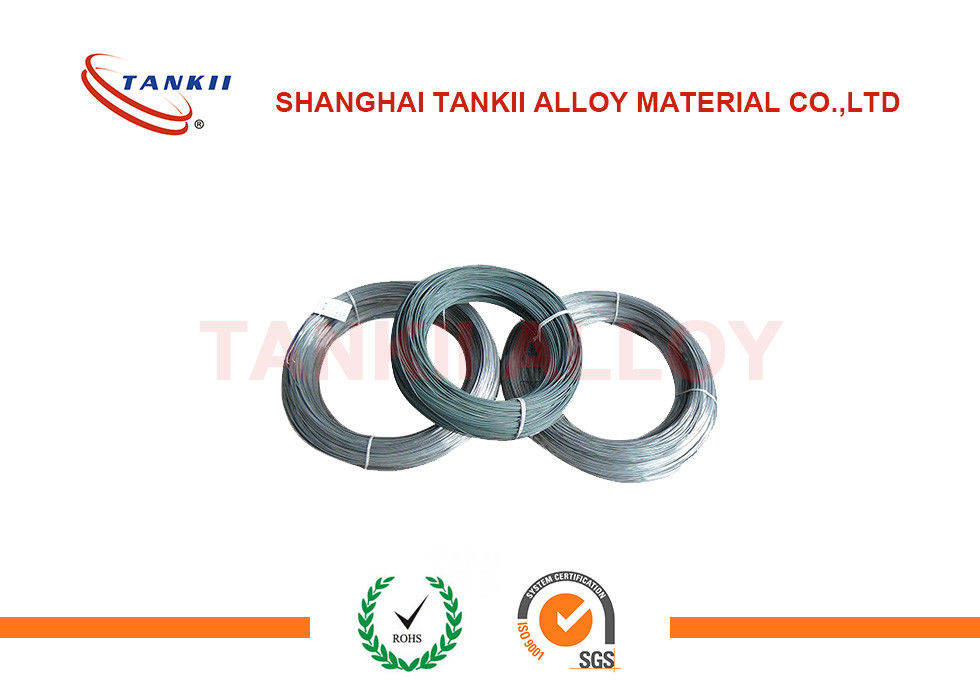

16 Awg Roll Thermocouple Type K For MI Cable / Quality Control Temperature Measurement
Quick Description
What is thermocouple wire?
Thermocouple wire allows temperatures to be measured electronically.
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Thermocouple rods, enamelled wire, ribboon wire is available.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
