Product Details:
|
| Material: | Chromel Alumel | Surface: | Bright / Oxidized |
|---|---|---|---|
| Diameter: | 0.41mm | Strands: | 19 |
| Section Area: | 2.5 Mm2 | Wire Type: | Stranded Soft Wire |
| Insulation: | Available | Wire Class: | I , II, III |
| Leading Time: | 10 Days After Getting The Payment | Item: | K Type Stranded Thermocouple Bare Wire 0.41mm For Thermocouple Extension Cable |
| High Light: | high temperature thermocouple wire,thermocouple lead wire |
||

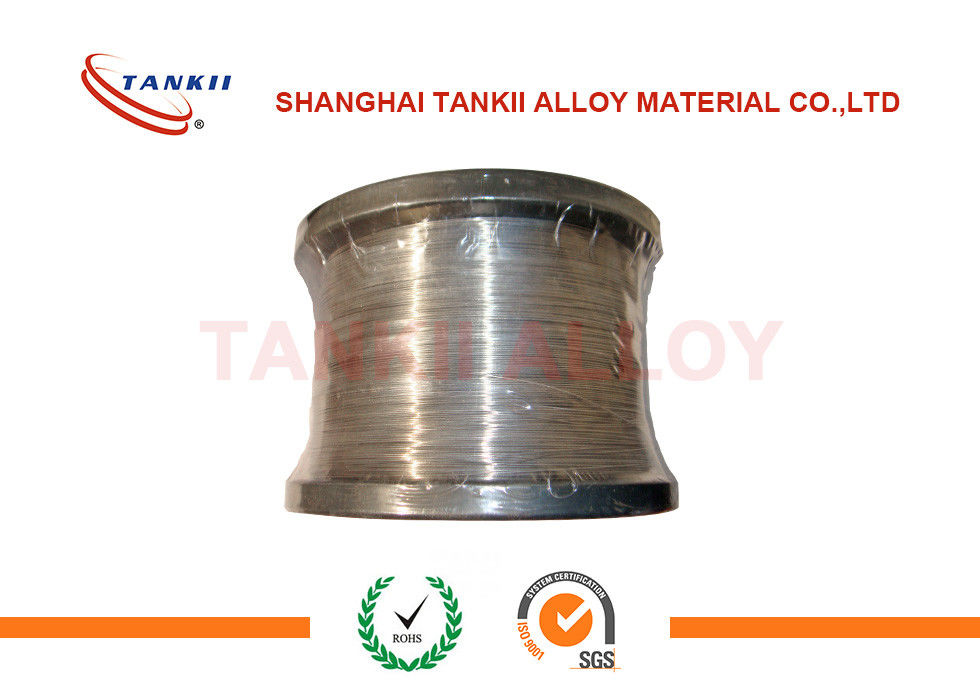

K Type Stranded Thermocouple Bare Wire 0.41mm For Thermocouple Extension Cable
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strips / ribbon wires with different varieties and specifications of our company can be applied in all kinds of thermocouples, the temperature ranges from -270℃ to 1800℃.
The thermocouple strips / wires have excellent performance and are extensively used in the temperature measurement and control in different fields, such as metallurgy, chemical industry, petroleum industry, machinery-electric industry, energy industry, agriculture and military industry.
Our products conform to the standards of IEC584 -1and IEC-2.
|
Thermocouple type and index
|
Measurement Range ℃ |
|
|
Type
|
Index
|
|
|
PtRh30-PtRh6 |
B | 600~1700 |
|
PtRh13-Pt |
R | 0~1600 |
|
PtRh10-Pt |
S | 0~1600 |
|
NiCr-NiSi |
K | -200~1300 |
|
NiCr-CuNi (constantan) |
E | -200~900 |
|
Fe-CuNi (constantan) |
J | -40~750 |
|
Cu-CuNi (constantan) |
T | -200~350 |
|
NiCrSi-NiSi |
N | -200~1300 |
