Thermostatic Bimetal Strip Precision Alloy For Temperature Control Components

Product Details

Place of Origin: China shanghai

Brand Name: Kanthal

Certification: ISO9001

Model Number: Kanthal 200

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: USD + 32 + KG

Packaging Details: wooden case

Delivery Time: 10-15day

Payment Terms: L/C, D/A, T/T, D/P

Supply Ability: 50 + Ton + month

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Use:
Temperature Control Components
Density:
7.7
Temperature Curvature:
39.0±5%
Features:
High Sensitive, High Resistance, Medium Temperature
Resistivity:
1.12
Than Bending:
20.5
Recommend The Highest Use Temperature:
260 Degree Centigrade
High And Low Expansion Alloy Composition:
Mn75Ni15Cu10 / Ni36
Use:
Temperature Control Components
Density:
7.7
Temperature Curvature:
39.0±5%
Features:
High Sensitive, High Resistance, Medium Temperature
Resistivity:
1.12
Than Bending:
20.5
Recommend The Highest Use Temperature:
260 Degree Centigrade
High And Low Expansion Alloy Composition:
Mn75Ni15Cu10 / Ni36
Description
Thermostatic Bimetal Strip Precision Alloy For Temperature Control Components
Product Description

oft Condition Bimetal Bimetallic Material 0.1 ~ 1.5mm Thickness 7.7 g/cm3 Density

Thermal control elements with Bimetal Strip TANKII ALLOY 5J20110 Kanthal 1200

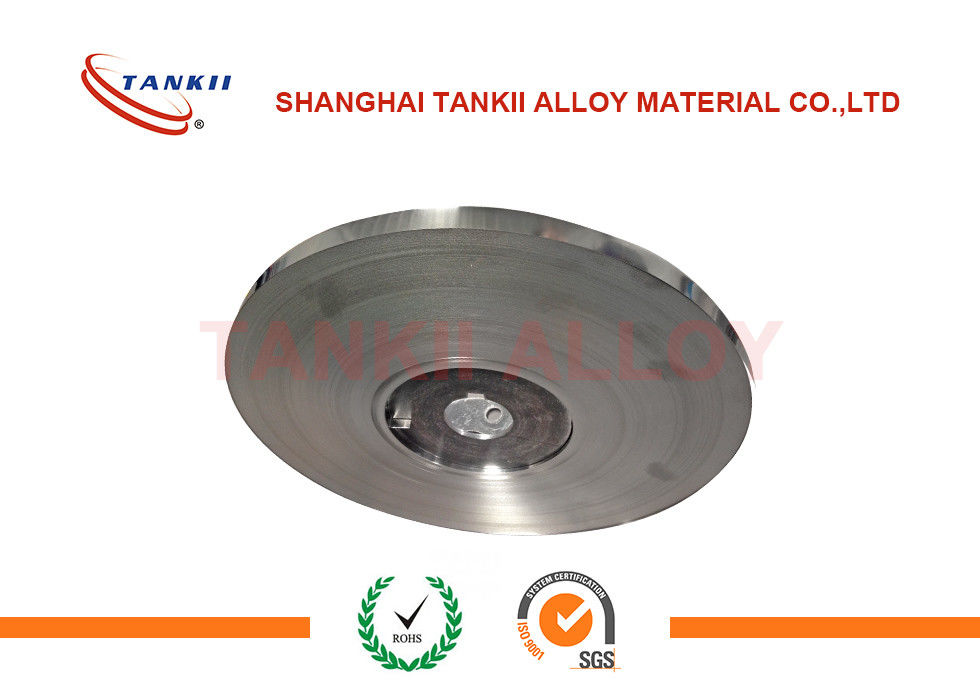

Kanthal 200 (Bimetallic strip)


(Common Name: Truflex P675R, Telcon200, Kanthal 1200)



Bimetallic strip is used to convert a temperature change into mechanical displacement. The strip consists of two strips of different metals which expand at different rates as they are heated, usually steel and copper, or in some cases steel and brass. The strips are joined together throughout their length by riveting, brazing or welding. The different expansions force the flat strip to bend one way if heated, and in the opposite direction if cooled below its initial temperature. The metal with the higher coefficient of thermal expansion is on the outer side of the curve when the strip is heated and on the inner side when cooled

The sideways displacement of the strip is much larger than the small lengthways expansion in either of the two metals. This effect is used in a range of mechanical and electrical devices. In some applications the bimetal strip is used in the flat form. In others, it is wrapped into a coil for compactness. The greater length of the coiled version gives improved sensitivity.



Chemical composition(%)



Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.



Grade C Si Mn P S Ni Cr Cu Fe
Mn75Ni15Cu10 ≤0.05 ≤0.5 Bal. ≤0.02 ≤0.02 14~16 - 9~11 ≤0.8



Composition

Grade 5J20110
High expansion layer Mn75Ni15Cu10
Low expansion layer Ni36



Typical Physical properties



Density (g/cm3) 7.7
Electrical resistivity at 20ºC(OMmm2/m) 1.13 ±5%
Thermal conductivity, λ/ W/(m*ºC) 6
Elastic Modulus, E/ Gpa 113~142
Bending K / 10-6 ºC-1(20~135ºC) 20.8
Temperature bending rate F/(20~130ºC)10-6ºC-1 39.0%±5%
Allowable temperature (ºC) -70~ 200
Linear temperature (ºC) -20~ 150



Application: The material is mainly in automatic control devices and instrumentation (eg: exhaust thermometers, thermostats, voltage regulators, temperature relay, automatic protection switching, diaphragm meters, etc.) make temperature control, temperature compensation, current limit, temperature indicator and other heat-sensitive components.



Feature: The basic characteristics of Thermostat Bimetallic is bending deformation with temperature changes, resulting in a certain moment.
Thermostat Bimetallic Strip expansion coefficient is different from the two or more layers of metal or alloy along the entire contact surface firmly bonded, having a temperature-dependent shape change occurs thermosensitive functional composites. Wherein the higher expansion coefficient of the active layer is a layer called a low coefficient of expansion of the layer is named passive layer.



Style of supply

Alloys Name Type Dimension
Kanthal 200 Strip W= 5~120mm T= 0.1mm
