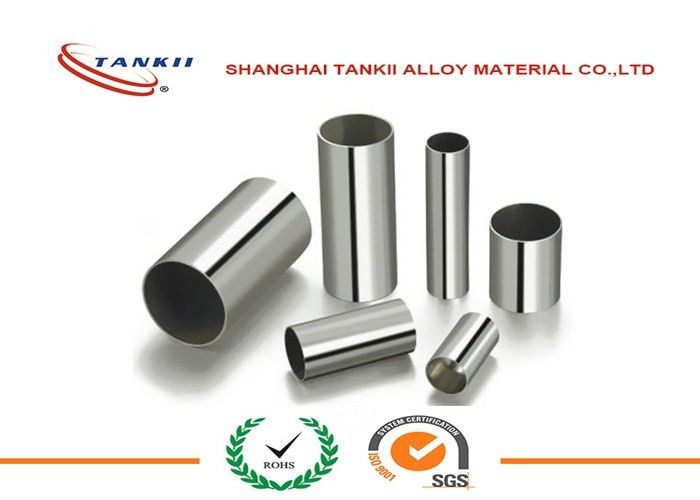

Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe

Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe
Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe

Large Image :  Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe

Product Details:
Place of Origin: shanghai
Brand Name: tankii
Certification: ISO
Model Number: Ni80Mo5
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: USD + 45 + KG
Packaging Details: wooden case
Delivery Time: 30 day
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 + Tons + Month

Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe

Description
Shop Sign: 1j85 Resistance: 0.56
Density: 8.75 Chemical Composition: Ni80Mo5
Use: Distance Sleeve,chip Curie Point: 400
High Light:

precision tubing

,

kovar alloy


Product Description

1J85 (Soft magnetic alloy)
(Common Name: Ni80Mo5, E11c, malloy, permalloy,79HMA)

High permeability soft magnetic alloy
High permeability soft magnetic alloy mainly nickel base alloy, nickel content is over 80%, this kind of alloy has the very high initial permeability and permeability.Often referred to as permalloy, also known as the early high magnetic conductivity alloy.They all have good processing performance, can be rolled into thin strip.Alloy is suitable for application in the ac weak magnetic field.Such as TV and instrumentation in various audio transformer, the high accuracy bridge transformer, transformer, magnetic shielding, magnetic amplifier, magnetic modulator, audio head, choke, precision electric meter of the piece and piece, etc

1J85 widely used in radio-electronic industry, precision instruments, remote control and automatic control system.

Normal composition%
Ni 79~81.0 Fe Bal. Mn 0.3~0.6 Si 0.15~0.3
Mo 4.8~5.2 Cu ≤0.2
C ≤0.03 P ≤0.02 S ≤0.02



Typical Physical properties
Density (g/cm3) 8.75
Electrical resistivity at 20ºC(Om*mm2/m) 0.56
Coefficient of linear expansion(20ºC~200ºC)X10-6/ºC 10.9~11.2
Saturation magnetostriction coefficient λθ/ 10-6 0.5
Curie point Tc/ ºC 400






The magnetic properties of alloys with high permeability in weak fields
1J85 Initial permeability Maximum permeability Coercivity Saturation magnetic induction intensity
Сold-rolled strip/ sheet.
Thickness, mm
μ0.08/ (mH/m) μm/ (mH/m) Hc/ (A/m) BS/ T
0.01 mm 17.5 87.5 5.6









0.75
0.1~0.19 mm 25.0 162.5 2.4
0.2~0.34 mm 28.0 225.0 1.6
0.35~1.0 mm 30.0 250.0 1.6
1.1~2.5 mm 27.5 225.0 1.6
2.6~3.0 mm 26.3 187.5 2.0
cold drawn wire
0.1 mm 6.3 50 6.4
Bar
8-100 mm 25 100 3.2





Mode of heat treatment 1J79
Annealing media Vacuum with a residual pressure not higher than 0.1Pa, hydrogen with a dew point of not higher than minus 40 ºC.
The heating temperature and rate 1100~1150ºC
Holding time 3~6
Cooling rate With 100 ~ 200 ºC/ h cooled to 600 ºC, rapidly cooled to 300ºC


Style of supply
Alloys Name Type Dimension
1J85 Wire D= 0.1~8mm
1J85 Strip W= 8~390mm T= 0.3mm
1J85 Foil W= 10~100mm T= 0.01~0.1
1J85 Bar Dia= 8~100mm L= 50~1000


Ni80Mo5 permalloy pipe Precision Alloy Soft Magnetic Nickel Iron Alloy 1j85 Pipe 0
Soft magnetic alloy are in weak magnetic field with high permeability and low coercive force of alloys.This kind of alloy are widely used in radio electronics, precision instruments and meters, remote control and automatic control system, the combination is mainly used for energy conversion and information processing, the two aspects of is an important material in the national economy.



2.Usage
It is mostly used in small transformers, pulse transformers, relays, transformer, magnetic amplifier, electromagnetic clutch,the reactor coreand magnetic shielding which work inweak magnetic orsecondary magnetic field.

3.Features
1).Low coercivity and magnetic hysteresis loss;
2).High resistivity and loweddy-currentloss;
3).High initialmagnetic permeability and maximum magnetic permeability;
4).High saturation magnetic flux density;

4. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
