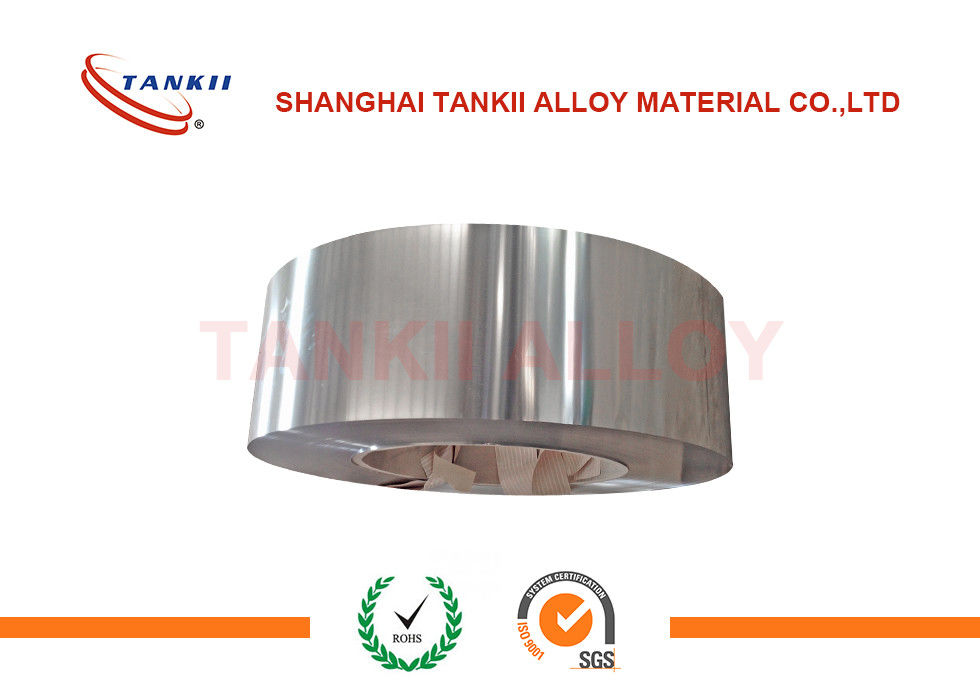

Cu - Ni Alloy Cupronickel Copper Nickel Strip CuNi30 C71500 Low Resistance Of Copper Nickel Alloy Plate

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO

Model Number: CuNi30Mn

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil

Payment Terms: Western Union, T/T, L/C

Supply Ability: 60,000/month

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Conductor Material:
: Copper Nickel
CuNi Series:
CuNi(1,2,6,8,10,14,19,23,30,34,6J40(CuNi40)
Shape:
: Wire
Application:
: Heating Systerm
Highest Working Temperature:
: 250°C
Model Number:
: CuNi30
Conductor Material:
: Copper Nickel
CuNi Series:
CuNi(1,2,6,8,10,14,19,23,30,34,6J40(CuNi40)
Shape:
: Wire
Application:
: Heating Systerm
Highest Working Temperature:
: 250°C
Model Number:
: CuNi30
Description
Cu - Ni Alloy Cupronickel Copper Nickel Strip CuNi30 C71500 Low Resistance Of Copper Nickel Alloy Plate



Product Description
Prototype development and small lot products
Thickness size(1.0mm-0.03mm)
Width size(200mm-1.0mm)
Minimum Lot(10kg)

with excellent resistance to corrosion and erosion. It is strong and ductile, utilized in areas where high temperatures and pressures, combined with high velocities and turbulence are serious problems.

Marine service, tidewater power plants, desalinization plants, oil reli neries, and in the chemical process industry.



1. Description

Cupronickel, also can be called copper nickel alloy, is an alloy of copper, nickel and strengthening impurities, such as iron and manganese.


CuNi30

Chemical Content(%)

Mn
Ni Cu
1.0 30 Bal.



Mechanical Properties

Max Continuous Service Temp
350 ºC
Resistivity at 20ºC 0.35 ± 5% ohm*mm2/m
Density 8.9 g/cm3
Temperature Coefficient of Resistance < 10 ×10-6/ºC
EMF VS Cu (0~100ºC) -37 μV/ºC
Melting Point 1170 ºC
Tensile Strength Min 400 Mpa
Elongation Min 25%
Micrographic Structure Austenite
Magnetic Property Non.




2. Specification

Wire: Diameter: 0.04mm-8.0mm

Strip: Thickness: 0.01mm-3.0mm
Width: 0.5mm-120mm




3.Usage

It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.

4.Features

It has nice corrosion resistance, good malleability and solderability.

5. Packing detail

1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet

6. Products and services

1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
