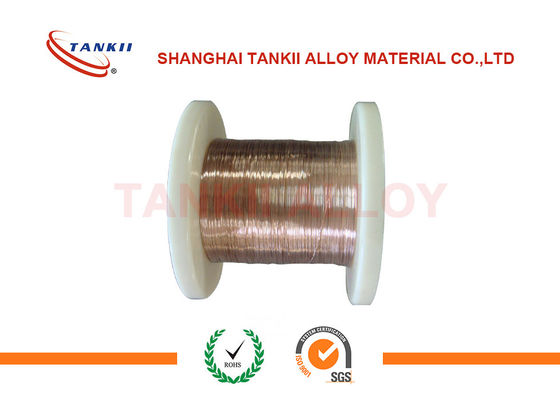

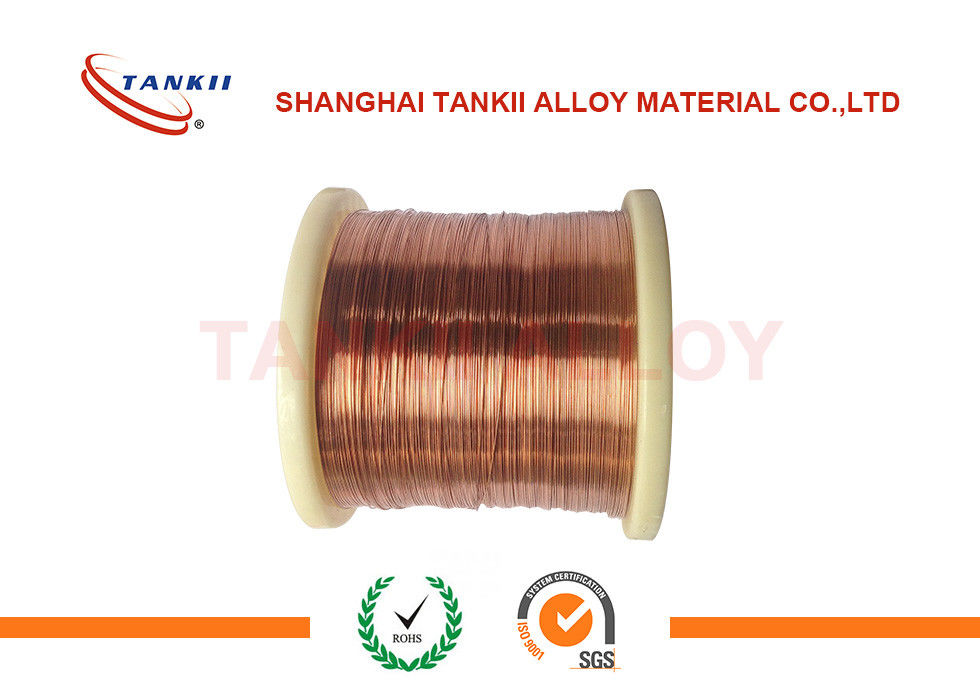

Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ROHS,SGS
Model Number: CuMn12Ni
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Packaging Details: in Spool
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 + Tons + month
Insulaltion: |
Enamelled |
Temper Class: |
:133℃,150℃180℃,200℃,220℃ |
Colour Of Enamelled: |
Black,Red,Nature,Blue,Green,yellow |
Bare Conductor: |
Copper Manganin |
Shape: |
Round Wire,Flat Wire |
Application: |
Precision Resistor |
Insulaltion: |
Enamelled |
Temper Class: |
:133℃,150℃180℃,200℃,220℃ |
Colour Of Enamelled: |
Black,Red,Nature,Blue,Green,yellow |
Bare Conductor: |
Copper Manganin |
Shape: |
Round Wire,Flat Wire |
Application: |
Precision Resistor |
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 2~5 | 11~13 | <0.5 | micro | Bal | - | ND | ND | ND | ND |
Mechanical Properties
| Max Continuous Service Temp | 0-100ºC |
| Resisivity at 20ºC | 0.47±0.03ohm mm2/m |
| Density | 8.44 g/cm3 |
| Thermal Conductivity | 40 KJ/m·h·ºC |
| Temp Coefficient of Resistance at 20 ºC | 0~40α×10-6/ºC |
| Melting Point | 1450ºC |
| Tensile Strength(Hard) | 585 Mpa(min) |
| Tensile Strength,N/mm2 Annealed,Soft | 390-535 |
| Elongation | 6~15% |
| EMF vs Cu, μV/ºC (0~100ºC) | 2(max) |
| Micrographic Structure | austenite |
| Magnetic Property | non |
| Hardness | 200-260HB |
| Micrographic Structure | Ferrite |
| Magnetic Property | Magnetic |
Resistance Alloy- Shunt Manganin Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire &Ribbon diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Also enameled condition is available
