1.13 Resistivity Precision Alloy

Product Details

Place of Origin: china

Brand Name: tankii

Certification: ISO9001

Model Number: Kanthal 200

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: dollar + 35 + kg

Packaging Details: wooden case

Delivery Time: 15day

Payment Terms: L/C, D/A, T/T

Supply Ability: 30 + tons + month

Get Best Price
Contact Now
Specifications
Highlight:

soft magnetic alloy

,

precision tubing

Use:
Temperature Control Components
Features:
Than Bending Highest
Density:
7.7g/cm³
Resistivity:
1.13
Use:
Temperature Control Components
Features:
Than Bending Highest
Density:
7.7g/cm³
Resistivity:
1.13
Description
1.13 Resistivity Precision Alloy

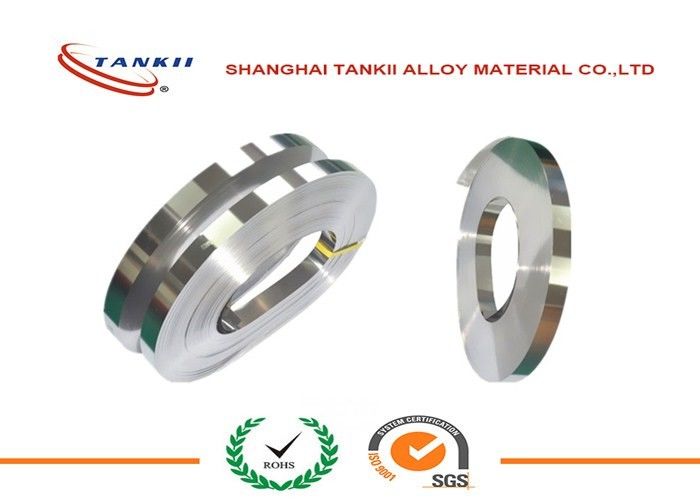

1.13 Resistivity Precision Alloy 0

overview
Thermal bimetal strip is by the different expansion coefficient of two or more than two layers of metal or metal solid combination, and along the entire interface varies with temperature and the thermal function of shape changes in composite materials.One of high expansion coefficient become active layer, low expansion coefficient becomes passive.When requirements with high resistivity, but heat sensitive resistance performance is essentially the same type of thermal bimetal series, can be added between the two layers of different thickness of middle layer as a shunt layer, is to achieve the purpose of control different resistivity.


The basic characteristic of the thermal bimetal is changing with temperature and temperature deformation, resulting in a certain moment.Many devices use this feature to convert heat energy into mechanical work to achieve automatic control.Thermal bimetal used for control system and temperature sensor in the measuring instrument.


Main features: high heat sensitive properties and high resistivity, but lower elastic modulus and allowed stress, can increase the sensitivity of the instrument, smaller size and increase the reaction



shop sign Kanthal 200
With brand
Composite layer
alloybrand
High expansion layer Mn75Ni15Cu10(Mn72Ni10Cu18)
middle layer --------
Low expansion layer Ni36



Chemical composition

shop sign Ni Cr Fe Co Cu Zn Mn Si C S P
Ni36 35.0~37.0 - allowance - - - ≤0.6 ≤0.3 0.05 0.02 0.02
Mn72Ni10Cu18 8.0~11.0 - ≤0.8 - 17.0~19.0 - allowance ≤0.5 0.05 0.03 0.02
Mn75Ni15Cu10 14.0~16.0 - ≤0.8 - 9.0~11.0 - allowance ≤0.5 0.05 0.02 0.03



performance

Than bending K(20~135ºC) Temperature curvature
F/(greenhouse ~ 130 ºC)
resistivity Linear temperature
/ ºC
Allows the use of temperature / ºC Density (g/cm after)
Nominal value Allowable deviation Standard values Allowable deviation
Level 1 Level 2
20.8 ±5% ±7% 39.0%±5% 1.13 ±5% -20~150 -70~200 7.7



Modulus of elasticity
E/GPa
Hardness (HV) Tensile strength
MPa
Allow stress MPa
High expansion layer Low expansion layer minimum biggest
113~142 190~240 200~255 736~834 147 294



production process
Cold rolled →go oil → pickling → annealing cold-rolled →oil → pickling → annealing cold-rolled → conform to the requirements of the use of thermal bimetal strip
