Product Details
Place of Origin: Sahnghai China
Brand Name: TANKII
Certification: ISO:9001 RoHS
Model Number: Enamelled Nichrome wire
Payment & Shipping Terms
Minimum Order Quantity: 20kilograms
Price: USD + 20-60 + kilograms
Packaging Details: packing, wooden case. Inside package, carton
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 + Tons + per month
Color: |
Red Green Yellow White Etc. |
Size: |
0.01 - 10mm |
Standard: |
ASTM / GB / JIS / DIN |
Sample: |
Free |
Color: |
Red Green Yellow White Etc. |
Size: |
0.01 - 10mm |
Standard: |
ASTM / GB / JIS / DIN |
Sample: |
Free |

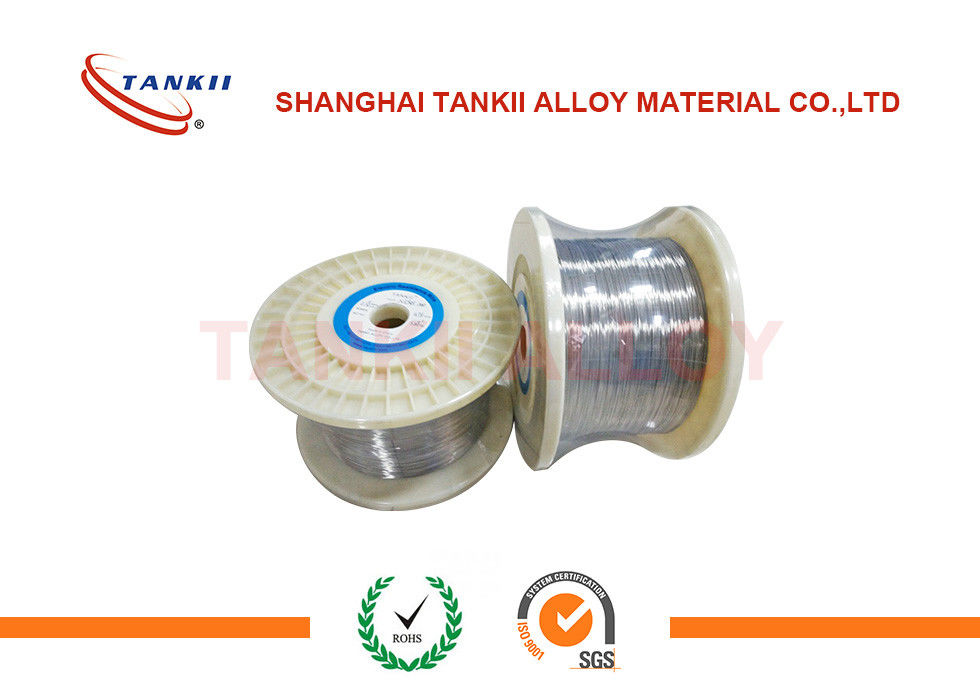

0.1mm 0.7mm Cuni44 Copper And Nickel Alloy Round Wire / Flat Wire / Microfilament / Rod
Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.
Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size
Type of insulation
Insulation-enamelled Name | Thermal LevelºC (working time 2000h) |
Code Name | GB Code | ANSI. TYPE |
Polyurethane enamelled wire | 130 | UEW | QA | MW75C |
Polyester enamelled wire | 155 | PEW | QZ | MW5C |
Polyester-imide enamelled wire | 180 | EIW | QZY | MW30C |
Polyester-imide and polyamide-imide double coated enameled wire | 200 | EIWH (DFWF) |
QZY/XY | MW35C |
Polyamide-imide enamelled wire | 220 | AIW | QXY | MW81C |
Chemical Content, %
Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
Cd | Pb | Hg | Cr | ||||||
44 | 1% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties
Max Continuous Service Temp | 400ºC |
Resisivity at 20ºC | 0.49±5%ohm mm2/m |
Density | 8.9 g/cm3 |
Thermal Conductivity | -6(Max) |
Melting Point | 1280ºC |
Tensile Strength,N/mm2 Annealed,Soft | 340~535 Mpa |
Tensile Strength,N/mm3 Cold Rolled | 680~1070 Mpa |
Elongation(anneal) | 25%(Min) |
Elongation(cold rolled) | ≥Min)2%(Min) |
EMF vs Cu, μV/ºC (0~100ºC) | -43 |
Micrographic Structure | austenite |
Magnetic Property | Non |
Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional
elements to achieve precise values for the temperature coefficient of resistivity. Careful
control of melting and conversion practices results in a very low level of pinholes at
ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.
