FeCr25Al5 wire Electrical High Temperature Heating Wire

Name: FeCr25Al5 wire Electrical High Temperature Heating Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr23Al5
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiable

Delivery Time: 15-20 days

Payment Terms: T/T

Supply Ability: 100000t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

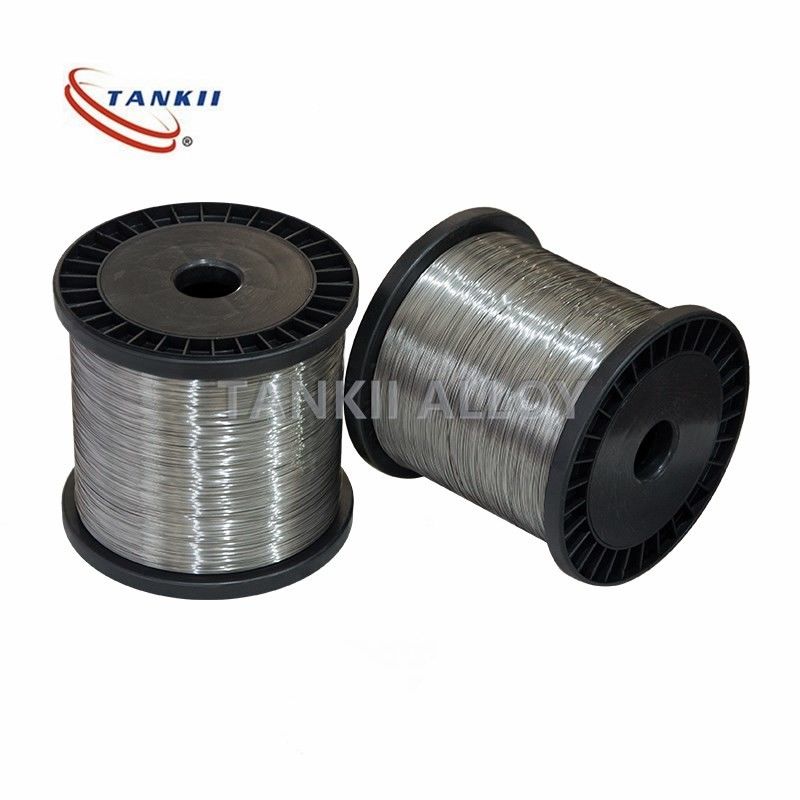

FeCr25Al5 wire Electrical High Temperature Heating Wire

FeCr25Al5 wire Electrical High Temperature Heating Wire
1 Introduction for FeCrAl alloy heating wireD

Fe-Cr-Al alloy heating wire is mainly composed of ferrum,chromium,aluminium. It is widely used in various in many industries, such as metallurgical, chemical, glass, ceramic, and electrics for instance.

2 Features

Features of FeCrAl alloy heating wire 0Cr25Al5
1	An excellent resistance to oxidation under heat
2	A limitation of intergranular oxidation
3	High electric resistance and long lifetime
4	Good performance of anti-carburizing, the atmosphere and surface of sulfur pollution

3 Application

Applications of FeCrAl heating alloy wire
1	industrial and civil heating-furnace
2	infrared equipment
3	liquefied gas infrared heat-resisting net
4	different kinds of igniting and radiating electrodes and voltage-regulating resistors for motors

4 Size

Size
Wires	0.018-10mm
Ribbons	0.050.2-2.06.0mm
Strips	0.55.0-5.0250mm
Bars	D10-100mm

Chemical Content, %

C	P		S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06		0.025	0.020	0.50	≤0.6	23.0-26.0	≤0.60	4.5-6.5	Balance	-

Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20ºC:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

1250ºC
1.42+/-0.07ohm mm2/m
7.10g/cm3
46.1 KJ/m·h·ºC
15.0×10-6/ºC (20ºC~1000ºC)
1500ºC
Min 12%
Ferrite
magnetic

Temperature Factor of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1.000	1.002	1.005	1.008	1.013	1.021	1.030

700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.038	1.040	1.042	1.044	1.046	1.047	1.047

Please contact us with your special requirements. We are pleased to contact you if you would like more information or want to discuss custom product availability and pricing.

If you have any requirement, pls be free to contact with us.
