Product Details
Place of Origin: China Mainland
Brand Name: TANKII
Certification: ISO9001
Model Number: NiCr6015, NiCr8020
Payment & Shipping Terms
Minimum Order Quantity: 1kg to 10kg
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 3~20 days after getting the payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 tons/year
Item: |
0.04mm To 10mm Heating Wire For Ceramic Heating Core |
Size: |
0.06mm To 10mm |
Application: |
Ceramic Heating Core, Resistor, Heating Wire |
MOQ: |
One Spool |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 -10 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Shanghai Tankii |
Item: |
0.04mm To 10mm Heating Wire For Ceramic Heating Core |
Size: |
0.06mm To 10mm |
Application: |
Ceramic Heating Core, Resistor, Heating Wire |
MOQ: |
One Spool |
Package: |
Bobbin, Spools, Carton Box |
Leading Time: |
3 -10 Dyas After Getting The Payment |
Certificate: |
Mill's Test Certificate |
Supplier: |
Shanghai Tankii |
0.04mm To 10mm Heating Wire For Ceramic Heating Core
Tankii's main products include Iron chromium aluminum and nickel chromium alloy.
Various types and specifications of resistance heating wire, resistance strip are widely used in industrial furnace, civil electrical appliances, rail transit braking resistor, central grounding resistance, automobile exhaust purification honeycomb carrier and other fields.
Tankii Resistance wire is intended for making electrical resistors, or heating elements.
It is better if the alloy used has a high resistivity, since a shorter wire can then be used.
In many situations, the stability of the resistor is of primary importance, and thus the alloy's temperature coefficient of resistivity and corrosion resistance play a large part in material selection.
There are inventories for your choosing:
Resistance wire Stiock size: nicr8020 -0.056mm, 0.061mm, 0.071mm and 0.08mm thinner than human hair
Main application:
1. new energy material roller kiln,
2. kiln heating,
3. regenerative boiler
4. Metallurgical machinery,
5. industrial electric furnace wire,
6. ceramic heating core,
7. household electric furnace,
8. test furnace,
9. hot air gun
Tankii mainly supplies the following Types of resistance wire:
1. Nichrome alloy wire
2. FeCrAl (iron-chromium-aluminium) alloy wire
3. Constantan wire
4. Copper Nickel alloy wire
5. Manganin wire
Parameters of resistance wires:
Nichrome alloy wire:
|
Performance/
material
|
Cr10Ni90
|
Cr20Ni80
|
Cr30Ni70
|
Cr15Ni60
|
Cr20Ni35
|
Cr20Ni30
|
|
|
Composition
|
Ni
|
90
|
Rest
|
Rest
|
55.0-61.0
|
34.0-37.0
|
30.3-34.0
|
|
Cr
|
10
|
20.0-23.0
|
28.0-31.0
|
15.0-18.0
|
18.0-21.0
|
18.0-21.0
|
|
|
Fe
|
--
|
≤1.0
|
≤1.0
|
Rest
|
Rest
|
Rest
|
|
| Max. continuous service temp. of element(ºC) | 1200 | 1200 | 1250 | 1150 | 1100 | 1100 | |
|
Melting Point
|
1400
|
1400
|
1380
|
1390
|
1390
|
1390 |
|
|
Resistivity
|
--
|
1.09+-0.05
|
1.18+-0.05
|
1.12+-0.05
|
1.00+-0.05
|
1.04+-0.05
|
|
|
Density (g/cm3)
|
8.7
|
8.4
|
8.1
|
8.2
|
7.9
|
7.9
|
|
|
Elongation at rupture
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
≥20
|
|
| T.S.(MPa) | ≥490 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | |
Introduction of the company:
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, Nickel Aluminum Alloy, Manganin, Copper Nickel Alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate.

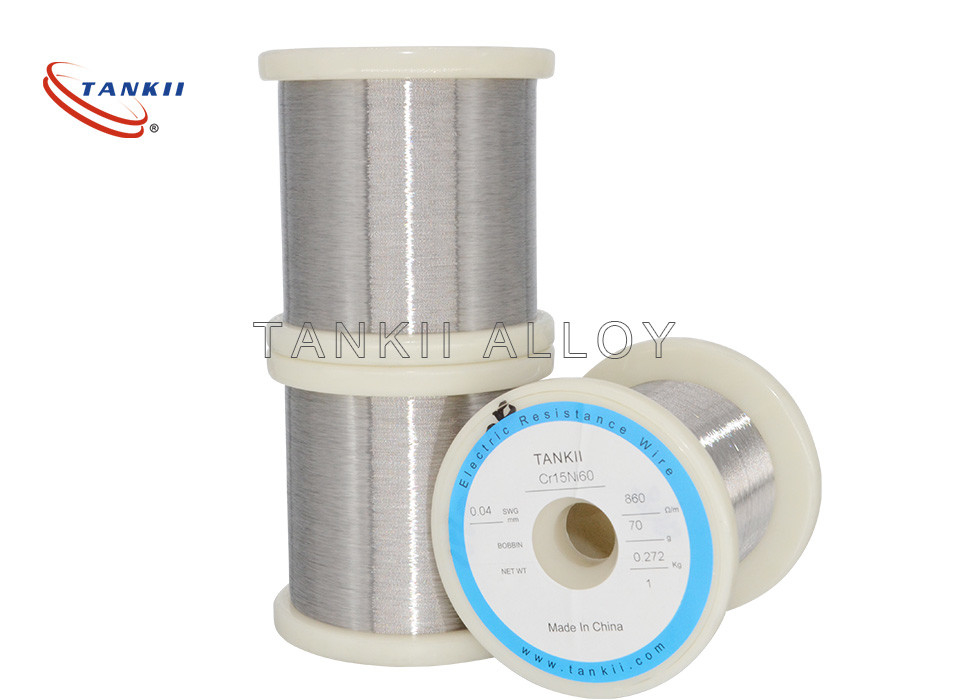

Resistance wire pictures:
Package of resistance wire :
Please call me at +86-18017475212 or email to me for more information on NiChrome products.
