Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: NiCr 60/15
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: 15-30$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Application: |
Heating |
Conductor Material: |
Copper |
Type: |
Low Voltage |
Insulation Material: |
Pvc |
Jacket: |
Rubber |
Color: |
As Required |
Insulation: |
Silicone Rubber |
Rated Voltage: |
300/500v |
Conductor Type: |
Solid |
Standard: |
IEC |
Application: |
Heating |
Conductor Material: |
Copper |
Type: |
Low Voltage |
Insulation Material: |
Pvc |
Jacket: |
Rubber |
Color: |
As Required |
Insulation: |
Silicone Rubber |
Rated Voltage: |
300/500v |
Conductor Type: |
Solid |
Standard: |
IEC |

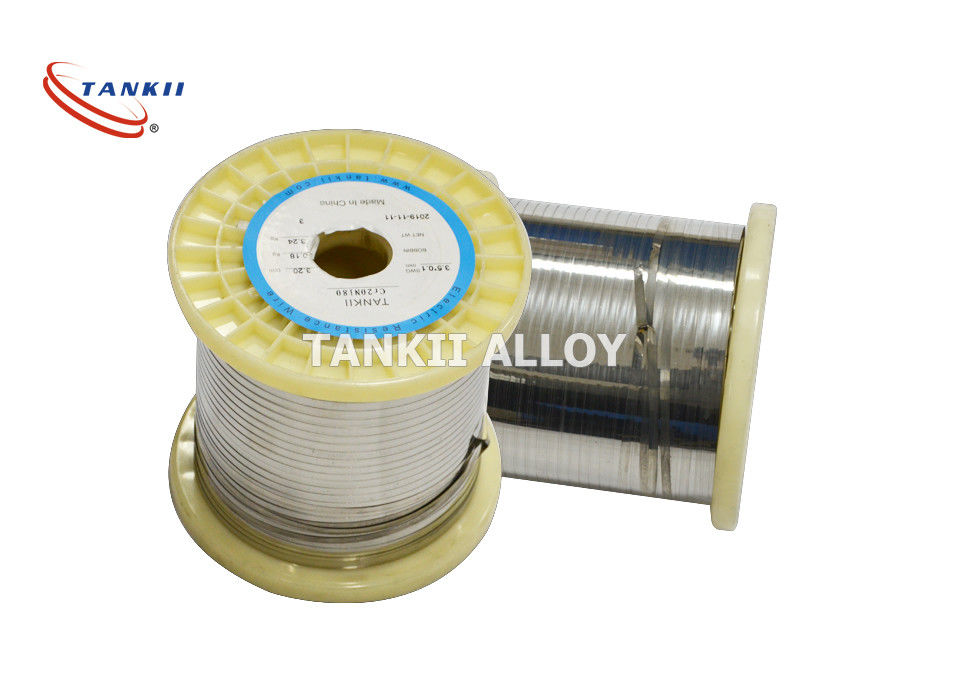

NiCr 60/15 Nichrome Resistance Wire for PTC Heater
Chemical Content %: 60.00 Nickel, 15.00 Chrome, Bal. Fe
Diameter 0.025mm~20mm
Resisivity: 1.12 ohm mm2/m
Max continuous service temperature: 1150 C
Density: 8.2g/cm3
Melting point: 1390 C
Shanghai Tankii Alloy Material Co., Ltd.
Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma
Chemical Composition and Properites:
| Properties/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition(%) | Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. | |
| Max Working Temperature(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μ Ω · m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity (KJ/m· h· ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α * 10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
