Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm

Name: Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1J85
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: 1J85

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	79HMA	Carbon Content:	Low Carbon
Curie Point:	400	Resistivity:	0.56
Density:	8.75	Saturation Magnetostriction Coefficient:	0.5
Transport Package:	Wooden Case	HS Code:	750522000

Model NO.:	79HMA
Carbon Content:	Low Carbon
Curie Point:	400
Resistivity:	0.56
Density:	8.75
Saturation Magnetostriction Coefficient:	0.5
Transport Package:	Wooden Case
HS Code:	750522000

Description

Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.

Chemical composition

composition	C	P	S	Mn	Si
	≤
Content(%)	0.03	0.02	0.02	0.3~0.6	0.15~0.3

composition	Ni	Cr	Mo	Cu	Fe
Content(%)	79.0~81.0	-	4.8~5.2	≤0.2	Bal

Heat treatment system

shop sign	Annealing medium	heating temperature	Keep the temperature time/h	Cooling rate
1j85	Dry hydrogen or vacuum, pressure is not greater than 0.1 Pa	Along with the furnace heating up 1100~1150ºC	3~6	In 100 ~ 200 ºC / h speed cooling to 600 ºC, fast to 300 ºC draw a charge

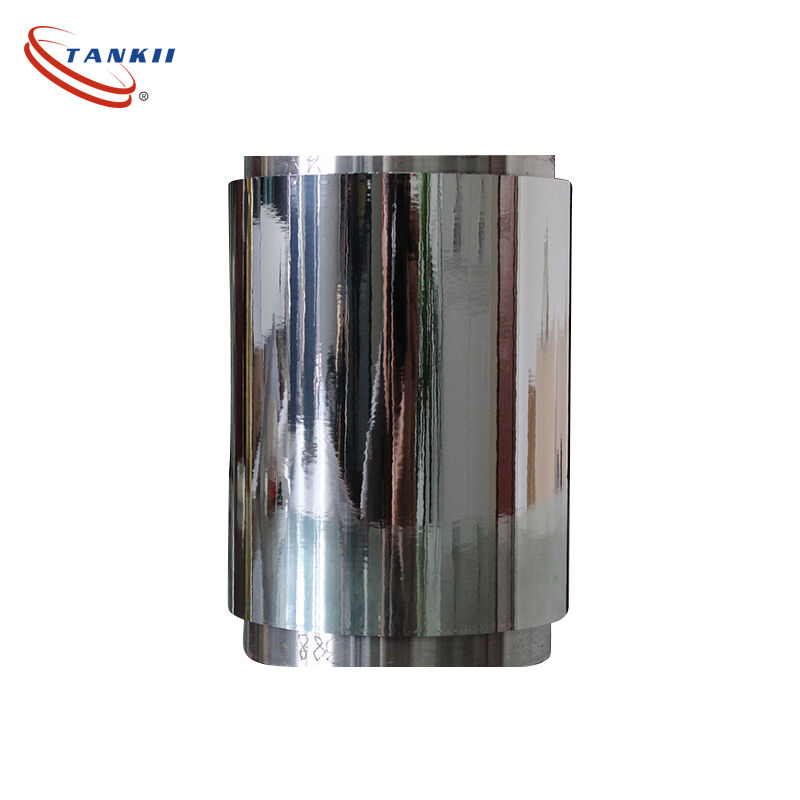

Permalloy FeNi80Mo5 1J85 Foil 0.02*200mm 0
