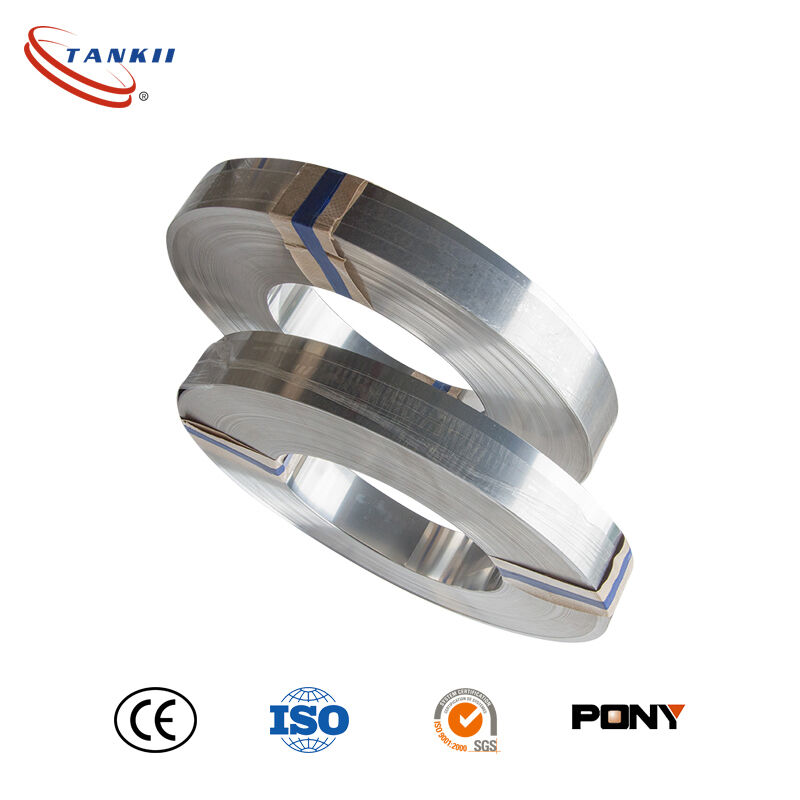

1J80 Soft Magnetic Alloy Precision Alloy Strip with High Magnetic Permeability Low Core Loss and 0.1~10mm Diameter

Name: 1J80 Soft Magnetic Alloy Precision Alloy Strip with High Magnetic Permeability Low Core Loss and 0.1~10mm Diameter
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1J80
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: 1J80

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 3000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          1J80 soft magnetic alloy strip, precision alloy magnetic strip, high performance soft alloy strip


Model.:	1J80	Condition:	Soft / Hard
Certificate:	Magnetic( Permeability And Magnetic Induction)	Diameter:	0.1~10mm
Transport Package:	Wooden Case	Production Capacity:	3000 Tons/Year
HS Code:	750522000

Model.:	1J80
Condition:	Soft / Hard
Certificate:	Magnetic( Permeability And Magnetic Induction)
Diameter:	0.1~10mm
Transport Package:	Wooden Case
Production Capacity:	3000 Tons/Year
HS Code:	750522000

Description

1J80 Soft Magnetic Alloy Precision Alloy Strip with High Magnetic Permeability Low Core Loss and 0.1~10mm Diameter

Soft magnetic alloys 1J80 / FeNi 80 / Ni80Cr3Si:

Mainly used in two areas for energy conversion and information processing

In the power industry, mainly in the high magnetic field has a high magnetic induction and low core loss of the alloy. In the electronics industry, mainly at low or medium alloy having a high magnetic permeability and low coercive force. At high frequencies shall be made on a thin strip or alloy higher resistivity. Usually with sheet or strip.

Soft magnetic materials in exchange for use, due to the alternating magnetic eddy currents are induced inside the material, resulting in the loss, the smaller the resistance of the alloy, the greater the thickness, the higher the frequency of the alternating magnetic field, eddy current losses greater, magnetic reduce more. For this, the material must be made thinner sheet (tape), and the surface coated with an insulating layer, or the use of certain methods to the surface to form an oxide insulating layer, such alloys commonly used magnesium oxide electrophoresis coating.

Iron-nickel alloy mostly in the alternating magnetic field use, mainly for yoke iron, relay, Small Power Transformers and Magnetically shielded.

composition	C	P	S	Mn	Si
	≤
Content(%)	0.03	0.02	0.02	0.60~1.10	1.10~1.50

composition	Ni	Cr	Mo	Cu	Fe
Content(%)	79.0~81.5	2.60~3.00	-	≤0.2	Bal
