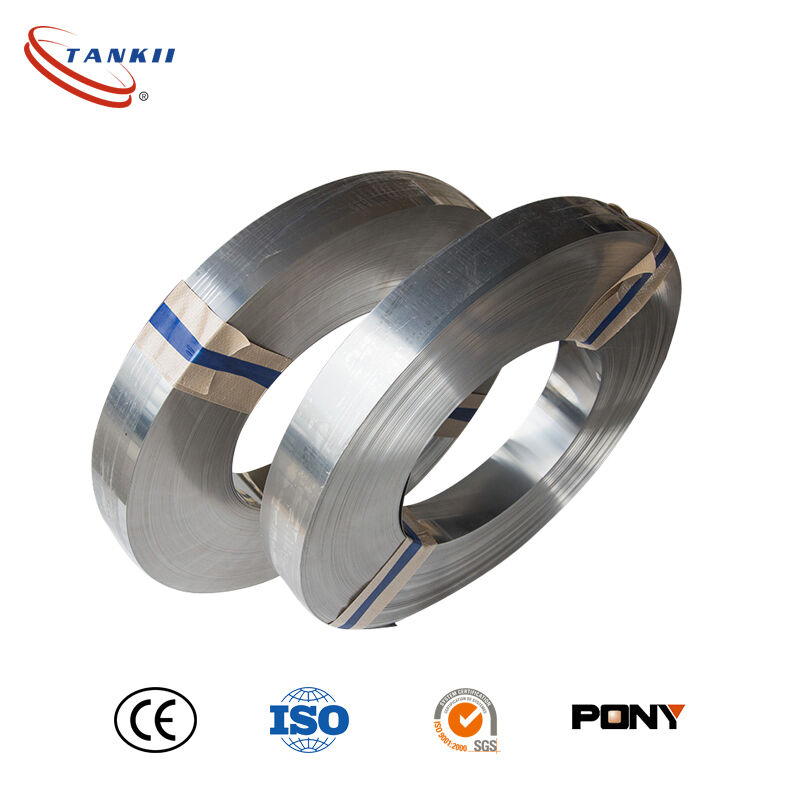

1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size

Name: 1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1J79
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: 1J79

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Permalloy ribbon soft magnetic alloy, Precision 1j22 permalloy strip, 1j79 high performance alloy ribbon


Model NO.:	1J79	Surface:	Bright/ Dard
Specification:	RoHS, SGS	Condition:	Soft/ Hard
Transport Package:	Inner Core, Waterproof Paper, Wooden Case	HS Code:	722699900
Origin:	China	Size:	Customized

Model NO.:	1J79
Surface:	Bright/ Dard
Specification:	RoHS, SGS
Condition:	Soft/ Hard
Transport Package:	Inner Core, Waterproof Paper, Wooden Case
HS Code:	722699900
Origin:	China
Size:	Customized

Description

1J50 High Saturation Magnetic Induction Permalloy Ribbon Soft Magnetic Alloy Strip in Customized Size

1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) Chemical Composition:(%)

Name

1J50 50Ni-Fe

(Permenorm 5000 Z)

49-51

Balance

0.30-0.60

0.15-0.30

≤0.03

Magnetic Properties (DC AC 50Hz)

Material

Saturation Induction

(at 80A/m)

Coercive Force

Initial Permeability

(at 0.4A/m)

Maximum Permeability

1J50 50Ni-Fe

(Permenorm 5000 Z)

1.5T

(15 000Gs)

≤9.60A/m (0.12Oe)

≥3.8mH/m

(3 040Gs/Oe)

≥62.5mH/m

(50 000Gs/Oe)

Physical Properties

Density	8.25 g/cm³
Electrical resistivity	0.47 Ohm mm²/ m
Melting point	1430°C
Curie temperature	485°C
Coefficent of Thermal Expansion(20-200°C)	8.4 · 10-6/K

1J50 50Ni-Fe(Square Orthonol / Permenorm 5000 Z) has rectangular hysteresis loop and high saturation magnetic induction, is mainly used to worked at a moderate magnetic field magnetic amplifier, choke ring, rectifier circle, as well as the computer device components.

Type	Class	Thickness or diameter, mm	The initial magnetic permeability		Maximum magnetic permeability		Coercive force		Technical saturation induction
			mH / m	G / E	mH / m	G / E	/	E	(10-4 G)
			No more				No more		No less
cold-rolled strips	1	0,05 0,08	2,5	2000	25	20000	20	0,25	1,50
		0,10 0,15	2,9	2300	31	25000	16	0,20
		0,20 0,25 0,27	3,3	2600	38	30000	12	0,15
		0,35 0,50	3,8	3000	44	35000	10	0,12
		0,80 1,0	3,8	3000	38	30000	12	0,15
		1,5 2,0 2,5	3,5	2800	31	25000	13	0,16
hot rolled sheets		3-22	3,1	2500	25	20000	24	0,30
Bars		8-100	3,1	2500	25	20000	24	0,30
cold-rolled strips	2	0,10 0,15	3,8	3000	38	30000	14	0,18
		0,20 0,25	4,4	3500	44	35000	12	0,15
		0,35 0,50	5,0	4000	56	45000	10	0,12
		0,80 1,0	5,0	4000	50	40000	10	0,12
		1,5 2,0	3,8	3000	44	35000	12	0,15
cold-rolled strips	3	0,05 0,10 0,20	12,5 *	10000 *	75	60000	4,0	0,05	1,52
