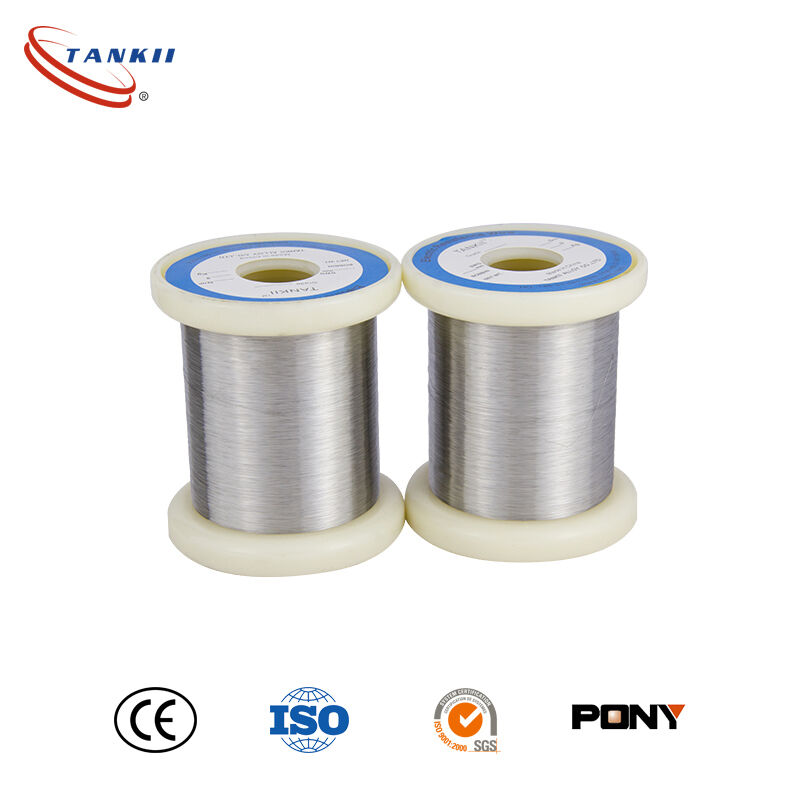

Ultra-fine 0.015mm Ni80Cr20 resistance wire

Name: Ultra-fine 0.015mm Ni80Cr20 resistance wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Carton box

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	Ni80Cr20	Application:	Resistance Materials
Density:	8.4	Features:	High Resistivity
Tensile Strength:	750	Thermal Conductivity:	60.3
Micrografic Structure:	Austenite	Min Nickel Purity:	79.5%
Carbon Content:	Low Carbon	Resistivity:	1.09
Melting Point:	1400	Min Elongation:	20%
Max Continuous Temperature:	1200	Hardness:	180

Model NO.:	Ni80Cr20
Application:	Resistance Materials
Density:	8.4
Features:	High Resistivity
Tensile Strength:	750
Thermal Conductivity:	60.3
Micrografic Structure:	Austenite
Min Nickel Purity:	79.5%
Carbon Content:	Low Carbon
Resistivity:	1.09
Melting Point:	1400
Min Elongation:	20%
Max Continuous Temperature:	1200
Hardness:	180

Description

Ultra-fine 0.015mm Ni80Cr20 resistance wire

Nickel-chromium alloy, nickel chromium iron alloy with high resistivity, surface oxidation resistance is good, and have higher strength at high temperature, good processability and weldability, which can be widely used in metallurgy, electrical appliances, machinery manufacturing, etc do resistance material heating elements and electrical industry.
Our company strip width production range 3-300mm thickness range 0.01~3mm
Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance

brand	Cr	Ni	Al	Fe	C	P	S	Mn	Si
					≤
Ni80Cr20	20.0~23.0	Remain	≤0.5	≤1	0.08	0.02	0.15	0.60	0.75~1.6

brand	highest use temperature/ºC	Melting point/ºC	density (g/cm³)	resistivity/(μΩ·M)	elongation(%)	Coefficient of thermal conductivity	Linear expansion coefficient of	microstructure	magnetic
Ni80Cr20	1200	1400	8.40	1.09	≥20	60.3	18.0	austenitic	no magnetic

Mechanical properties

brand	Tensile strength/Mpa
Ni80Cr20	637~786

Use time test

brand	Test temperature/ºC	time/h
Ni80Cr20	1200	80

Ultra-fine 0.015mm Ni80Cr20 resistance wire 0
