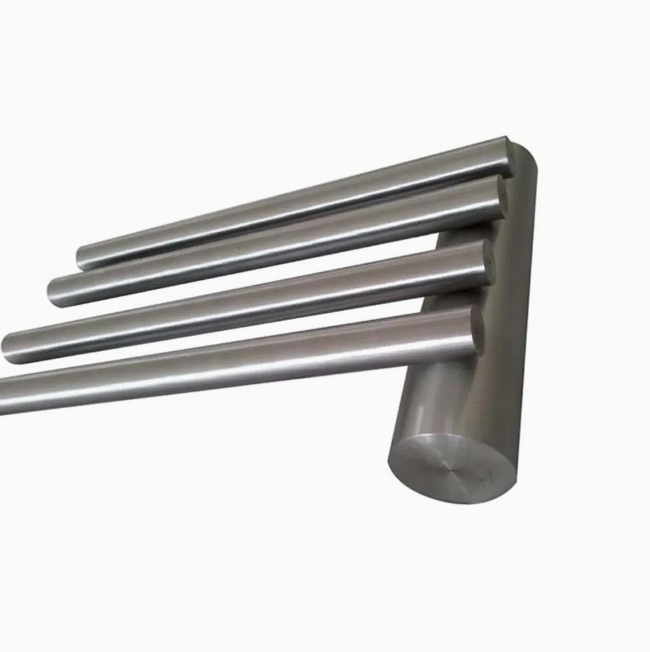

Factory Polished Molybdenum Rod and Bar with >99.95% Purity for High Temperature Heating up to 2200ºC ASTM B386-91 Standard

Name: Factory Polished Molybdenum Rod and Bar with >99.95% Purity for High Temperature Heating up to 2200ºC ASTM B386-91 Standard
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Molybdenum Rod
Price: 41.00 USD
Availability: InStock

Product Details

Brand Name: Tankii

Model Number: Molybdenum Rod

Payment & Shipping Terms

Minimum Order Quantity: 100kg

Price: US$28.00 - 55.00

Packaging Details: case

Delivery Time: 7 work days

Payment Terms: MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability: 1500tons/Year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  >99.95% Purity Molybdenum Rod, 2200ºC Service Temperature Molybdenum Bar, ASTM B386-91 Standard Molybdenum Rod


Model NO:	Molybdenum Rod	Purity:	>99.95%
HS Code:	7505220000	Transport Package:	DIN Spool, Carton, Wooden Case
Production Capacity:	1500tons/Year

Model NO:	Molybdenum Rod
Purity:	>99.95%
HS Code:	7505220000
Transport Package:	DIN Spool, Carton, Wooden Case
Production Capacity:	1500tons/Year

Description

Factory Polished Molybdenum Rod and Bar with >99.95% Purity for High Temperature Heating up to 2200ºC ASTM B386-91 Standard

Factory Polished Molybdenum Rods Mola High Temperature Heating Molybdenum Bar

Molybdenum belongs to the group of refractory metals, which are characterized by a higher melting point than platinum (1772°C). These metals exhibit exceptional binding energy between atoms, resulting in unique properties including high melting point, low vapor pressure, high modulus of elasticity, and excellent thermal stability. Molybdenum stands out with its combination of low thermal expansion coefficient, high density, and superior thermal conductivity, making it ideal for demanding industrial applications.

Key Applications

Aluminum wire applications: Profile cutting, H2 furnace components, heater rod guide rods, hooks, mandrels, and leads
High-temperature equipment manufacturing: Furnace brackets, guide rods, heating rods, and structural components
Molybdenum wire uses: High-temperature heat fields in aluminum furnaces, electronic tube sockets, and as heating elements in high-temperature furnaces

Molybdenum Properties

Exceptional melting point of 2623°C with outstanding creep resistance
Low coefficient of thermal expansion combined with excellent thermal conductivity
Minimal vapor pressure - critical for refractory and vacuum applications
Maintains physical strength at elevated temperatures
High dimensional stability under thermal loads
Superior electrical and thermal conductivity
Selective corrosion resistance for specialized applications

Technical Specifications

Property	Value
Tensile strength	610 MPa
Rate of elongation	≥10%
Purity	≥99.95%
Service temperature	1800°C~2200°C
Standards	ASTM B386-91, GB/T3876-83
Available Brands	MO1, TZM, MLA, 361, 364
Processing Methods	Hot rolling, cold rolling, alkali washing, shear

Product Range

Our comprehensive molybdenum product line includes: molybdenum slabs, plates, bars, electrodes, wires, sheets, foils, rods, circles, rings, flanges, cylinders, bolts, screws, nuts, gaskets, capillaries, boats, crucibles, standard parts, special-shaped parts, targets, springs, fixtures, and various vacuum furnace components. We also offer specialized molybdenum alloys including TZM and molybdenum-lanthanum alloys.

Product Images

We provide custom manufacturing services and can produce samples according to customer specifications and drawings.
