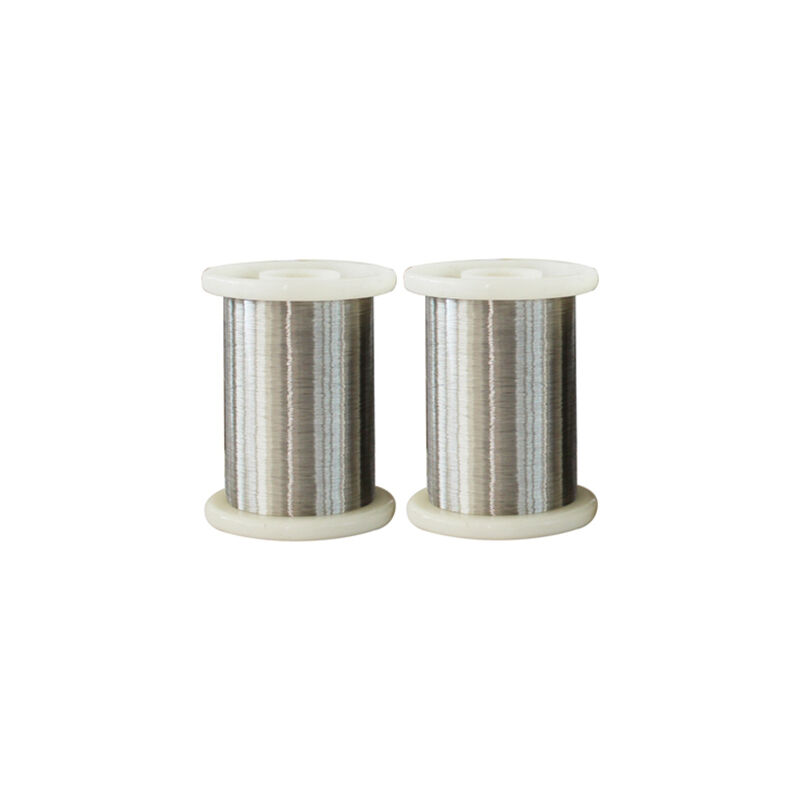

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)

Name: 0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: K Type)
Price: 25.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: K Type)

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: 20-30USD/Kg

Packaging Details: csae

Delivery Time: 10-30days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 5000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  K type thermocouple bare wire, Chromel Alumel thermocouple wire, 0.03mm K type thermocouple


Dia:	0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm	Surface:	Bright/ Oxidized
Grade:	I/II/III	Tensile Strength:	390
Item:	Bare Wire Thermocouple Wire (K Type)

Dia:	0.3/0.5/0.8/1.0/1.2/1.6/2.0/2.5/3.2mmm
Surface:	Bright/ Oxidized
Grade:	I/II/III
Tensile Strength:	390
Item:	Bare Wire Thermocouple Wire (K Type)

Description

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)

Chromel Alumel Bare wire Thermocouple Wire (K Type)
NiCr-Ni/NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.
Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.
NiCr-NiAl thermocouple wire can be produced as per the chemical composition requirement of the customers.
Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Detailed Parameter

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Si
Ni-Cr	Positive	KP	90	10	--
Ni- Si	Negative	KN	97	--	3

Working Temperature
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3	700	800
0.5	800	900
0.8,1.0	900	1000
1.2,1.6	1000	1100
2.0,2.5	1100	1200
3.2	1200	1300

0.03mmChromel Alumel Bare Wire Thermocouple Wire (K Type)
