0Cr25Al5 Fecral Alloy Wire For drawing

Name: 0Cr25Al5 Fecral Alloy Wire For drawing
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr25Al5
Price: 3.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 10Kg

Price: 3.5-4.5USD/Kg

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 10ton/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  0Cr25Al5 FeCrAl alloy wire for drawing, high-temperature FeCrAl alloy wire, drawing-grade FeCrAl alloy wire


Use:	Resistor	Surface:	Bright
Diameter:	0.05-10mm	Package:	Cartoon Box
MOQ:	10kg

Use:	Resistor
Surface:	Bright
Diameter:	0.05-10mm
Package:	Cartoon Box
MOQ:	10kg

Description

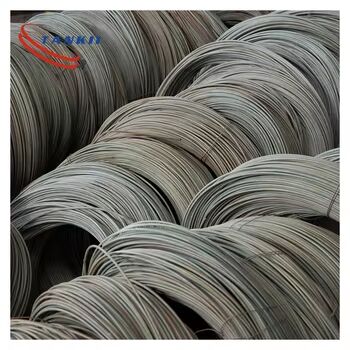

0Cr25Al5 Fecral Alloy Wire For drawing

Hot Sale 0Cr25Al5 Fecral Alloy Wire for Heating Element

0Cr25Al5 is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.

Typical applications for 0Cr25Al5 are used in electric ceramic cooktop,industrial furnace,heaters

Normal composition%

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.06	0.025	0.025	0.70	Max 0.60	23.0~26.0	Max 0.60	4.5~6.5	Bal.	-

Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
500	700	23

Typical Physical properties

Density (g/cm3)	7.10
Electrical resistivity at 20ºC(ohm mm2/m)	1.42
Conductivity coefficient at 20ºC (WmK)	13

Coefficient of thermal expansion

Temperature	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	15

Specific heat capacity

Temperature	20ºC
J/gK	0.46
Melting point (ºC)	1500
Max continuous operating temperature in air (ºC)	1250
Magnetic properties	magnetic

0Cr25Al5 Fecral Alloy Wi</p>
