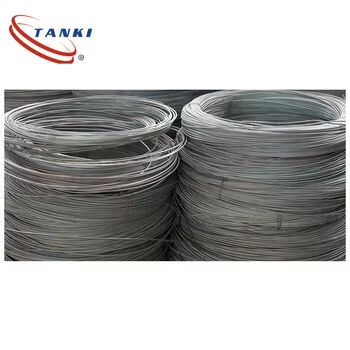

Fecral 235 0cr23al5/0cr25al5 Used For Household appliances

Name: Fecral 235 0cr23al5/0cr25al5 Used For Household appliances
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0cr23al5/0cr25al5
Price: 4.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: 0cr23al5/0cr25al5

Payment & Shipping Terms

Minimum Order Quantity: 25kg

Price: 3.5-5.5USD/kg

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: T/T,Western Union,D/P,D/A,L/C

Supply Ability: 5yons/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          Fecral 235 alloy wire for appliances, 0Cr23Al5 resistance heating wire, Copper nickel alloy wire with warranty


MOQ:	25kg	Size:	0.03-10mm
Material:	0cr23al5

MOQ:	25kg
Size:	0.03-10mm
Material:	0cr23al5

Description

Fecral 235 0cr23al5/0cr25al5 Used For Household appliances

Fast Delivery Fecral 235 0cr23al5/0cr25al5 Used For Household appliances

About Resistance Heating Wire:
We are the greatest professional manufacturer of resistance heating alloy in China, specializing in Ferro-Chrome (Fe-Cr-AL) wire, Nickel-Chrome (Nichrome) wire, Copper Nickel (Constantan) wire, Stainless steel wire and related products in alloys tailored to meet specific customer requirements
Size details

Product name	Size range
Cold drawing wire	Diameter 0.03-7.5mm
Hot-rolled wire rod	Diameter 8.0-12mm
Ribbon	Thickness 0.05-0.35mm
Ribbon	Width 0.5.0-3.5mm
Cold rolled strip	Thickness 0.5-2.5mm
Cold rolled strip	Width 5.0-40mm
hot rolled strip	Thickness 4-6mm
hot rolled strip	Width 15-40mm

Main Property of FeCrAl Electric Resistance Heating wire

Grades Properties		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Chemical composition %	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Fe	Balance	Balance	Balance	Balance	Balance	Balance	Balance
	Other						Nb 0.5	Mo1.8-2.2
Highest service temperature °C		950	1250	1250	1250	1100	1350	1400
ResistivityμΩ.M,20°C		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density (g/cm3 )		7.4	7.10	7.16	7.25	7.35	7.10	7.10
Thermal conductivity KJ/m.H.°C		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of linear extensibility Α×10-6/°C		15.4	16.0	14.7	15.0	13.5	16.0	16.0
Melting point °C		1450	1500	1500	1500	1500	1510	1520
Tensile Mpa		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation %		>16	>12	>12	>12	>12	>12	>10
Reduction %		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Hardness H.B.		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Microstructure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite

Main Advantage and Application

It widely used in surtur and sulfide environment and producing industrial electric furnace, household electrical appliance and far infrared ray device.

Low price with high electric resistance, low temperature cofficient of resistance, high working temperature and good corrosion resistance under high temperature
