1.6mm 2.0mm 3.17mm FeCrAl Alloy Wire for Thermal Spray Coating

Name: 1.6mm 2.0mm 3.17mm FeCrAl Alloy Wire for Thermal Spray Coating
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Tafa Alcro Wire
Price: 4.5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: -

Model Number: Tafa Alcro Wire

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: 4.5

Packaging Details: case

Delivery Time: 15-20days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 500 Tons/Year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  Tafa Alcro Cr23al5 alloy wire, 1.6mm Cr23al5 resistance wire, 3.17mm copper nickel alloy wire


Model NO.:	Alcro	PCD:	Fecral
Specification:	1.6mm, 2.0mm, 3.17mm	Certificate:	ISO9001
Production Capacity:	500 Tons

Model NO.:	Alcro
PCD:	Fecral
Specification:	1.6mm, 2.0mm, 3.17mm
Certificate:	ISO9001
Production Capacity:	500 Tons

Description

1.6mm 2.0mm 3.17mm FeCrAl Alloy Wire for Thermal Spray Coating

1.6mm 2.0mm 3.17mm Tafa Alcro Cr23al5 Alloy Wire

Product Specifications

Attribute	Value
Model NO.	Alcro
PCD	Fecral
Specification	1.6mm, 2.0mm, 3.17mm
Certificate	ISO9001
Production Capacity	500 Tons

Product Description

Wisdom Brand FeCrAl Wire is designed for thermal spray coating applications, offering excellent high-temperature performance up to 1400°C (2550°F). This iron-chromium-aluminium alloy provides superior oxidation resistance and strong bonding characteristics, making it suitable for diverse industrial applications.

Equivalent to: TAFA Alcro PMET731

Typical Applications

Corrosion and oxidation resistant coatings
Wear resistance applications (erosion and abrasion)
Machine element repair and restoration
Marine environment protection (resistance to chloride-ion attack)
Alternative to hard chrome plating
Bond coats in high-temperature coating systems
Protection against sulfur-containing atmospheres
Scaling prevention for conventional low alloy steels

Chemical Composition

Element	Percentage
Cr	23.5%
Al	5.3%
Mn	0.45%
Fe	Balance
Si	0.7%

Physical Properties

Grade	Density	Electrical Resistivity at 20°C (Ω mm²/m)	Dimension Tolerance (mm)	Melting Point
Cr23Al5	7.25g/cm³	1.35	0/-0.05	1500°C
Cr25Al5	7.10g/cm³	1.42	-	-

Deposit Characteristics

Typical Hardness	Bond Strength	Deposit Rate	Deposit Efficiency	Machinability
HRB 85-90	6300 psi	10 lbs/hr/100A	70%	Good

Standard Sizes & Packaging

Diameter	Packaging	Wire Weight

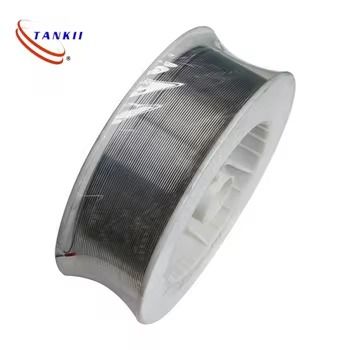

1/16" (1.6mm)	D 300 Spool	15kg (33 lbs)/spool

Custom sizes available upon request.
