Fecral Alloy Resistance Heating Wire 0Cr25Al5 High Temperature

Name: Fecral Alloy Resistance Heating Wire 0Cr25Al5 High Temperature
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ocr15al5
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: -

Model Number: Ocr15al5

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 50KG

Price: 5

Packaging Details: case

Delivery Time: 15-20days

Payment Terms: L/C,D/A,D/P,T/T,MoneyGram,Western Union

Supply Ability: 5000 Annually

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Heat resistant copper nickel alloy wire, Ocr15al5 alloy wire 0.05-10mm, High temperature resistant alloy wire


Sample:	Sample Available	Diameter:	0.05 -10.0mm
Port:	Shanghai	Manufacturer:	Tankii Alloy
Magnetic:	Non-magnetic	Corrosion Resistance:	Excellent
Production Capacity:	300 Ton/Month

Sample:	Sample Available
Diameter:	0.05 -10.0mm
Port:	Shanghai
Manufacturer:	Tankii Alloy
Magnetic:	Non-magnetic
Corrosion Resistance:	Excellent
Production Capacity:	300 Ton/Month

Description

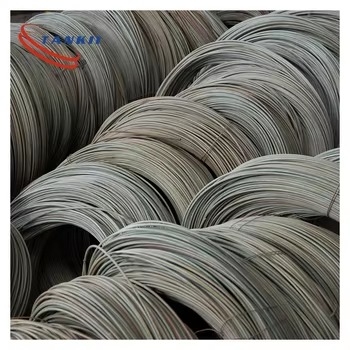

Fecral Alloy Resistance Heating Wire 0Cr25Al5 High Temperature

High Temperature Fecral Alloy Resistance Heating Wire

Product Specifications

Sample	Sample Available
Diameter	0.05 - 10.0mm
Port	Shanghai
Manufacturer	Tankii Alloy
Magnetic	Non-magnetic
Corrosion Resistance	Excellent
Production Capacity	300 Ton/Month

Product Description

Our Fecral Alloy Resistance Heating Wire is available in various grades including 1Cr13Al4, 0Cr25Al5, 0Cr23Al5, 0Cr21Al6, 0Cr21Al4, 0Cr21Al6Nb, and 0Cr27Al7Mo2. These Fe-Cr-Al alloys feature high resistivity, low temperature resistance coefficient, excellent high-temperature operation capabilities, and superior anti-oxidation and anti-corrosion properties.

These wires are widely used in industrial furnaces, household appliances, metallurgy, machinery, aerospace, automotive, and other industries for manufacturing heating elements and resistance components.

Technical Specifications

Alloy Nomenclature Performance	1Cr13AL4	0Cr25Al5	0Cr21AL6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Main Chemical composition	opportune	opportune	opportune	opportune	opportune	opportune	opportune
Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
						Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(ºC)	950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ/m)	1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)	7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m.h.ºC)	52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of lines expansion(α*10-6/ºC)	15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)	1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)	580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)	>16	>12	>12	>12	>12	>12	>10
Variation of area(%)	65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)	>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)	200-260	200-260	200-260	200-260	200-260	200-260	200-260
continuous service time(Hours/ ºC)	--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic
