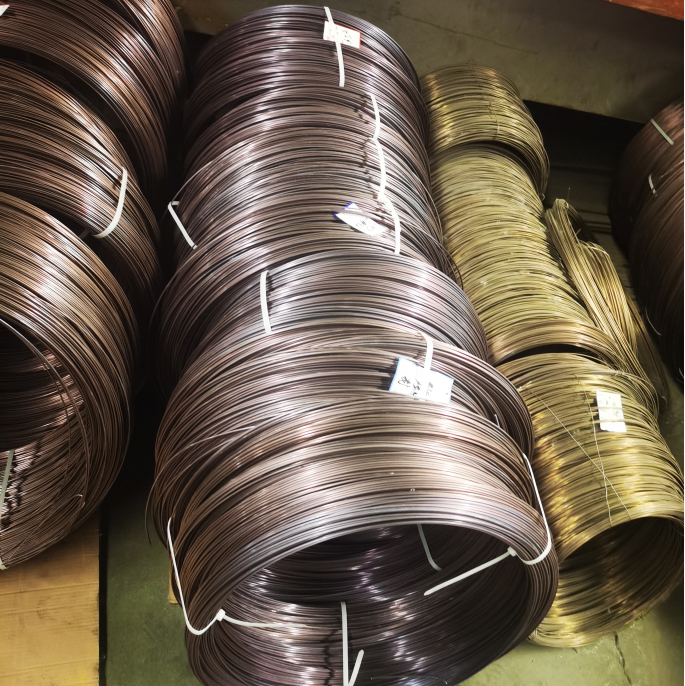

Fecral Electric Heating Wire for Ovens High Temperature Resistance

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: APM

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    Fecral oven heating wire, High temperature resistance heating wire, FeCrAl alloy electric wire


Model:	TK APM	Material:	FECRAL
Max. Use Temperature:	1420	Density:	7.1 G/cm3
Specification:	0.1-10.0 Mm	Production Capacity:	300 Ton/Month

Model:	TK APM
Material:	FECRAL
Max. Use Temperature:	1420
Density:	7.1 G/cm3
Specification:	0.1-10.0 Mm
Production Capacity:	300 Ton/Month

Description

Fecral Electric Heating Wire for Ovens High Temperature Resistance

TKYZ product is a new product developed after TK1 product, which has been widely used in high temperature electric heating alloy materials in recent years. Compared with TK1, its purity is further improved and its oxidation resistance is further optimized. With the special rare earth element combination and unique metallurgical manufacturing process, the material has been recognized by domestic and foreign customers in the field of high temperature and heat resistant fibers. Successful application in ceramic sintering, diffusion furnaces, industrial furnaces with high power density and high temperature.

MAIN CHEMICAL ELEMENTS AND PROPERTIES

Properties Grade						HNYZ
Properties Grade			Cr	Al		C	Si
		20-23		5.8		≤0.04	≤0.4
Max Continuous Service Temperature(ºC)			1425
Resisivity 20ºC (μ.Ω.m)					1.45
	Density(g/cm³)				7.1
Tensile Strengtht(N/mm²)					650-800
	Elongation (%)				>14
High Temperature Strength(MPa) at 1000℃					20
Fast Life at 1350 ℃				More than 80 hours

The Emissivity Of The Fully Oxidized State					0.7

Average Linear Expansion Coefficient

Temperature ℃	Average thermal expansion coefficient×10-6/k
20-250	11
20-500	12
20-750	14
20-1000	15
20-1200	-
20-1400	-

Thermal Conductivity

	20℃	600℃	800℃	1000℃	1200℃	1400℃
Wm-1k-1	13	20	22	26	27	35

Resistance temperature correction factor

Temperature ℃	700	900	1100	1200	1300
Ct	1.02	1.03	1.04	1.04	1.04
