FeCrAl Cr25Al5 Kan-Thal A Resistance Heating Ribbon For Heating Furnace

Name: FeCrAl Cr25Al5 Kan-Thal A Resistance Heating Ribbon For Heating Furnace
Brand: Tankii
SKU: FeCrAl
Price: 5.5 USD
Availability: InStock
Rating: 4.5 (134 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: FeCrAl

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: 5.5-30.5USD/

Packaging Details: spool，coil

Delivery Time: 5-30 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Application:	Heater	Shape:	Ribbon
Material:	FeCrAl	Dimensions:	0.05-12mm
Surface:	Acid White/oxidized	Color:	Silvery White/bright Or Oxidized
Feature:	High Corrosion Resistance	Condition:	Soft Or Hard

Application:	Heater
Shape:	Ribbon
Material:	FeCrAl
Dimensions:	0.05-12mm
Surface:	Acid White/oxidized
Color:	Silvery White/bright Or Oxidized
Feature:	High Corrosion Resistance
Condition:	Soft Or Hard

Description

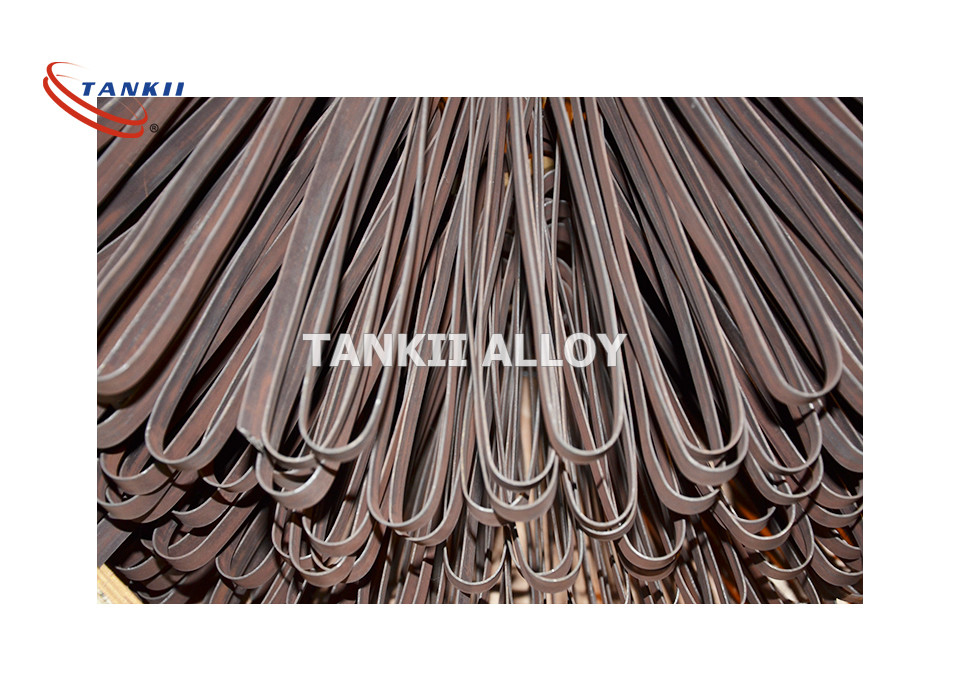

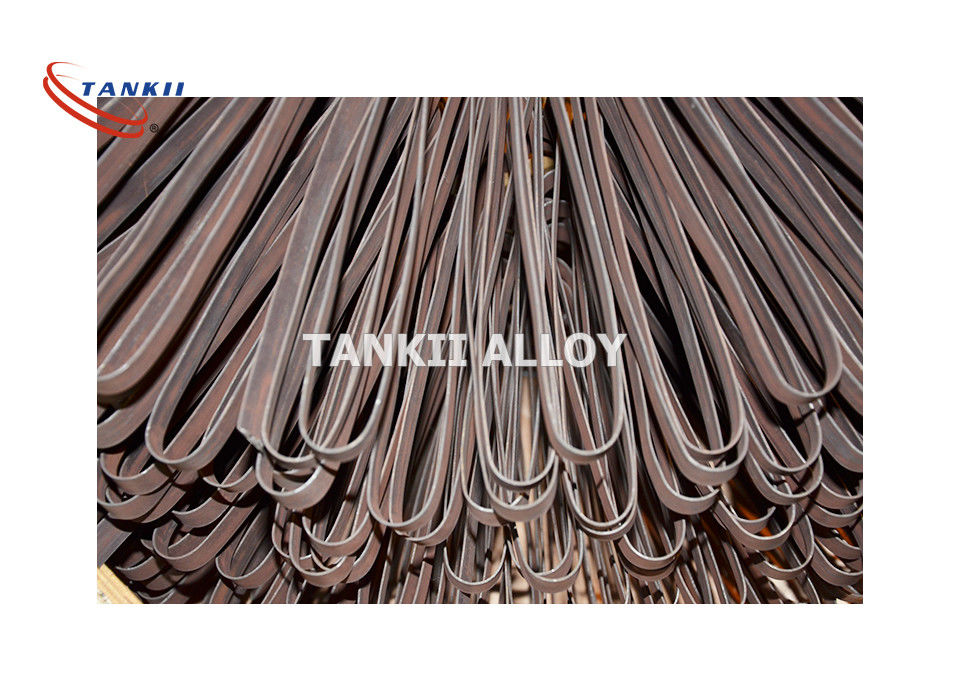

FeCrAl Cr25Al5 Kan-Thal A Resistance Heating Ribbon For Heating Furnace

FeCrAl Cr25Al5 Kan-Thal A Resistance Heating Ribbon For Heating Furnace

FeCrAl 0Cr25Al5 resistance heating alloy Chemical composition and characteristics

Elements
Chromium (Cr)	23 to 26 %
Aluminum (Al)	4.5 to 6.5 %
Iron (Fe)	Rem %
Properties
Maximum operation temperature	1250 oC
Electric resistivity	1.42 micro-ohm. Meter at 20 oC
Density	7.10 gram per cm3
Thermal conductivity	46.1 KJ/m.h.°C
Linear coefficient of thermal expansion	16 x 10-6 per oC
Melting Point	1500 oC
Tensile Strength	630 to 780 Mpa
Elongation	Above 12 %
Reduction in area	60 to 75 %
Hardness	200 to 260 HB

Iron-Chrome-Aluminum FeCrAl 0Cr25Al5 resistance heating alloy has high maximum service temperature in air up to 1250oC. Longer life permits large surface stress to be applied on the alloy. Lighter weight makes it a more economical resistance heating material than Nichrome. The electric resistivty remains almost constant with varying temperatures. Good yield strength and aging resistance. Outstanding form stability. Greater heat resistance than austenitic stainless steels therefore it is commonly used in the heating applications.

FeCrAl Cr25Al5 Kan-Thal A Resistance Heating Ribbon For Heating Furnace 0
