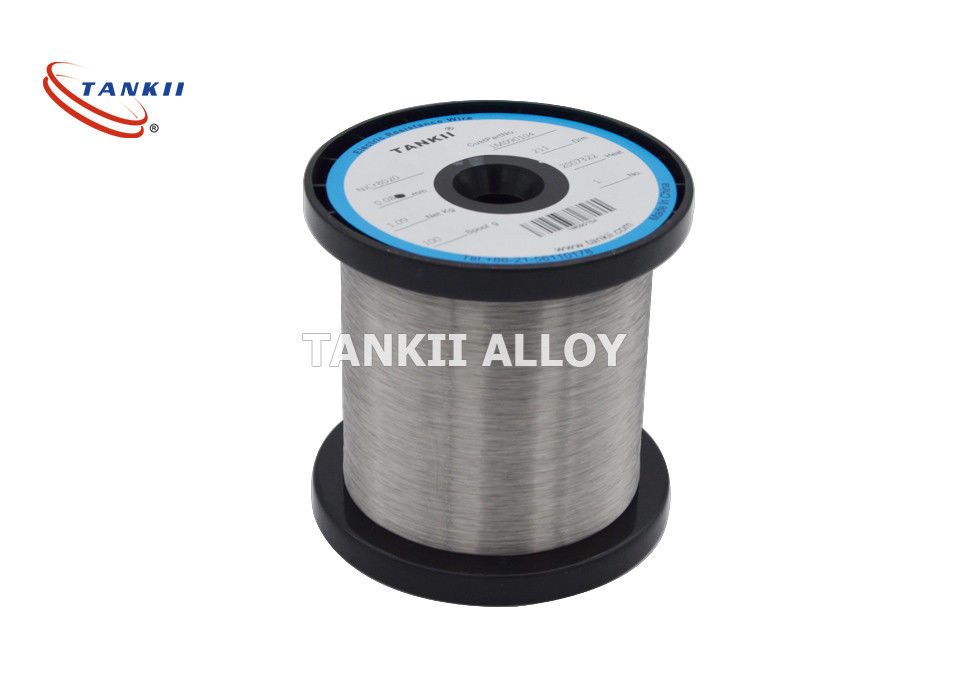

FeCrAl Alloy Wire 0Cr25Al5 High Temperature Resistance Coil

Name: FeCrAl Alloy Wire 0Cr25Al5 High Temperature Resistance Coil
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0cr25al5
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0cr25al5

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 5USD/kg

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 20, 000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      GB Resistive Heating Wire, DIN Standard Resistive Heating Wire


Model NO.:	FeCrAl	Specification:	0.018mm-10mm
Production Capacity:	8000kgs/Month	HS Code:	7505220090
Hardness:	Soft, Semihard, Hard, Customized	Codition:	Bright, Annealed, Soft

Model NO.:	FeCrAl
Specification:	0.018mm-10mm
Production Capacity:	8000kgs/Month
HS Code:	7505220090
Hardness:	Soft, Semihard, Hard, Customized
Codition:	Bright, Annealed, Soft

Description

FeCrAl Alloy Wire 0Cr25Al5 High Temperature Resistance Coil

Fecral Wire 255 0cr25al5 Coil Solid Conductor Fecral Alloy Electric Wire

Product Specifications

Attribute	Value
Model NO.	FeCrAl
Specification	0.018mm-10mm
Production Capacity	8000kgs/Month
HS Code	7505220090
Hardness	Soft, Semihard, Hard, Customized
Condition	Bright, Annealed, Soft

Introduction of FeCrAl Resistance Wire

Iron-chromium-aluminium (FeCrAl) metallic alloy is a high temperature material capable of withstanding temperatures up to 1400°C, making it ideal for industrial furnace applications.

Nichrome heating alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.

Available Grades & Forms

Grades: 0Cr25AL5, 0Cr23AL5, 0Cr27AL7Mo2, 0Cr21AL6Nb, 0Cr21AL4, 0Cr21Al6

Available Forms:

Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm

Key Features

Excellent oxidation resistance under heating conditions
High resistance and extended service life
Low temperature coefficient
Superior anti-carburizing performance and resistance to sulfur pollution

Advantages

Fe-Cr-Al resistance alloy offers exceptional high-temperature corrosion resistance at a more economical price point compared to Nickel Chrome wire.

These alloys are widely implemented in industrial furnaces, household appliances, and far-infrared devices, with surface temperatures reaching up to 1400°C (for grades like 0Cr21A16Nb and 0Cr27A17Mo2).

Alloy Composition & Properties

Alloy Nomenclature performance	1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0CrAl6Nb	0Cr27Al7Mo2
Main Composition Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
						Nb0.5	Mo1.8-2.2
Max. continuous service temp. (°C)	950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ@m)	1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)	7.4	7.1	7.16	7.25	7.35	7.1	7.1
