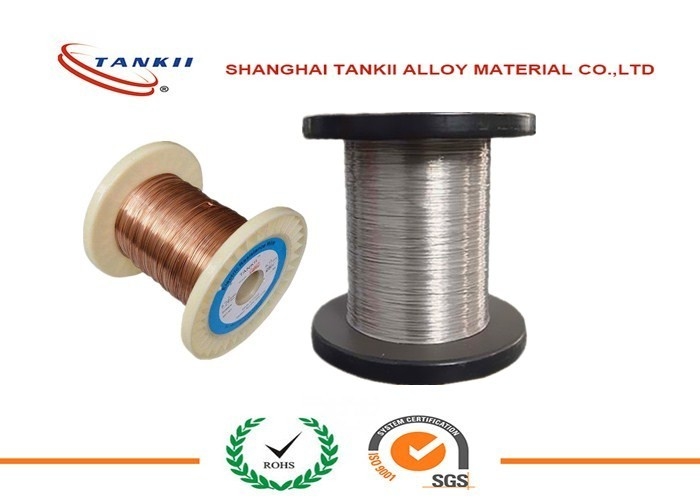

AWG32 Nicr3070 Ni70cr30 Nichrome Wire For Electric Heating Zone

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: NiCr 70/30

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

AWG32 Ni70cr30 Nichrome Wire

,

Bright Surface Nichrome Wire

,

Electric Heating FeCrAl Alloy Wire

Grade:
NI70Cr30
Material:
Nickel Chromium Alloy
Resistivity:
1.18
Surface:
Bright
Diameter:
0.02-5.00mm
HS Code:
75052200
Origin:
China
Sample:
Accepted
Grade:
NI70Cr30
Material:
Nickel Chromium Alloy
Resistivity:
1.18
Surface:
Bright
Diameter:
0.02-5.00mm
HS Code:
75052200
Origin:
China
Sample:
Accepted
Description
AWG32 Nicr3070 Ni70cr30 Nichrome Wire For Electric Heating Zone

The material NiCr7030 with the material is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.
It is a nickel-chromium heating conductor alloy for operating temperatures of up to 1250 °C and often contains additives of rare earths for a higher resistance to oxidation, especially with frequent switching operations or broad temperature variations.
The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, yet it is low to oxidizing as well as reducing gases containing sulphur.
The resistance to carbonizing is high. Application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters.

Normal composition%

Model NO. NiCr7030 Density 8.1 g/cm3
Material Shape Strip Melting Point 1400 C
Range of Application Resistor, Heater OEM YES
Certification ISO9001, RoHS Stock Seyn
Brand HUONA Tensile Strength 810 MPa
Usage Resistance materials Electrical Resistivity 1.18
Elongation >20% Trademark TANKII
Hardness 180 HV Transport Package Spool, Carton, Wooden Case
Max Working Temperature 1250 C Specification 0.8mm
HS Code 7506200000 Origin China





AWG32 Nicr3070 Ni70cr30 Nichrome Wire For Electric Heating Zone 0
