CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45 Electric Copper Nickel Alloy

Name: CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45 Electric Copper Nickel Alloy
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi23
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001: 2008

Model Number: CuNi23

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: Negotiation

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 15-28DAYS

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 300+TON+MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    CuNi14 Electric Copper Nickel Alloy, CuNi23 Electric Copper Nickel Alloy, CuNi19 Electric Copper Nickel Alloy


Material:	Constantan/ Manganin	Wire Chemical:	Cu Ni/ Cu Mn
Type:	Round Insulated Wire	Insulation Material:	Polyesterimide, Polyester
Application:	Electric Instrument, Electric Part Coil And So On	Class:	130,155,180,200,220

Material:	Constantan/ Manganin
Wire Chemical:	Cu Ni/ Cu Mn
Type:	Round Insulated Wire
Insulation Material:	Polyesterimide, Polyester
Application:	Electric Instrument, Electric Part Coil And So On
Class:	130,155,180,200,220

Description

CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45 Electric Copper Nickel Alloy

CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44/CuNi45/Electric Copper Nickel Alloy Price

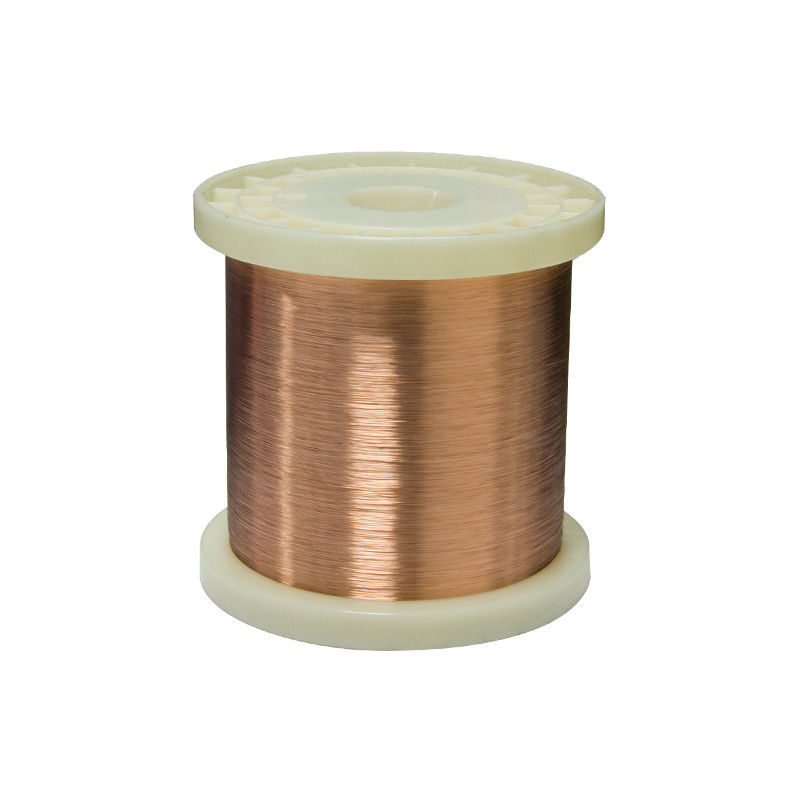

Our Copper Nickel Alloy Wire is a high-quality electrical material that offers low electric resistance, excellent heat resistance, and corrosion resistance. It is easy to process and lead welded, making it ideal for various applications in the electrical industry.

Commonly used in the production of key components for thermal overload relays, low resistance thermal circuit breakers, and electrical appliances, our Copper Nickel Alloy Wire is a reliable choice. It is also widely used in electrical heating cables, making it an essential material for heating systems.

Key Features:

Low electric resistance
Good heat resistance
Corrosion resistance
Easy to process and lead welded

Applications:

Low-voltage circuit breakers
Thermal overload relays
Electrical heating cables
Electrical heating mats
Snow melting cables and mats
Ceiling radiant heating mats
Floor heating mats & cables
Freeze protection cables
Electrical heat tracers
PTFE heating cables
Hose heaters
Other low-voltage electrical products

PropertiesGrade		CuNi1	CuNi2	CuNi6	CuNi8	CuMn3	CuNi10
Main Chemical Composition	Ni	1	2	6	8	_	10
	Mn	_	_	_	_	3	_
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		200	200	200	250	200	250
Resisivity at 20oC (Ωmm2/m)		0.03	0.05	0.10	0.12	0.12	0.15
Density(g/cm3)		8.9	8.9	8.9	8.9	8.8	8.9
Thermal Conductivity(α×10-6/oC)		<100	<120	<60	<57	<38	<50
Tensile Strength(Mpa)		≥210	≥220	≥250	≥270	≥290	≥290
EMF vs Cu(μV/oC)(0~100oC)		-8	-12	-12	-22	_	-25
Approximate Melting Point( oC)		1085	1090	1095	1097	1050	1100
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non

PropertiesGrade		CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNi44
Main Chemical Composition	Ni	14	19	23	30	34	44
	Mn	0.3	0.5	0.5	1.0	1.0	1.0
	Cu	Bal	Bal	Bal	Bal	Bal	Bal
Max Continuous Service Temperature(oC)		300	300	300	350	350	400
Resisivity at 20oC (Ωmm2/m)		0.20	0.25	0.30	0.35	0.40	0.49
Density(g/cm3)		8.9	8.9	8.9	8.9	8.9	8.9
Thermal Conductivity(α×10-6/oC)		<30	<25	<16	<10	<0	<-6
Tensile Strength(Mpa)		≥310	≥340	≥350	≥400	≥400	≥420
EMF vs Cu(μV/oC)(0~100oC)		-28	-32	-34	-37	-39	-43
Approximate Melting Point( oC)		1115	1135	1150	1170	1180	1280
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		non	non	non	non	non	non

Please send us your request and we will reply to you as soon as possible.
