High Saturation Magnetization Kovar Alloy Aluminum Steel Alloy 1J22 For Relays

Product Details

Place of Origin: China

Brand Name: Soft Magnetic Alloy

Certification: ISO 9001 and RoHS

Model Number: 1J22/ HiperCo50/ 50КФ/ Supermendur

Payment & Shipping Terms

Minimum Order Quantity: 5-25KG

Price: USD 500~ 1000$/ KG

Packaging Details: Waterproof paper, Coil or spool and Wooden Case

Delivery Time: 35~40 days

Payment Terms: T/T, Western Union

Supply Ability: 100KG per month

Get Best Price
Contact Now
Specifications
Highlight:

precision tubing

,

kovar alloy

Shape:
Wire
Condition:
Soft
Standard:
GB/T 15002-1994
Surface:
Silver
Feature:
High Saturation Magnetization, High Magnetostrictive Coefficient
Application:
Magnetostrictive Transducer Core
Shape:
Wire
Condition:
Soft
Standard:
GB/T 15002-1994
Surface:
Silver
Feature:
High Saturation Magnetization, High Magnetostrictive Coefficient
Application:
Magnetostrictive Transducer Core
Description
High Saturation Magnetization Kovar Alloy Aluminum Steel Alloy 1J22 For Relays

Precision Alloy High Saturation Magnetization of Soft Magnetic Alloy 1J22



Name: 1J22 /HiperCo50/ 50КФ/ Supermendur



Application: Suitable as light weight, small size aviation electrical components, such as micro-motor rotor magnet pole, relays, transducers, etc.



Feature: In existing soft magnetic material saturation magnetization of the alloy is highest (2.4T). Curie is also the highest point (980 ℃), the maximum saturation magnetostriction coefficient. Due to the high saturation magnetic flux density, in the production of the same power of the motor, which can greatly reduce the volume; in making electromagnets in childhood Yang produce large cross-sectional area of the suction force. Due to the high Curie point, the alloy can be able to work at higher temperatures other soft magnetic material has been completely demagnetized, and to maintain good magnetic stability line. Due to a large magnetostriction coefficient, very suitable for magnetostrictive transducer output, high energy, high work efficiency.



Physical properties

  • Density (g/cm3): 8.2
  • Curie point (℃): 980
  • Electrical resistivity (μΩ*cm): 0.4 (20℃)
  • Saturation magnetostriction coefficient (λθ/10-6): 60~100





Description:



Chemical composition(%)



Grade

C

Si

Mn

P

S

Ni

Co

V

Fe

1J22

≤0.04

0.15~0.3

0.2

≤0.02

≤0.02

0.5

49~51

0.8~1.8

Bal.

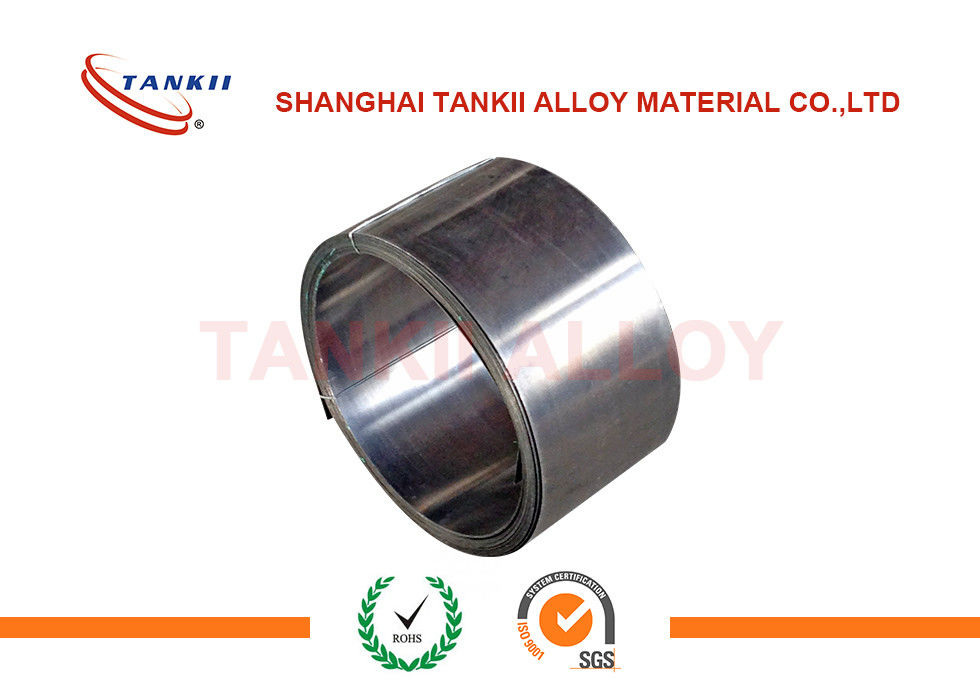

High Saturation Magnetization Kovar Alloy Aluminum Steel Alloy 1J22 For Relays 0
