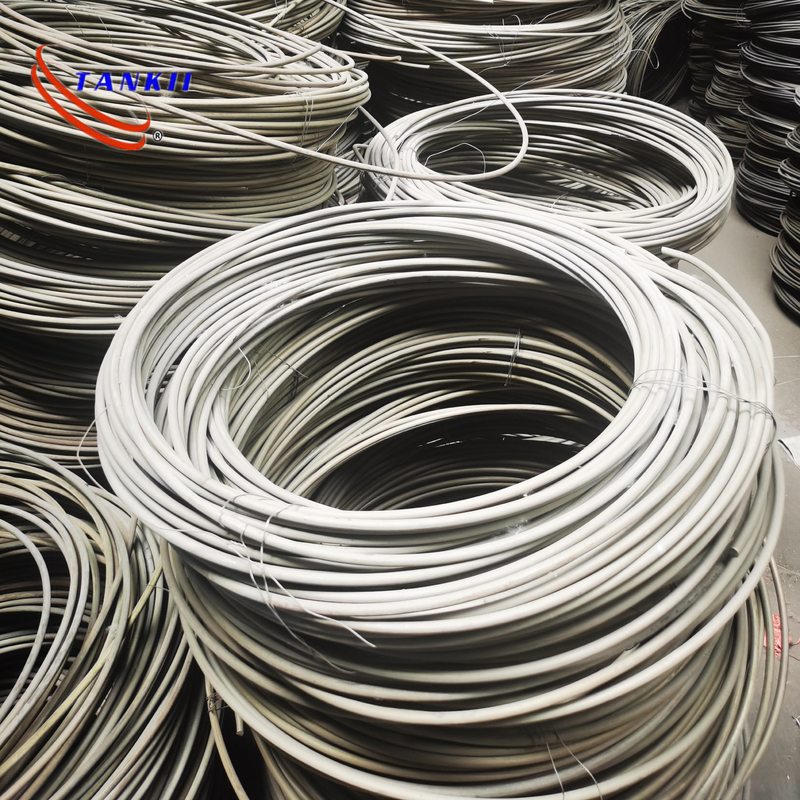

Resistohm 145 / 0cr21al6nb / HN A1 A-1 Resistance Heating Wire on Resistance Furnace

Name: Resistohm 145 / 0cr21al6nb / HN A1 A-1 Resistance Heating Wire on Resistance Furnace
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Resisohm 145A1
Price: 26.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: Resisohm 145A1

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    0cr21al6nb Resistance Heating Wire, Resistohm 145 Resistance Heating Wire


Model NO.:	Resistohm 145A1	Surface:	Bright, Acid White, Oxidation
Material:	Fe-Cr-Al Wire	Density:	7.1 G/cm3
Resistivity:	1.45	Origin:	Shanghai China
Trademark:	TANKII ALLOY	HS Code:	72230000

Model NO.:	Resistohm 145A1
Surface:	Bright, Acid White, Oxidation
Material:	Fe-Cr-Al Wire
Density:	7.1 G/cm3
Resistivity:	1.45
Origin:	Shanghai China
Trademark:	TANKII ALLOY
HS Code:	72230000

Description

Resistohm 145 / 0cr21al6nb / HN A1 A-1 Resistance Heating Wire on Resistance Furnace

Resisohm 145A1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation resistance and longer service life; excellent winding properties at room temperature processing, ease of processing molding; little rebound resilience and so on. Processing performance is very good; operating temperature can reach 1400 ºC.
Main specifications and uses:

Conventional Product specifications: 0.5 ~ 10 mm

Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

MAIN CHEMICAL ELEMENTS AND PROPERTIES

Properties Grade

25.0

6.0

Suitable

Balance

Max Continuous Service Temperature(ºC)

Diameter 1.0-3.0

Diameter large than 3.0,

1225-1350ºC

1400ºC

Resisivity 20ºC (ohm*mm2/m)

1.45

Density(g/cm3)

7.1

Approximate Melting Point( ºC)

1500

Elongation (%)

16-33

Repeatedly Bend Frequency(F/R) 20ºC

7-12

Continuous Service Time under 1350 ºC

More than 60 hours

Micrographic Structure

Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace

Dry Air

Humid Air

hydrogen-argon

Argon

Decomposition

atmosphere

gas

ammonia gas

Temp(ºC)

1400

1200

1400

950

1200

Alloy Nomenclature Performance		1Cr13AL4	0Cr25Al5	0Cr21AL6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
	Cr	12.0-15.0	23.0-26.0	19.0-22.0	20.5-23.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.3	3.0-4.2	5.0-7.0	6.0-7.0
Main Chemical composition	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Rest	Rest	Rest	Rest	Rest	Rest	Rest
							Nb0.5	Mo1.8-2.2
Max. continuous service temp. of element(ºC)		950	1250	1250	1250	1100	1350	1400
Resistivity at 20ºC(μΩ/m)		1.25	1.42	1.42	1.35	1.23	1.45	1.53
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal conductivity(KJ/m.h.ºC)		52.7	46.1	63.2	60.2	46.9	46.1	--
Coefficient of lines expansion(α*10-6/ºC)		15.4	16	14.7	15	13.5	16	16
Melting point approx.( ºC)		1450	1500	1500	1500	1500	1510	1520
Tensile strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation at rupture(%)		>16	>12	>12	>12	>12	>12	>10
Variation of area(%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeat Bending frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness(H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
continuous service time(Hours/ ºC)		--	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic properties		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic
