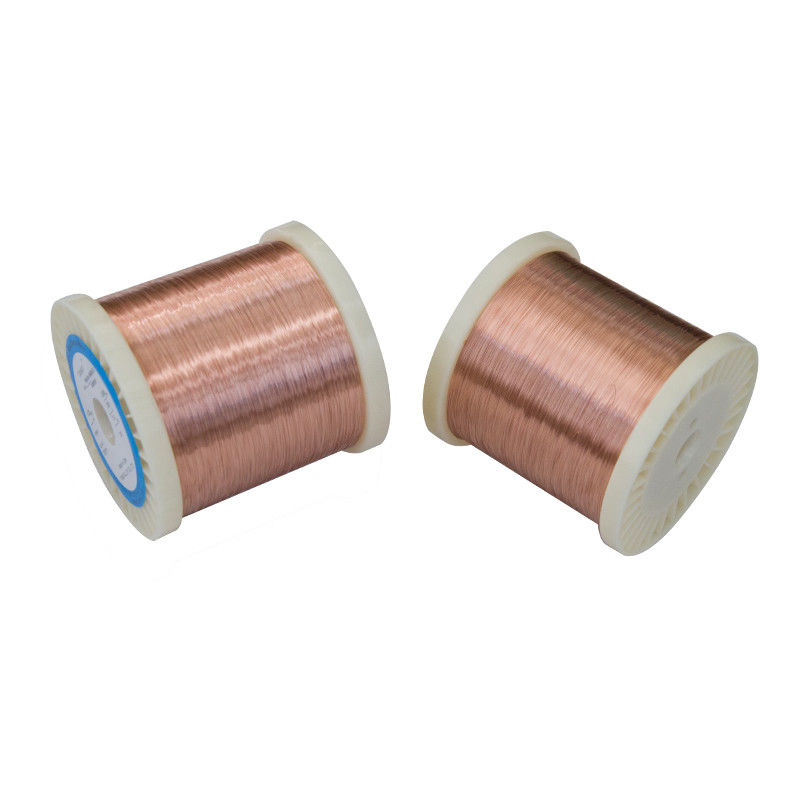

Cu Ni Resistance Wire CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44

Name: Cu Ni Resistance Wire CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi 10
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO 9001

Model Number: CuNi 10

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CuNi14 Resistance Wire, CuNi19 Resistance Wire, CuNi10 Resistance Wire


Model NO.:	CUNI 10	Diameter:	0.05 -10.0 MM
Surface:	Bright-annealed	Resistivity:	0.15 Ohm Mm2/m +/-3%
Standard:	GB/T, JIS, ASTM,DIN	Density:	8.90g/cm3
HS Code:	4708220000	Production Capacity:	3000 Tons/Year

Model NO.:	CUNI 10
Diameter:	0.05 -10.0 MM
Surface:	Bright-annealed
Resistivity:	0.15 Ohm Mm2/m +/-3%
Standard:	GB/T, JIS, ASTM,DIN
Density:	8.90g/cm3
HS Code:	4708220000
Production Capacity:	3000 Tons/Year

Description

Cu Ni Resistance Wire CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi34/CuNi40/CuNi44

Due to has high tensile strength and increased resistivity values, TANKII copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.

Copper Nickel Resistance Alloy-CuNi10
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
10	0.3	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.15±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	50 (Max)
Melting Point	1100ºC
Tensile Strength,N/mm2 Annealed,Soft	210~370 Mpa
Tensile Strength,N/mm2 Cold Rolled	420~740 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	2% (Min)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite

Copper nickel alloy wire is a type of wire made from a combination of copper and nickel.
This type of wire is known for its high resistance to corrosion and its ability to withstand high temperatures.
It is commonly used in applications where these properties are important, such as in marine environments, electrical wiring, and heating systems. The specific properties of copper nickel alloy wire can vary depending on the exact composition of the alloy, but it is generally considered to be a durable and reliable material for a wide range of applications

Product Advantage:
1. The Copper Nickel wire is easy to be welded and easy to be fabricated, so it can be made into many forms and widely used in all areas.
2. Copper Nickel (CuNi) alloys are medium to low resistance materials typically used in applications with maximum operating temperatures up to 400°C (750°F).
3. Copper nickel alloys have a low coefficient of thermal expansion, allowing them to withstand thermal cycles without significant dimensional changes.
4. Copper nickel alloys exhibit good resistance to corrosion, especially in marine environments. This makes them ideal for applications in saltwater environments.
5. With high electrical conductivity, good mechanical strength, allowing for demanding applications.
6. The mechanical properties can be privately customized, to ensure stable and reliable application in the different conditions.
