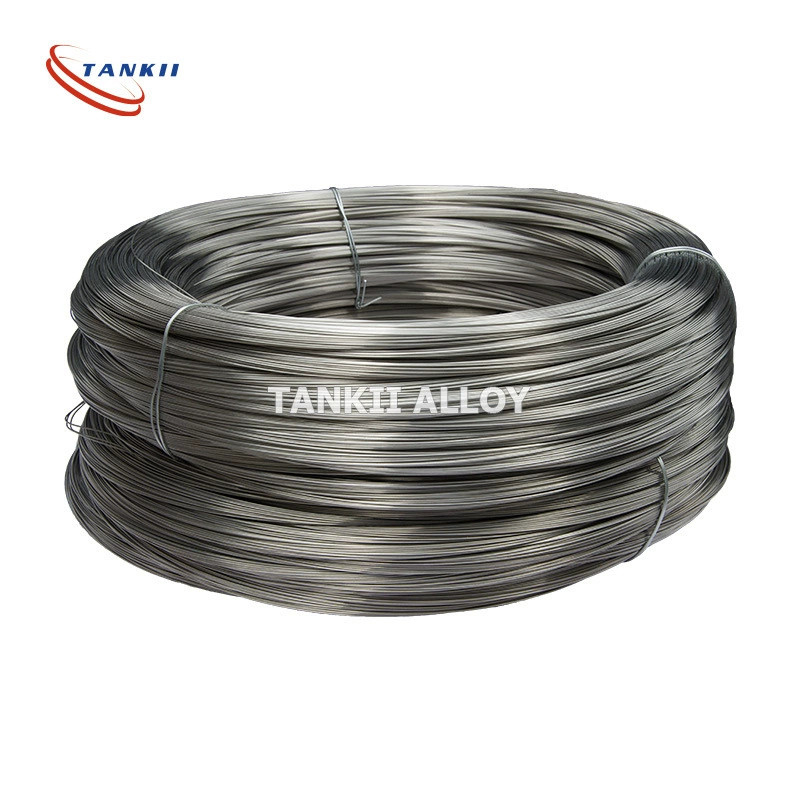

Ni80Cr20 Heat Resistant Alloy Resistance Heating Wire For Electric Hand Warmer

Name: Ni80Cr20 Heat Resistant Alloy Resistance Heating Wire For Electric Hand Warmer
Brand: Tankii
SKU: Ni80Cr20
Rating: 4.9 (178 reviews)

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Packaging Details: wooden case，box

Delivery Time: 5-30 days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Heat Resistant Alloy Resistance Heating Wire, Electric Hand Warmer Resistance Heating Wire, Ni80Cr20 Resistance Heating Wire


Surface:	Bright	Material:	Nickel
Shape:	Round Wire	Usage:	Heating Element/resistance Wire
Delivery:	Depends On The Quantity	Thickness:	0.02-5mm
Density:	8.4 G/cm3	Max Working Temperature:	300
Usual Size:	0.523mm X 18 & 0.574mm	Yield Strength:	455 MPa
Hardness:	225 Hv	Supplier:	Tankii
Diameter:	0.01mm-10mm	Tensile Strength:	≥ 700 Mpa
Rated Temperature:	-60-200℃	Resisivity:	1.45 Ohm·mm²/m
Service:	Online Support	Number Of Wires:	7,19,37,61
State:	Annealed And Hard	Condition:	Soft, Annealed, Smooth
Grade:	NiCr Alloy

Surface:	Bright
Material:	Nickel
Shape:	Round Wire
Usage:	Heating Element/resistance Wire
Delivery:	Depends On The Quantity
Thickness:	0.02-5mm
Density:	8.4 G/cm3
Max Working Temperature:	300
Usual Size:	0.523mm X 18 & 0.574mm
Yield Strength:	455 MPa
Hardness:	225 Hv
Supplier:	Tankii
Diameter:	0.01mm-10mm
Tensile Strength:	≥ 700 Mpa
Rated Temperature:	-60-200℃
Resisivity:	1.45 Ohm·mm²/m
Service:	Online Support
Number Of Wires:	7,19,37,61
State:	Annealed And Hard
Condition:	Soft, Annealed, Smooth
Grade:	NiCr Alloy

Description

Ni80Cr20 Heat Resistant Alloy Resistance Heating Wire For Electric Hand Warmer

Ni80Cr20 Heat Resistant Alloy Resistance Heating Wire Used as Electric Hand Warmer

Product Description
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.

Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Mechanical Properties of nichrome wire

Max Continuous Service Temperature:	1200ºC
Resisivity 20ºC:	1.09ohm mm2/m
Density:	8.4 g/cm3
Thermal Conductivity:	60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion:	18 α×10-6/ºC
Melting Point:	1400ºC
Elongation:	Min 20%
Micrographic Structure:	Austenite
Magnetic Property:	nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1	1.006	1.012	1.018	1.025	1.026	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	1.025	-

Regular size of Nickel alloy wire :

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm

Ni80Cr20 Heat Resistant Alloy Resistance Heating Wire For Electric Hand Warmer 0
