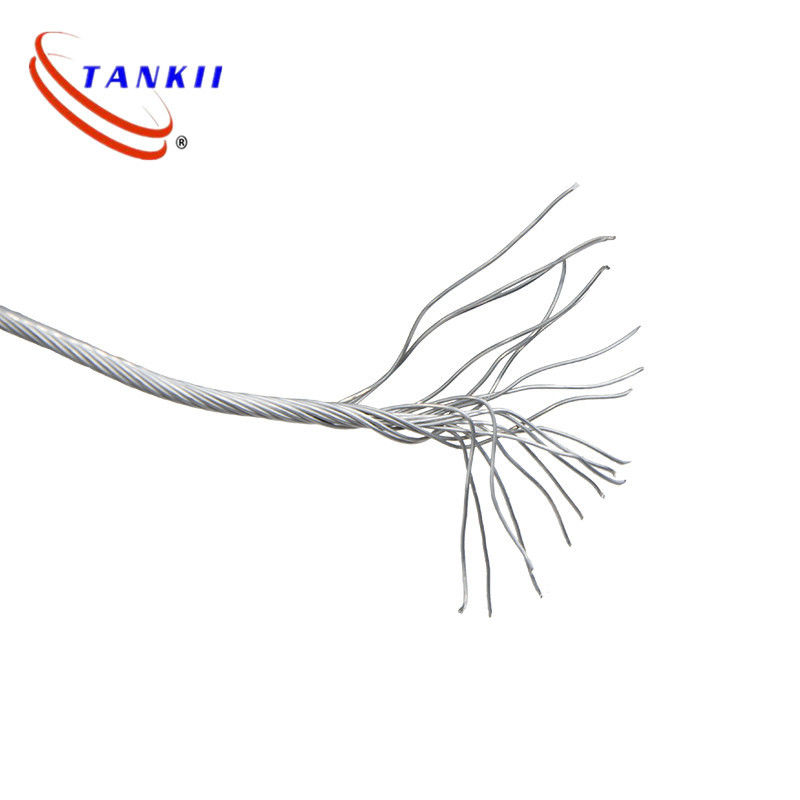

N4 N6 Nickel 200 Nickel 201 Nickel 212 Uns N02200 Pure Nickel Stranded Wire

Name: N4 N6 Nickel 200 Nickel 201 Nickel 212 Uns N02200 Pure Nickel Stranded Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Pure Ni stranded wire
Price: 499.05 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO 9001

Model Number: Pure Ni stranded wire

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            Pure Nickel Stranded Wire, N02200 Nickel Stranded Wire, N4 N6 Nickel Stranded Wire


Model NO.:	NI200 201 212	Surface:	Bright Nickel Stranded Wire
Density:	8.9 G/cm3	Purity:	99.6- 99.9%
Melting Point:	1440 C	Name:	Pure Ni Stranded Wire
HS Code:	75061000

Model NO.:	NI200 201 212
Surface:	Bright Nickel Stranded Wire
Density:	8.9 G/cm3
Purity:	99.6- 99.9%
Melting Point:	1440 C
Name:	Pure Ni Stranded Wire
HS Code:	75061000

Description

N4 N6 Nickel 200 Nickel 201 Nickel 212 Uns N02200 Pure Nickel Stranded Wire

N4 N6 Nickel 200 Nickel 201 Nickel 212 Uns N02200 Pure Nickel Stranded Wire

Grade:Ni200,Ni201,N4,N6
High ductility
Excellent corrosion resistance
good mechanical strength

Alloy Description

Nickel 200/201 is most widely used grade, generally specified for transistor caps, anodes for electronic tubes, leads of electronic components / Lead-in-Wires for lamps and for Wire-Mesh. Also used in strip form for various applications including Ni-Cd batteries.

Condition of Supply

Nickel 200, 201 and 205 are supplied in the following conditions:
Cold Drawn, Special Temper.
Cold Drawn, Annealed. Straightened and Cut Lengths.
Note:

NUS N02201 (ASTM B 162) same as N4 (GB/T 2054).

NUS N02200 (ASTM B 162) same as N6 (GB/T 2054).

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Chemical Composition

Nickel Grade	Ni+Co	Cu	Si	Mn	C	Cr	S	Fe	Mg
Nickel Grade	≥	≤
Ni201	Bal.	.25	.3	.35	.02	.2	.01	.3	-
Ni200	Bal.	.25	.3	.35	.15	.2	.01	.3	-

Alloy	Standard Strand Construction, mm	Resistance,Ω/m	Strand Diameter Nominal, mm	Meter per Kilo
NiCr 80/20	18×0.544+1x0.574	0.252-0.278	2.67	26
NiCr 80/20	19×0.61	0.205-0.250	3.05
NiCr 80/20	18×0.523+1x0.574	0.271-0.299	2.67	30
NiCr 80/20	19×0.574	0.227-0.251	2.87	25
NiCr 80/20	36×0.385+1x0.45	0.265-0.293	2.76	26
NiCr 60/15	19×0.508	0.286-0.318	2.54
NiCr 60/15	18×0.523+1x0.574	0.276-0.305	2.76	30
Ni200/Ni201	19×0.574	0.019-0.021	2.87	21

Propertes/Grade		Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Main Chemical composition	Ni	Rest	Rest	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤ 1.0	≤ 1.0	Rest	Rest	Rest
Max. continuous service temp. of element		1200	1250	1150	1100	1100
Resistivity at 20oC (μ Ω · m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal conductivity(KJ/m· h· oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of lines expansion(α × 10-6/oC)		18	17	17	19	19
Melting point (approx. )( oC)		1400	1380	1390	1390	1390
Elongation at rupture (%)		> 20	> 20	> 20	> 20	> 20
Micrographic structure		austenite	austenite	austenite	austenite	austenite
Magnetic properties		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

N4 N6 Nickel 200 Nickel 201 Nickel 212 Uns N02200 Pure Nickel Stranded Wire 0
