Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers

Product Details

Place of Origin: China Mainland

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCr60/15

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: Negotiable

Packaging Details: Carton case

Delivery Time: 7~20 days after getting the payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 tons/year

Get Best Price
Contact Now
Specifications
Highlight:

8mm Nickel-Chromium Alloy Electroloy

,

2.5mm Nickel-Chromium Alloy Electroloy

,

5.5mm Nickel-Chromium Alloy Electroloy

Item:
Best Seller Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Drying Equipment
Packing:
On Spool, In Carton Case, Wooden Case
MOQ:
10kg
Application:
Precision Resistor, Heating
Package:
Bobbin, Spools, Carton Box
Leading Time:
10--20 Dyas After Getting The Payment
Certificate:
Mill's Test Certificate
Supplier:
Tankii
Item:
Best Seller Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Drying Equipment
Packing:
On Spool, In Carton Case, Wooden Case
MOQ:
10kg
Application:
Precision Resistor, Heating
Package:
Bobbin, Spools, Carton Box
Leading Time:
10--20 Dyas After Getting The Payment
Certificate:
Mill's Test Certificate
Supplier:
Tankii
Description
Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers

Best Seller Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For heat exchangers



Tankii alloy Material Co.,Ltd mainly produces resistance wire including nicr alloy, fecral alloy, cuni alloy and thermocouple alloy wire.


NiCr6015 alloy wire is a kind of nickel-chromium alloy wire with the following characteristics.

Chemical Composition

  • It mainly consists of nickel (Ni), chromium (Cr), and iron (Fe), along with small amounts of other elements such as carbon (C), silicon (Si), manganese (Mn), cobalt (Co), sulfur (S), and phosphorus (P). Typically, the nickel content is approximately 55%-61%, and the chromium content is about 15%-18%



Physical Properties


  • Resistivity: At 20℃, it has a resistivity of around 1.12 μΩ·m, enabling it to generate sufficient heat when current passes through, making it suitable for manufacturing various resistance elements.
  • Density: With a density of about 8.2 g/cm³, it provides a certain weight and mass characteristics to the wire.
  • Thermal Conductivity: Having a thermal conductivity of 45.2 kJ/m·h·℃, it allows for efficient heat transfer and dissipation, facilitating rapid heat exchange during heating and cooling processes.
  • Coefficient of Thermal Expansion: The coefficient of thermal expansion is 17.0×10⁻⁶/℃, meaning its size changes relatively slightly with temperature variations. This is crucial for applications requiring stable performance at different temperatures, like heating elements in high-temperature furnaces.
  • Melting Point: It has a relatively high melting point of about 1390℃, allowing it to remain solid in high-temperature environments and ensuring reliability in high-temperature applications.
There are many applications of NiCr6015 wire:

Applications:

  • Electrical and Electronic Field: Widely used in the manufacturing of electronic components such as resistors, potentiometers, and heating wires. For instance, it is used as the resistance wire in equipment like dynamic braking starting resistors, neutral grounding resistors, and resistor boxes.
  • Industrial Heating: Serves as heating elements in industrial furnaces and heating equipment. In industries such as metal processing, glass manufacturing, and ceramic firing, it provides high-temperature heat sources.
  • Mechanical Manufacturing: Used to produce mechanical parts that require high-temperature resistance, corrosion resistance, and high strength, such as bolts, nuts, shafts, and gears.
  • Aerospace: Applied in high-temperature components of aerospace engines, such as combustion chambers and turbines, as well as in spacecraft's structural parts and thermal protection systems, due to its ability to withstand extreme high temperatures and complex mechanical environments
  • Petrochemical Industry: Utilized in the manufacturing of components like heat exchangers, reactors, and pipelines in petrochemical equipment, capable of resisting the erosion of high-temperature, high-pressure, and corrosive media.





Parameters of resistance wires:

Nichrome alloy wire:

Performance/
material

Cr10Ni90

Cr20Ni80

Cr30Ni70

Cr15Ni60

Cr20Ni35

Cr20Ni30
Composition
Ni
90
Rest
Rest
55.0-61.0
34.0-37.0
30.3-34.0
Cr
10
20.0-23.0
28.0-31.0
15.0-18.0
18.0-21.0
18.0-21.0
Fe
--
≤1.0
≤1.0
Rest
Rest
Rest
Max. continuous service temp. of element(ºC) 1200 1200 1250 1150 1100 1100
Melting Point
1400
1400
1380
1390
1390

        1390

Resistivity
--
1.09+-0.05
1.18+-0.05
1.12+-0.05
1.00+-0.05
1.04+-0.05
Density (g/cm3)
8.7
8.4
8.1
8.2
7.9
7.9
Elongation at rupture
≥20
≥20
≥20
≥20
≥20
≥20
T.S.(MPa) ≥490 ≥600 ≥600 ≥600 ≥600 ≥600

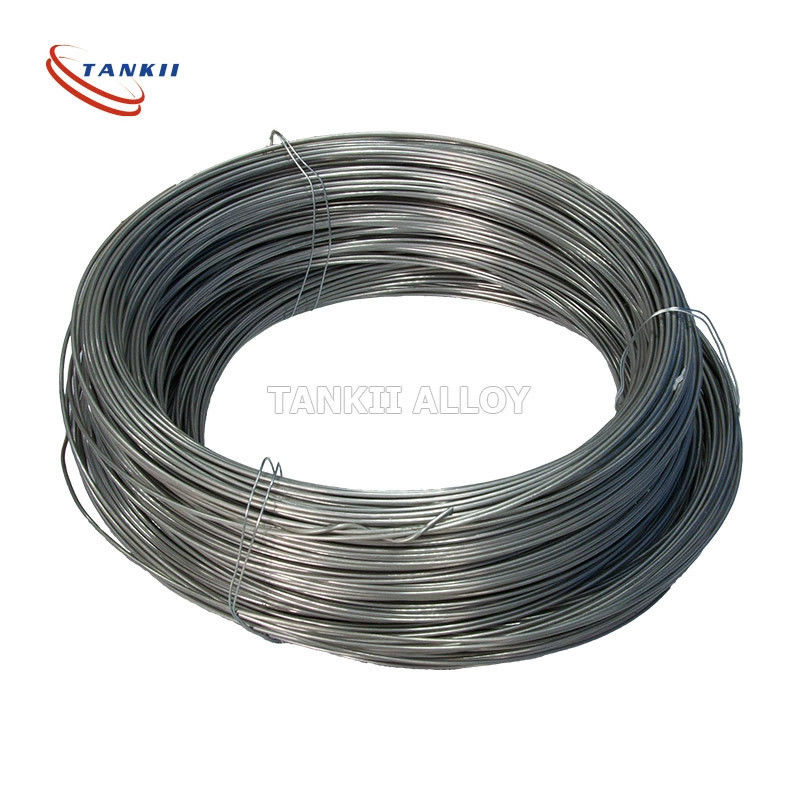

Thick wire/ rod: in coil





Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 0

Resistance flat wire pictures:



Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 1

Thinner wire 0.04~0.09mm

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 2

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 3











Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 4

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 5

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 6





Package of resistance wire :

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 7









Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 8





Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 9



Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 10

Nickel-Chromium Alloy Electroloy / Alloy C/ Resistohm60 /NiCr6015 Rod 3.0mm 2.5mm 5.5mm 8mm Used For Heat Exchangers 11








Please call me at +86-18017475212 or email to me for more information on NiChrome products.
