C14415 TSn0.12 CuSn0.15 C14420 CW117C Copper Tin Alloy Strip Foil For Heat Exchanger Fin

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: C14415

Payment & Shipping Terms

Minimum Order Quantity: 3000 KG

Price: negotiable

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

C14415 Copper Tin Alloy Strip Foil

,

C14420 Copper Tin Alloy Strip Foil

Model NO.:
C14415
Shape:
Coil
Standard:
ASTM/GB/JIS/En/DIN
Density:
8.80 G/cm3
Surface:
Bright Surface
Transport Package:
Wooden Case
Specification:
0.02-2.5mm Thickness
Trademark:
TANKII
Model NO.:
C14415
Shape:
Coil
Standard:
ASTM/GB/JIS/En/DIN
Density:
8.80 G/cm3
Surface:
Bright Surface
Transport Package:
Wooden Case
Specification:
0.02-2.5mm Thickness
Trademark:
TANKII
Description

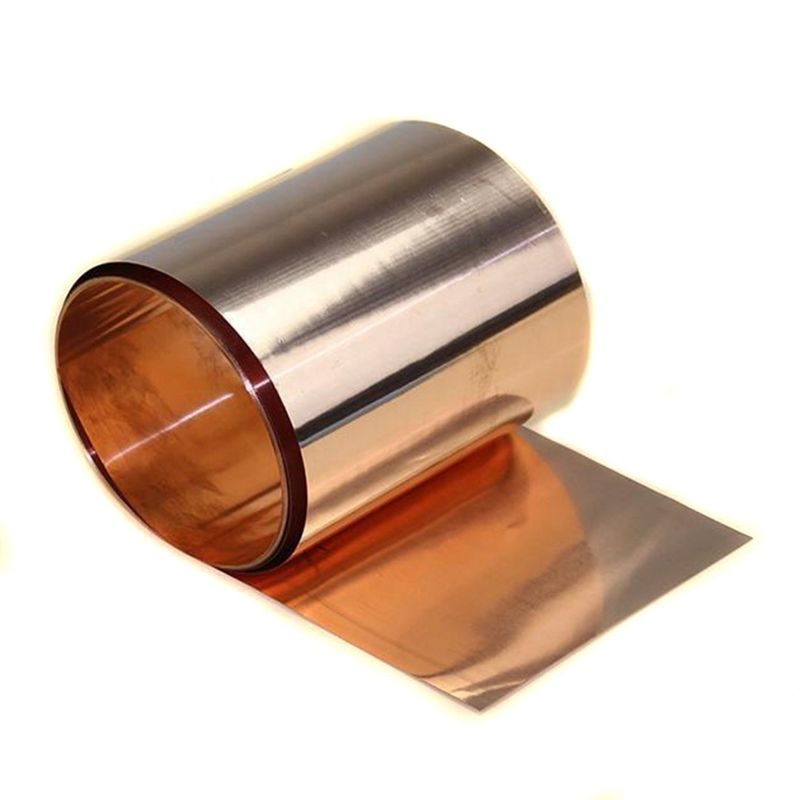

C14415 TSn0.12 CuSn0.15 C14420 CW117C Copper Tin Alloy Strip Foil For Heat Exchanger Fin

C14415



CuSn0.15 is a copper-tin alloy that contains approximately 0.15% tin. Here’s a concise overview of its properties, composition, and applications:



Properties

  • Good Corrosion Resistance: Offers resistance to corrosion, particularly in marine environments.
  • High Strength: The addition of tin enhances the mechanical strength of the alloy compared to pure copper.
  • Excellent Wear Resistance: Suitable for applications involving friction and wear.
  • Good Castability: Can be easily cast, making it suitable for various manufacturing processes.

Applications

  • Bearing Materials: Commonly used in bearings and bushings due to its wear resistance and durability.
  • Marine Applications: Ideal for components exposed to seawater and other corrosive environments.
  • Electrical Applications: Used in electrical parts where moderate conductivity and improved mechanical properties are required.

Summary

CuSn0.15 is a copper-tin alloy known for its good corrosion resistance, strength, and wear resistance, making it suitable for a variety of industrial and marine applications.

CHEMICAL COMPOSITION

  Sn% Cu%
Nominal Composition   Bal.
Min 0.10
Max 0.15



PHYSICAL PROPERTIES

Density g/cm3 8.93
Conductivity at 20°C %IACS 83
Elastic Modulus GPa 120
Poisson's ratio 0.33
Thermal expansion coefficient 10-6/ K 17.3



MECHANICAL PROPERTIES

State Yield strength Tensile strength Elongation Hardness
  Mpa MPa A50% HV
R300 ≥250 300-370 ≥4 85-110
R360 ≥300 360-430 ≥3 110-130
R420 ≥350 420-490 2 120-150
R460 ≥410 ≥460 - ≥130



Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State 90° R/T 180° R/T
  GW BW GW BW
R300 0 0 0.5 0.5
R360 0 0 1 1
R420 1 1 2 2.5
R460 1.5 2 2.5 4



Alloy

System

designation



UNS



EN



JIS

GB

(China)

Cu TK11000 C11000 Cu-ETP C1100 T2





CuCr/Zr

TK15100 C15100 CuZr0.1 C1510 TZr0.1
TK18160 C18160 CuCr0.5Zr
TK18150 C18150 CuCr1Zr TCr1-0.15
CuCrSiTi TK18070 C18070 CuCrSiTi



TCr0.3-0.2-

0.05

CuNiSnCrTi TK18090
CuNiP TK19000 C19000 CuNi1P
CuTi TK19920 C19920



CuFe

TK19210 C19210 CuFe0.1P C1921 TFe0.1
TK19400 C19400 CuFe2P C1940 TFe2.5









CuNiSi

TK19005 C19005
TK19010 C19010 CuNiSi
TK70260 C70260 CuNi2Si C7026 BSi2-0.45
TK70250 C70250 CuNi3SiMg C7025 BSi3.2-0.7
TK70250HS C70250 CuNi4SiMg C7025
CuNiCoSi TK70318 C70318 CuNi3CoSi

Special

Brass

TK42300 C42300 CuZn10Sn1NiSi
TK42500 C42500 CuSn3Zn9 HSn88-2





CuSn /

Bronze



TK14415 C14415 CuSn0.15 TSn0.12
TK51000 C51000 CuSn5 C5102 QSn5-0.2
TK51100* C51100 CuSn4 C5111 QSn4-0.3
TK51900* C51900 CuSn6 C5191 QSn6-0.2
TK52100* C52100 CuSn8 C5210 QSn8-0.3



C14415 TSn0.12 CuSn0.15 C14420 CW117C Copper Tin Alloy Strip Foil For Heat Exchanger Fin 0
