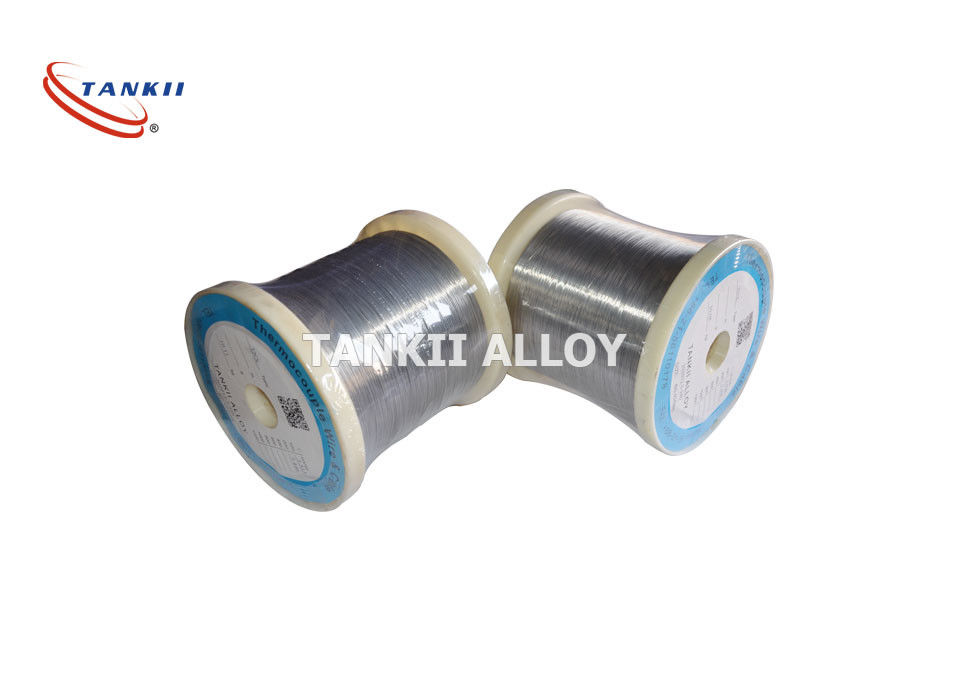

High Purity Clean NiCr7030Wire AWG 24 26 28 30 Gauge Nichrome 70 For Electric Furnaces

Name: High Purity Clean NiCr7030Wire AWG 24 26 28 30 Gauge Nichrome 70 For Electric Furnaces
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nichrome 70
Price: 111.80 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: SGS

Model Number: Nichrome 70

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: negotiable

Packaging Details: Wooden case

Delivery Time: 7-12 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    High Purity Clean NiCr7030Wire, Electric Furnaces NiCr7030Wire


Material:	Ni Cr Alloy	Surface:	Bright , Oxidation And Green
Shape:	Wire, Ribbon, Spring, Etc	Diameter:	0.018-10.0mm
Standard:	GB, ASTM Etc	Packing:	Spool Carton Wooden Case

Material:	Ni Cr Alloy
Surface:	Bright , Oxidation And Green
Shape:	Wire, Ribbon, Spring, Etc
Diameter:	0.018-10.0mm
Standard:	GB, ASTM Etc
Packing:	Spool Carton Wooden Case

Description

High Purity Clean NiCr7030Wire AWG 24 26 28 30 Gauge Nichrome 70 For Electric Furnaces

High Purity Clean NiCr7030Wire AWG 24 26 28 30 Gauge Nichrome 70 Used for Electric Furnaces

Performance material		Cr10Ni90	Cr20Ni80	Cr30Ni70	Cr15Ni60	Cr20Ni35	Cr20Ni30
Composition	Ni	90	Rest	Rest	55.0~61.0	34.0~37.0	30.0~34.0
	Cr	10	20.0~23.0	28.0~31.0	15.0~18.0	18.0~21.0	18.0~21.0
	Fe	-	≤1.0	≤1.0	Rest	Rest	Rest
Maximum temperatureºC		1300	1200	1250	1150	1100	1100
Meltiing point ºC		1400	1400	1380	1390	1390	1390
Density g/cm3		8.7	8.4	8.1	8.2	7.9	7.9
Resistivity at 20ºC((μΩ·m)			1.09±0.05	1.18±0.05	1.12±0.05	1.00±0.05	1.04±0.05
Elongation at rupture		≥20	≥20	≥20	≥20	≥20	≥20
Specific heat J/g.ºC		-	0.44	0.461	0.494	0.5	0.5

Thermal conductivity KJ/m.hºC		-	60.3	45.2	45.2	43.8	43.8

Coefficient of lines expansion a×10-6/ (20~1000ºC)		-	18	17	17	19	19


Micrographic structure		-	Austenite	Austenite	Austenite	Austenite	Austenite
Magnetic properties		-	Non-magnetic	Non-magnetic	Non-magnetic	Weak magnetic	Weak magnetic

Nichrome's metallurgical structure confers them a very good plasticity when cold.

Production Standard: ASTM B603, DIN 17470, JIS C2520, GB/T1234.
Our advantage:High quality,short delivery time,small MOQ.
Characteristics:Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Usage:Resistance heating elements;Material in metallurgy;Household appliances;Mechanical manufacturing and other industries.

emperature Factors Of Electrical Resistivity
20ºC	100ºC	200ºC	300ºC	400ºC	600ºC
1	1.006	1.012	1.018	1.025	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	-
