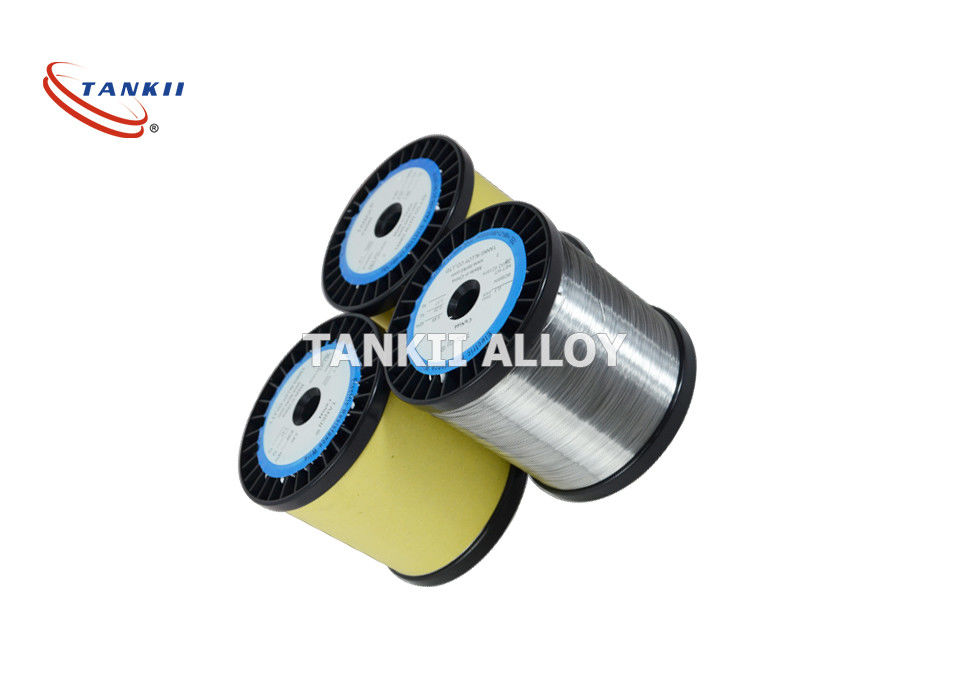

Ni80cr20/Cr20ni80/X20h80/Nikrothal 80 Nickel Chromium Alloy Nichrome 8020 Resistor Wire With ISO9001 Certificate

Name: Ni80cr20/Cr20ni80/X20h80/Nikrothal 80 Nickel Chromium Alloy Nichrome 8020 Resistor Wire With ISO9001 Certificate
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80Cr20
Price: 32.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 20-45usd/kg

Packaging Details: wooden case，box

Delivery Time: 5-30 days

Payment Terms: T/T, Western Union

Supply Ability: 20000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            X20h80 Resistor Wire, Nickel Chromium Alloy Resistor Wire, Nikrothal 80 Resistor Wire


Surface:	Bright	Material:	Nickel
Shape:	Round Wire	Usage:	Heating Element/resistance Wire
Delivery:	Depends On The Quantity

Surface:	Bright
Material:	Nickel
Shape:	Round Wire
Usage:	Heating Element/resistance Wire
Delivery:	Depends On The Quantity

Description

Ni80cr20/Cr20ni80/X20h80/Nikrothal 80 Nickel Chromium Alloy Nichrome 8020 Resistor Wire With ISO9001 Certificate

Ni80cr20/Cr20ni80/X20h80/Nikrothal 80 Nickel Chromium Alloy Nichrome 8020 Resistor Wire With ISO9001 Certificate

Product Description

The material NiCr8020 with the material number 2.4869 is applied in the form of strips, sheets, tubes and wires for furnace construction components and heating conductors.

It is a nickel-chromium heating conductor alloy for operating temperatures of up to 1150 °C and often contains additives of rare earths for a higher resistance to oxidation, especially with frequent switching operations or broad temperature variations.

The resistance to atmospheric corrosion at 20 °C is high up to the upper operating temperature the resistance to air and other oxygen-containing gases as well as to nitrogen-containing low-oxygen gases is high as well, yet it is low to oxidizing as well as reducing gases containing sulphur.

The resistance to carbonizing is high. Application for industrial electric furnaces, enamelling furnaces, household appliances, night-current storage space-heaters.

Chemical Content(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.03	0.02	0.015	0.60	0.75~1.60	20.0~23.0	Bal.	Max 0.50	Max 1.0	-

Mechanical Properties of nichrome wire

Max Continuous Service Temperature:	1200ºC
Resisivity 20ºC:	1.09 ohm mm2/m
Density:	8.4 g/cm3
Thermal Conductivity:	60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion:	18 α×10-6/ºC
Melting Point:	1400ºC
Elongation:	Min 20%
Micrographic Structure:	Austenite
Magnetic Property:	nonmagnetic

Temperature Factors Of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC
1	1.006	1.012	1.018	1.025	1.026	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1200ºC	1300ºC
1.01	1.008	1.01	1.014	1.021	1.025	-

Regular size of Nickel alloy wire :

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Bright and white wire--0.025mm~3mm

Pickling wire:1.8mm~10mm

Oxidized wire:0.6mm~10mm

Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm

Ni80cr20/Cr20ni80/X20h80/Nikrothal 80 Nickel Chromium Alloy Nichrome 8020 Resistor Wire With ISO9001 Certificate 0
