Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: TKN66
Payment & Shipping Terms
Minimum Order Quantity: 100 KG
Price: negotiable
Packaging Details: Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Tons per month
Model NO.: |
TKN66 |
Application: |
Heater Element |
Nominal Composition: |
NI 70% |
Specification: |
0.10-10.00mm |
Origin: |
China |
HS Code: |
750522 |
Production Capacity: |
300 Ton/Month |
Resistivity: |
1.17 |
Model NO.: |
TKN66 |
Application: |
Heater Element |
Nominal Composition: |
NI 70% |
Specification: |
0.10-10.00mm |
Origin: |
China |
HS Code: |
750522 |
Production Capacity: |
300 Ton/Month |
Resistivity: |
1.17 |

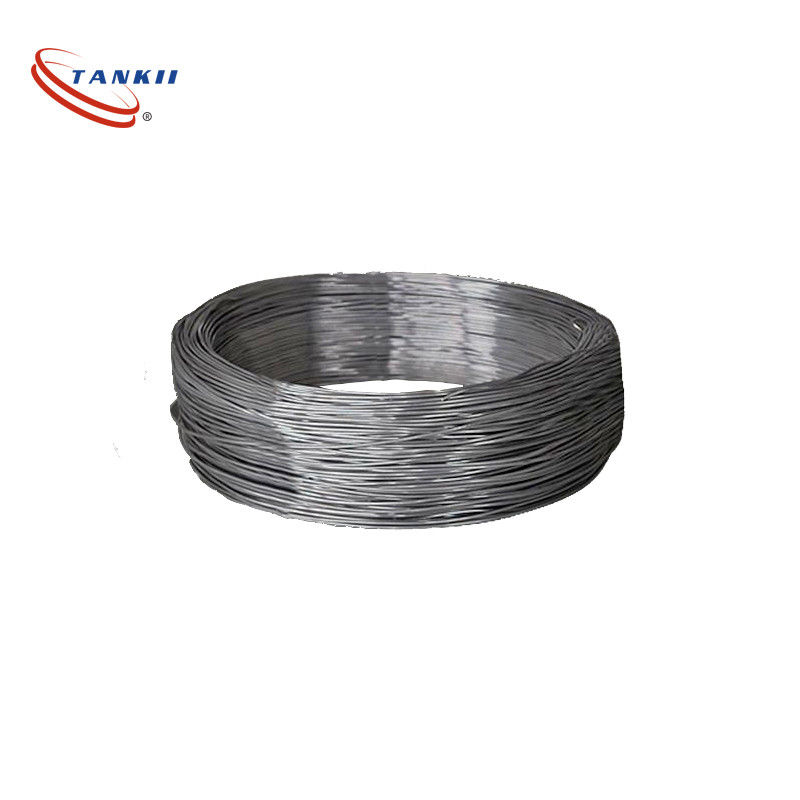

TKN66 is an austenitic nickel-chromium alloy with a maximum operating temperature of 1200°C. This alloy has a low nickel content and a low temperature coefficient of resistivity. It can be used to replace alloys with higher nickel content. If nickel-chromium 80/20 is used for metal sheathed tubular electric heating elements, it can achieve the same service life as nickel-chromium 80/20.
Chemical Composition and Propertes:
Propertes/Grade |
TKN66 |
|
Main Chemical Composition(%) |
Ni |
Bal. |
Cr |
21-23 |
|
Fe |
8-10 |
|
Maximum operating temperature |
1200 |
|
Resistivity at 20ºC (μ Ω · m) |
1.17 |
|
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
| Chemical Composition and Main Properties of Nichrome wire | ||||||
| Properties Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition | Ni | Balance | Balance | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Balance | Balance | Balance | |
| Max Continuous Service Temperature(oC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resisivity 20oC (Ω mm2/m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity(KJ/m@ h@ oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α × 10-6/oC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | Weak magnetic | Weak | |
