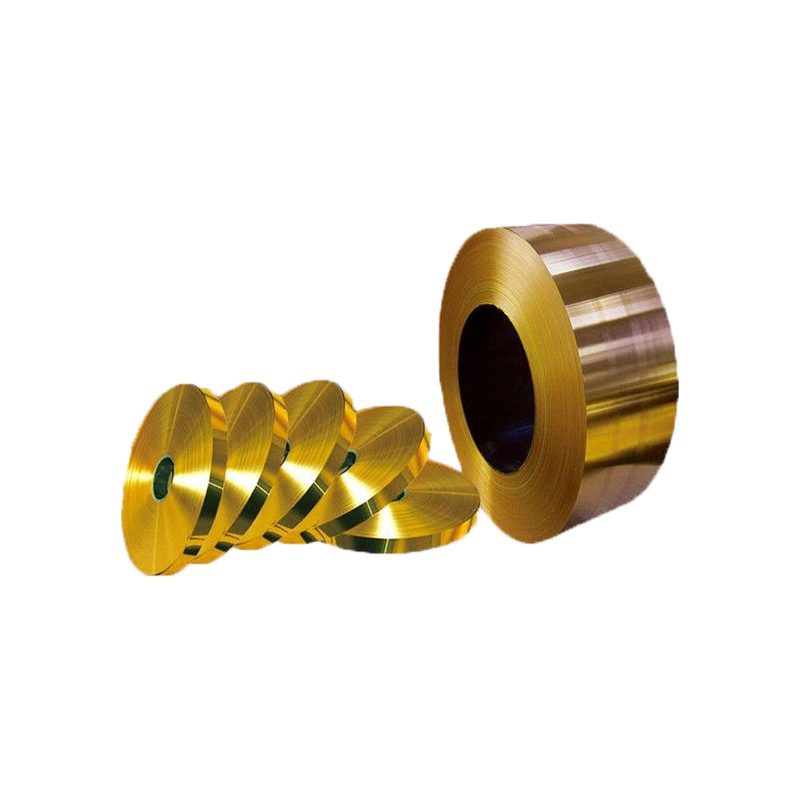

Phosphor Bronze Strip C51100 C51000 C51900 C52100 C54400 C53400 C50500 C52400

Name: Phosphor Bronze Strip C51100 C51000 C51900 C52100 C54400 C53400 C50500 C52400
Brand: TANKII
SKU: C52400
Rating: 5 (192 reviews)

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001 SGS

Model Number: C52400

Payment & Shipping Terms

Minimum Order Quantity: 100 KG

Price: negotiable

Packaging Details: Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    C53400 Phosphor Bronze strip, C52400 Phosphor Bronze strip, C50500 Phosphor Bronze strip


Material:	C52400	Thickness:	0.05mm Min.
Width:	1.0mm-6100.0mm	Alloy:	Copper Tin Alloy
Shape:	Strip， Coil， Plate	Sample Order:	Accepted

Material:	C52400
Thickness:	0.05mm Min.
Width:	1.0mm-6100.0mm
Alloy:	Copper Tin Alloy
Shape:	Strip， Coil， Plate
Sample Order:	Accepted

Description

Phosphor Bronze Strip C51100 C51000 C51900 C52100 C54400 C53400 C50500 C52400

C52400

C52400 is a copper-tin alloy that contains approximately 10% tin (Sn) and the remaining balance being copper (Cu). It falls under the category of tin bronze alloys, also known as Phosphor Bronzes. The alloy is also sometimes referred to as CuSn10, which is its designation according to the Unified Numbering System (UNS).

C52400 exhibits a combination of good mechanical properties, high wear resistance, and excellent corrosion resistance. It is often chosen for applications that require high strength and good frictional properties. The addition of tin to copper imparts increased hardness and wear resistance to the alloy.

C52400 strips are commonly used in a variety of industries and applications. Some typical uses include electrical connectors, bushings, bearings, thrust washers, gears, and valve components. The alloy's properties make it suitable for applications where low friction, high load-bearing capacity, and resistance to wear and corrosion are required.

It's important to note that specific mechanical and chemical properties, as well as manufacturing standards, may vary depending on the specific supplier or industry requirements. Therefore, if you have more specific requirements or need detailed information, it is recommended to consult the relevant technical specifications or reach out to the manufacturer for accurate and up-to-date information.

CHEMICAL COMPOSITION

	Sn%	P%	Cu%
Nominal Composition			Bal.
Min	9.0	0.03
Max	11.0	0.35

PHYSICAL PROPERTIES

Density g/cm3	8.78
Conductivity at 20°C %IACS	10
Elastic Modulus GPa	110
Poisson's ratio	0.33
Thermal expansion coefficient 10-6/ K	18.4

MECHANICAL PROPERTIES

State	Yield strength	Tensile strength	Elongation	Hardness
	Mpa	MPa	A50%	HV
R650	≥550	650-750	≥12	200-240
R750	≥650	750-850	≥10	230-270
R850	≥750	850-950	≥5	250-300
R950	≥870	≥950	≥1	≥270
R1000	≥930	≥1000	-	≥290

Bending performance

Bending thickness: ≤0.5 mm, bending width: 10 mm

State	90° R/T		180° R/T
	GW	BW	GW	BW
R650	1	1	1.5	1.5
R750	1.5	2	2	2.5
R850	2	2.5	3	4
R950	-	-	-	-
R1000	-	-	-	-

Alloy System	designation	UNS	EN	JIS	GB (China)
Cu	TK11000	C11000	Cu-ETP	C1100	T2
CuCr/Zr	TK15100	C15100	CuZr0.1	C1510	TZr0.1
	TK18160	C18160	CuCr0.5Zr	—
	TK18150	C18150	CuCr1Zr	—	TCr1-0.15
CuCrSiTi	TK18070	C18070	CuCrSiTi	—	TCr0.3-0.2- 0.05
CuNiSnCrTi	TK18090	—	—	—
CuNiP	TK19000	C19000	CuNi1P	—
CuTi	TK19920	C19920	—	—	—
CuFe	TK19210	C19210	CuFe0.1P	C1921	TFe0.1
CuFe	TK19400	C19400	CuFe2P	C1940	TFe2.5
CuNiSi	TK19005	C19005	—	—	—
	TK19010	C19010	CuNiSi	—	—
	TK70260	C70260	CuNi2Si	C7026	BSi2-0.45
	TK70250	C70250	CuNi3SiMg	C7025	BSi3.2-0.7
	TK70250HS	C70250	CuNi4SiMg	C7025	—
CuNiCoSi	TK70318	C70318	CuNi3CoSi	—	—
Special Brass	TK42300	C42300	CuZn10Sn1NiSi	—	—
Special Brass	TK42500	C42500	CuSn3Zn9	—	HSn88-2
CuSn / Bronze	TK14415	C14415	CuSn0.15	—	TSn0.12
	TK51000	C51000	CuSn5	C5102	QSn5-0.2
	TK51100*	C51100	CuSn4	C5111	QSn4-0.3
	TK51900*	C51900	CuSn6	C5191	QSn6-0.2
	TK52100*	C52100	CuSn8	C5210	QSn8-0.3

Phosphor Bronze Strip C51100 C51000 C51900 C52100 C54400 C53400 C50500 C52400 0
