Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: DIN, ASTM, JIS
Model Number: Karma
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: 15-30$
Packaging Details: spool ,coil, or as clients' requirement
Delivery Time: 25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000T/month
Application: |
Chemical, Aerospace,Electricity Field, Etc |
Conductor Material: |
Nickel, Chromium |
Type: |
Low Voltage |
Insulation Material: |
Pvc |
Jacket: |
Rubber |
Color: |
As Required |
Insulation: |
Silicone Rubber |
Rated Voltage: |
300/500v |
Conductor Type: |
Solid |
Standard: |
IEC |
Application: |
Chemical, Aerospace,Electricity Field, Etc |
Conductor Material: |
Nickel, Chromium |
Type: |
Low Voltage |
Insulation Material: |
Pvc |
Jacket: |
Rubber |
Color: |
As Required |
Insulation: |
Silicone Rubber |
Rated Voltage: |
300/500v |
Conductor Type: |
Solid |
Standard: |
IEC |

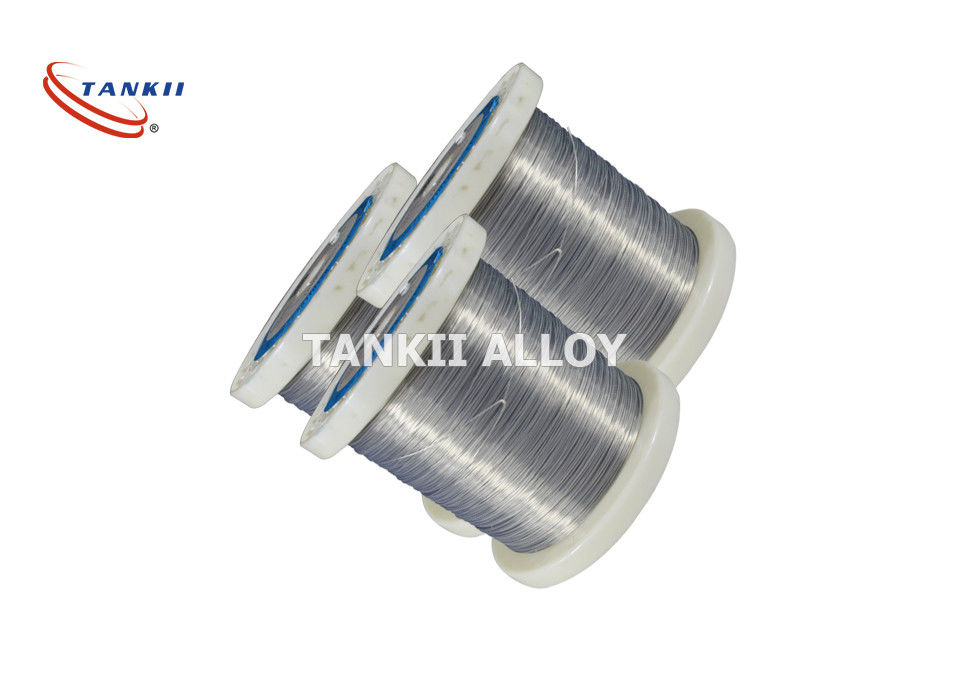

Evanohm Precision Micro-Resistance Element & Strain Gauge Electric Wire Resistance
Chemical Content %: 19-21.5Cr 2.7-3.2Al 0.5-1.5Mn 2.0-2.3Cu Ni Bal.
Diameter 0.025mm~20mm
Resisivity: 1.33 ohm mm²/m
Max continuous service temperature: 1400℃
Density: 8.1g/cm3
Melting point: 1400℃
Shanghai Tankii Alloy Material Co., Ltd.
Chemical Composition and Properites:
| Properties/Grade | NiCr 80/20 | NiCr 70/30 | NiCr 60/15 | NiCr 35/20 | NiCr 30/20 | |
| Main Chemical Composition(%) | Ni | Bal. | Bal. | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤ 1.0 | ≤ 1.0 | Bal. | Bal. | Bal. | |
| Max Working Temperature(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μ Ω · m) |
1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density(g/cm3) | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
| Thermal Conductivity (KJ/m· h· ºC) |
60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of Thermal Expansion(α * 10-6/ºC) | 18 | 17 | 17 | 19 | 19 | |
| Melting Point(ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation(%) | > 20 | > 20 | > 20 | > 20 | > 20 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
Company Profile:
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.
Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
