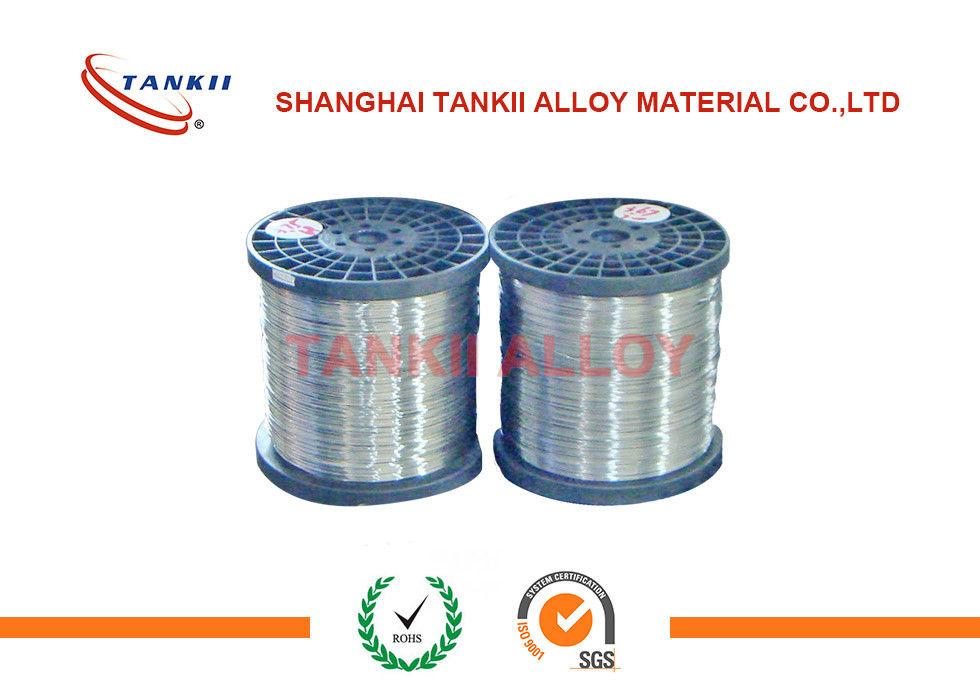

0.203mm 0.3mm 0.8mm Thermocouple Bare Wire for Extension Cable K J T Stranded Wire

Product Details

Place of Origin: SHANGHAI

Brand Name: TANKII

Certification: ISO9001-2008

Model Number: K, J, E, T, N

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: Negotiation

Packaging Details: ON SPOOL OR IN COILS

Supply Ability: 10MT/MONTH

Get Best Price
Contact Now
Specifications
Highlight:

bare wire thermocouple

,

thermocouple lead wire

Description
0.203mm 0.3mm 0.8mm Thermocouple Bare Wire for Extension Cable K J T Stranded Wire

TYPE N  (NiCrSi Vs.NiCrMg) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.





1. Chemical Composition



Material

Chemical composition (%)

Ni

Cr

Si

Mg

Al

NP(NiCrSi)

bal

13.7-14.7

1.2-1.6

<0.01



NN(NiCrMg)

bal

<0.02

4.2-4.6

0.5~1.5







2. Physical properties and Mechnical properties







Material





Density(g/cm3)



Melting point℃)



Tensile Strength(Mpa)



Volume resistivity(μΩ.cm)



Elongation rate (%)

NP(NiCrSi)

8.5

1410

>620

100.0 (20℃)

>30

NN(NiCrMg)

8.6

1340

>550

33.0(20℃)

>35



3. EMF Value range at different temperature



Material

EMF value Vs Pt(μV)

100℃

200℃

300℃

400℃

500℃

600℃

NP(NiCrSi)

1755~1813

3910~3976

6313~6383

8880~8959

11552~11654

14307~14433

NN(NiCrMg)

975~1005

1954~1986

2975~3011

4035~4075

5120~5170

6212~6274



EMF value Vs Pt(μV)

700℃

800℃

900℃

1000℃

1100℃



17129~17275

20010~20178

22951~23139

25943~26149

28972~29194



7288~7362

8318~8402

9281~9373

10159~10261

10948~11060
