Thermostat Bimetallic Strip 5J20110 Precision Alloy for Control Thermistor

Name: Thermostat Bimetallic Strip 5J20110 Precision Alloy for Control Thermistor
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 5J20110/ TANKII 1200/ ТБ 2013
Price: 60.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Thermostat Bimetallic Strip

Certification: ISO 9001 and RoHS

Model Number: 5J20110/ TANKII 1200/ ТБ 2013

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: USD 40~80/KG

Packaging Details: Coil, Carton and Wooden Case

Payment Terms: T/T, Western Union

Supply Ability: 500KG per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                            soft magnetic alloy, kovar alloy


Shape:	Stirp	Standard:	GB/T 4461-1992
Condition:	Bright

Shape:	Stirp
Standard:	GB/T 4461-1992
Condition:	Bright

Description

Thermostat Bimetallic Strip 5J20110 Precision Alloy for Control Thermistor

Thermostat Bimetallic Strip 5J20110 Precision Alloy for Control Thermistor

Name: 5J20110/ TANKII 1200/ ТБ 2013

Application: 5J20110 with high thermal sensitivity performance and higher resistivity, but the elastic modulus and low allowable stress can increase the sensitivity of the instrument, reducing the size and increasing the force.

Grade	5J20110
High expansion layer	Mn75Ni15Cu10
Low expansion layer	Ni36

Description:

Chemical composition(%)

Grade	C	Si	Mn	P	S	Ni	Cr	Cu	Fe
Ni36	≤0.05	≤0.3	≤0.6	≤0.02	≤0.02	35~37	-	-	Bal.

Grade	C	Si	Mn	P	S	Ni	Cr	Cu	Fe
Mn75Ni15Cu10	≤0.05	≤0.5	Bal.	≤0.02	≤0.02	14~16	-	9~11	≤0.8

Physical properties

Density (g/cm³): 7.7
Allowable temperature (℃): -70~ 200
Linear temperature (℃): -20~ 150
Electrical resistivity (μΩ*m): 1.13 ±5% (20℃)
Thermal conductivity ( W/m. ℃): 6
Bending K / 10^-6 ℃^-1(20~135℃): 20.8
Elastic Modulus, E/GPa 113~142

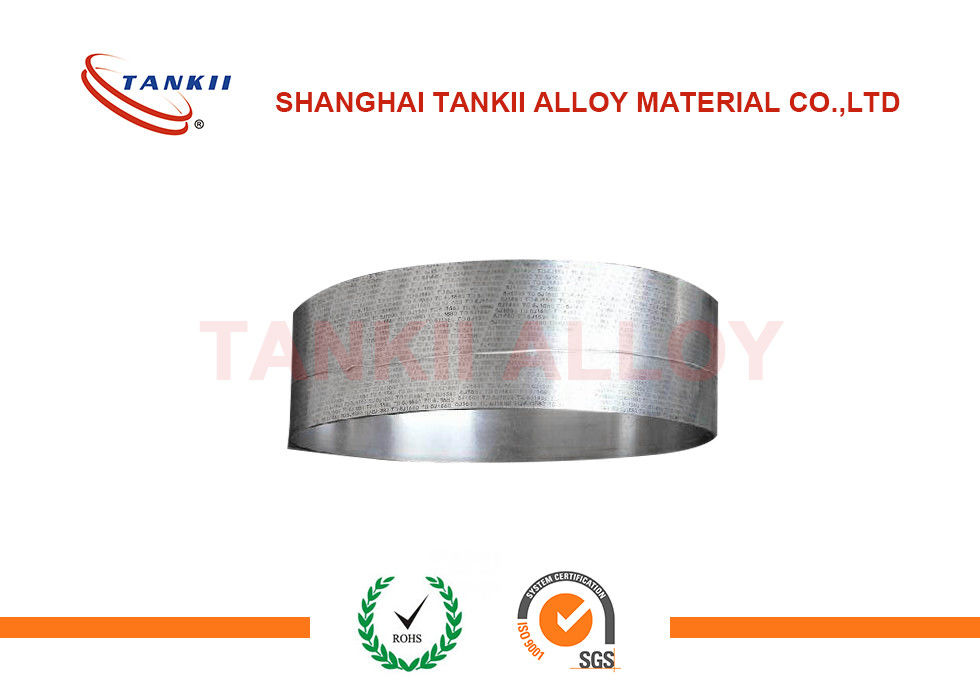

Thermostat Bimetallic Strip 5J20110 Precision Alloy for Control Thermistor 0
